WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

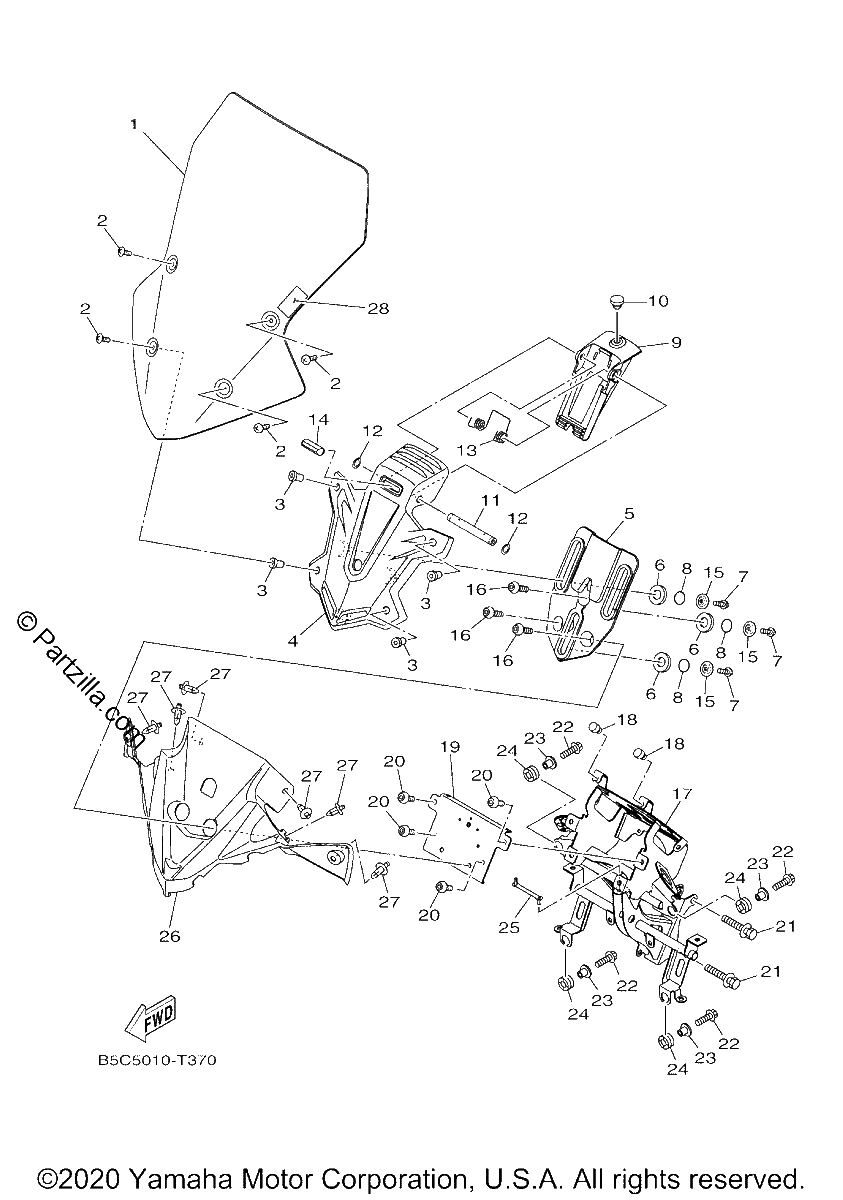

Diagrama de WINDSHIELD

Repuestos

#1
B5C-28381-00-00
Windshield
$408.32¢204 159
1
#2
90150-05024-00
SCREW, ROUND HEAD
$3.13¢1 564
1
#3
90179-05003-00
NUT
$5.37¢2 685
1
#4
B5C-2831R-00-00
STAY, MAIN 1
$91.45¢45 724
1
#5
B5C-2831T-00-00
STAY, SUPPORT 1
$49.65¢24 823
1
#6
B5C-28319-00-00
WASHER
$3.68¢1 840
1
#7
92017-05016-00
bolt
$5.89¢2 944
1
#8
93210-14MF4-00
O-Ring
$6.64¢3 318
1
#9
B5C-2836X-00-00
KNOB, 1
$22.97¢11 483
1
#10
90338-07010-00
PLUG
$5.12¢2 559
1
#11
B5C-2835B-00-00
SHAFT, 1
$32.83¢16 416
1
#12
99009-09800-00
Circlip
$0.54¢270
1
#13
B5C-28388-00-00
SPRING
$4.97¢2 484
1
#14
B5C-2836T-00-00
DAMPER, locating 1
$5.55¢2 777
1
#15
B5C-28373-00-00
Collar
$15.55¢7 774
1
#16
90111-06029-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#17
B5C-28356-00-00
STAY 1
$154.87¢77 435
1
#18
90338-06007-00
PLUG
$9.12¢4 560
1
#19
B5C-28361-00-00
PLATE, FRONT
$24.08¢12 041
1
#20
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#21
90119-08179-00
BOLT, WITH WASHER
$1.36¢678
1
#22
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#23
90387-07391-00
COLLAR
$8.49¢4 244
1
#24
3C3-83513-00-00
Damper
$7.04¢3 519
1
#25
90464-09026-00
CLAMP
$4.43¢2 214
1
#26
B5C-2836M-00-00
PANEL, INNER 3
$21.68¢10 839
1
#27
90269-07007-00
RIVET
$3.68¢1 840
1
#28
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
1
