STEERING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

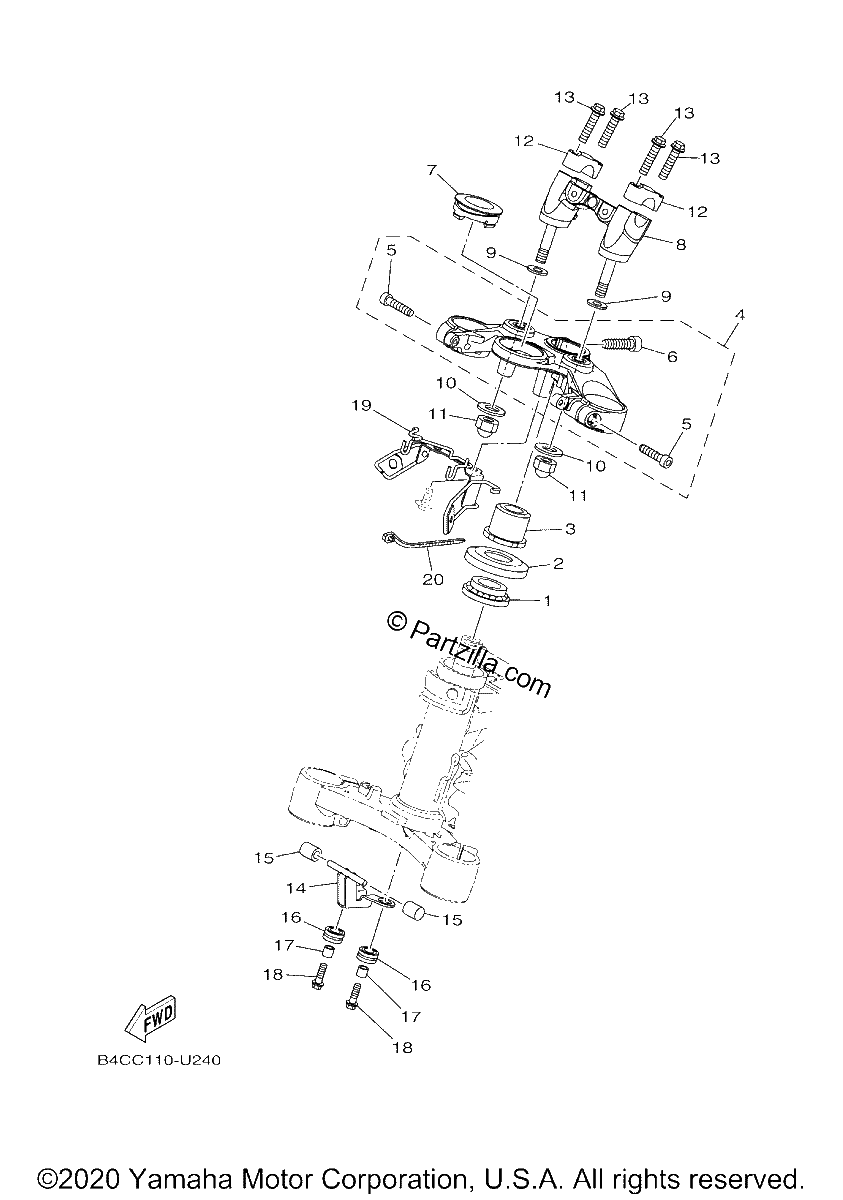

Diagrama de STEERING

Repuestos

#1
93399-99931-00
BEARING
$60.44¢30 219
1
#2
1W1-23416-00-00
COVER, BALL RACE 2
$30.76¢15 381
1
#3
1WS-23357-00-00
Nut
$46.42¢23 213
1
#4
BC6-23430-00-00
HANDLE CROWN COMP.
$298.90¢149 450
1
#5
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
1
#6
91314-10035-00
bolt
$4.60¢2 300
1
#7
36P-82552-00-00
CAP, SWITCH
$14.98¢7 488
1
#8
1WS-23442-00-P0
HOLDER, HANDLE LOW
$117.26¢58 631
1
#9
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#10
90201-10043-00
WASHER, plate
$2.23¢1 113
1
#11
90176-10003-00
NUT, CROWN
$8.64¢4 319
1
#12
1E6-23441-10-P0
HOLDER, HANDLE UPPER
$25.99¢12 994
1
#13
95022-08035-00
Bolt, Flange
$3.88¢1 938
1
#14
B4C-2334G-00-00
BRACKET 1
$18.43¢9 213
1
#15
1WS-84527-00-00
Damper
$1.89¢944
1
#16
3C3-83513-00-00
Damper
$7.65¢3 825
1
#17
90387-06026-00
COLLAR
$8.24¢4 119
1
#18
95D37-06025-00
BOLT, FLANGE DEEP RECESS
$1.09¢544
1
#19
B4C-2334H-10-00
BRACKET 2
$75.70¢37 850
1
#20
90464-25004-00
Clamp
$2.81¢1 406
1
