INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

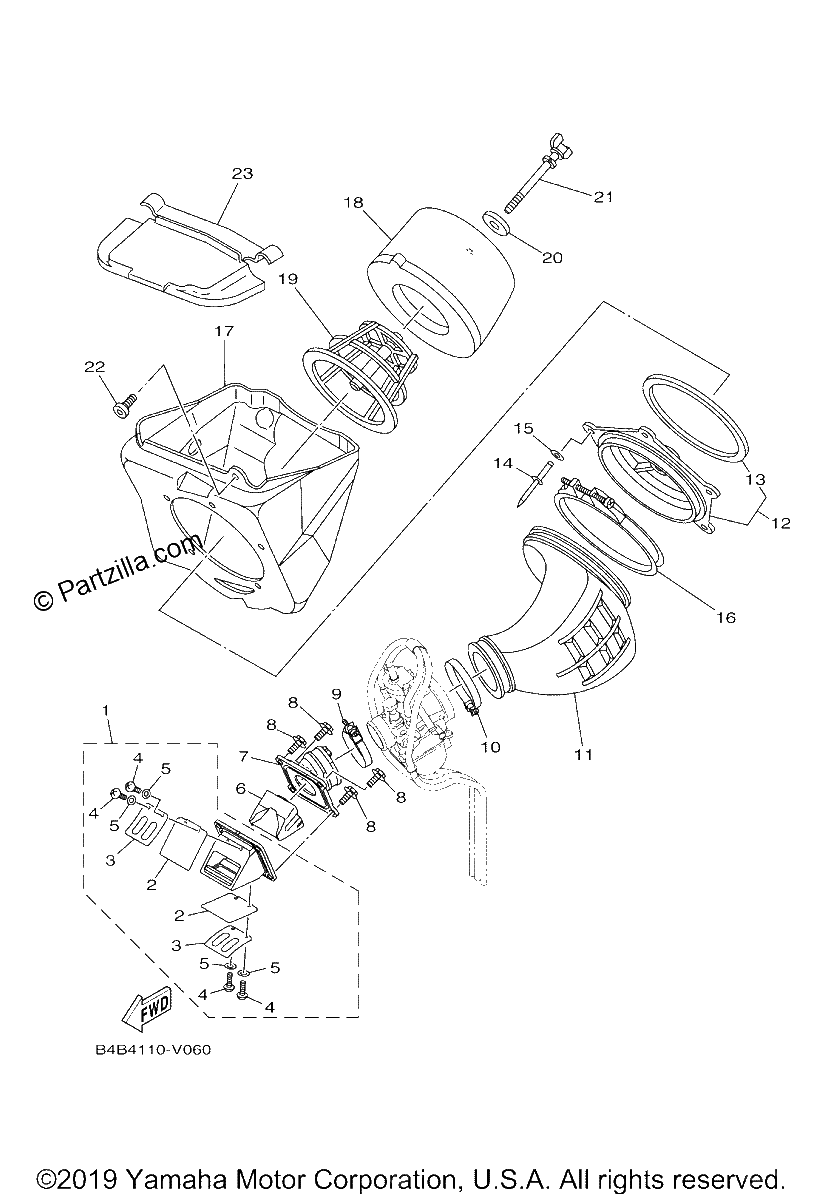

Diagrama de INTAKE

Repuestos

#1
BR8-13610-00-00
Reed Valve Assy
$110.70¢55 350
1
#2
BR8-13613-00-00
REED, VALVE
$11.36¢5 681
1
#3
4ES-13616-00-00
STOPPER, REED VALVE
$15.02¢7 512
1
#4
98580-03006-00
SCREW, PAN HEAD
$8.24¢4 119
1
#5
92990-03100-00
WASHER, SPRING
$7.34¢3 669
1
#6
BR8-13625-00-00
SPACER, REED VALVE
$16.10¢8 050
1
#7
BR8-13565-00-00
JOINT, carburetor
$55.00¢27 500
1
#8
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#9
4TR-13474-02-00
BAND (replaces 4TR-13474-01-00)
$11.35¢5 675
1
#10
90450-56001-00
HOSE CLAMP ASSY
$17.59¢8 794
1
#11
5PA-14453-00-00
JOINT, AIR CLEANER 1
$153.93¢76 963
1
#12
5PA-14459-00-00
HOLDER, GUIDE
$43.46¢21 731
1
#13
4ES-14462-00-00
SEAL
$13.31¢6 656
1
#14
90267-48138-00
RIVET, BLIND
$3.11¢1 556
1
#15
90201-043H7-00
WASHER, PLATE
$3.04¢1 519
1
#16
90450-99064-00
HOSE CLAMP ASSY
$44.44¢22 219
1
#17
5PA-14411-10-00
CASE, AIR CLEANER 1
$234.93¢117 463
1
#18
5PA-14451-00-00
ELEMENT, AIR CLEANER
$40.65¢20 325
1
#19
5PA-14458-00-00
GUIDE
$31.32¢15 663
1
#20
90209-06096-00
WASHER
$7.81¢3 906
1
#21
90122-06010-00
BOLT, WING
$10.91¢5 456
1
#22
90109-065F3-00
BOLT
$8.01¢4 006
1
#23
5PA-14417-00-00
COVER 1 | AP
$10.85¢5 425
1
