REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

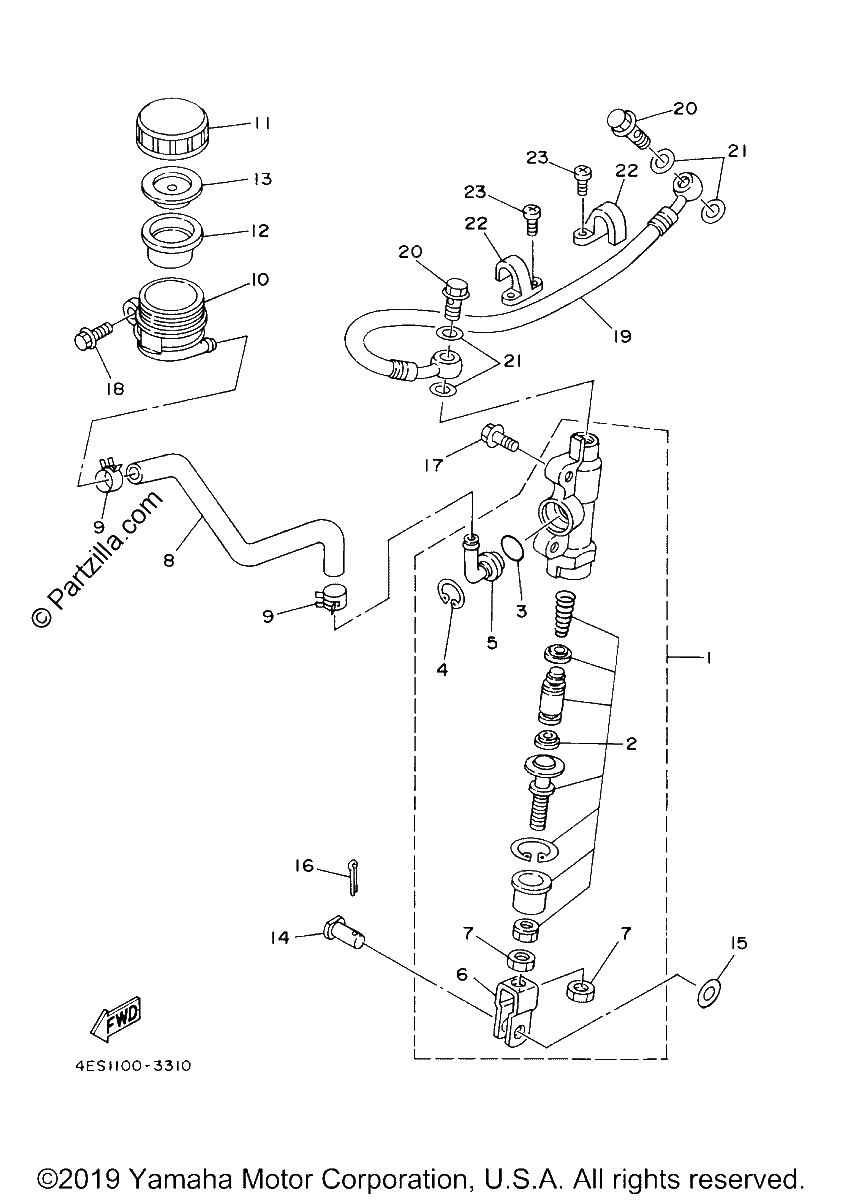

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
4ES-2583V-00-00
RR. MASTER CYLINDER ASSY.
$152.79¢76 395
1
#2
1FK-W0042-50-00
CYLINDER KIT, MASTER
$69.56¢34 782
1
#3
93210-15566-00
O-RING
$6.32¢3 162
1
#4
2VN-25866-00-00
CIRCLIP
$6.51¢3 254
1
#5
2VN-2582A-50-00
JOINT
$21.48¢10 741
1
#6
2YK-27222-00-00
JOINT
$21.75¢10 873
1
#7
95337-08600-00
NUT(6TA) (replaces 95307-08600-00)
$6.75¢3 375
1
#8
4ES-25895-01-00
Hose, Reservoir
$29.81¢14 904
1
#9
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#10
4EW-25894-00-00
TANK, RESERVOIR
$23.61¢11 805
1
#11
3XP-25852-50-00
CAP, RESERVOIR
$20.14¢10 068
1
#12
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$21.50¢10 753
1
#13
2VN-25855-00-00
BUSH,DIAPHRAGM
$10.43¢5 215
1
#14
90240-08124-00
PIN, CLEVIS
$6.22¢3 111
1
#15
90201-08083-00
WASHER, PLATE
$6.88¢3 439
1
#16
91490-16020-00
PIN, COTTER
$6.74¢3 370
1
#17
90105-06090-00
BOLT, FLANGE
$6.82¢3 410
1
#18
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$0.99¢494
1
#19
B4B-25873-00-00
HOSE, brake 2
$66.77¢33 384
1
#20
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#21
90430-10005-00
GASKET
$7.72¢3 858
1
#22
1C3-25886-50-00
HOLDER, BRAKE HOSE
$12.21¢6 106
1
#23
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
