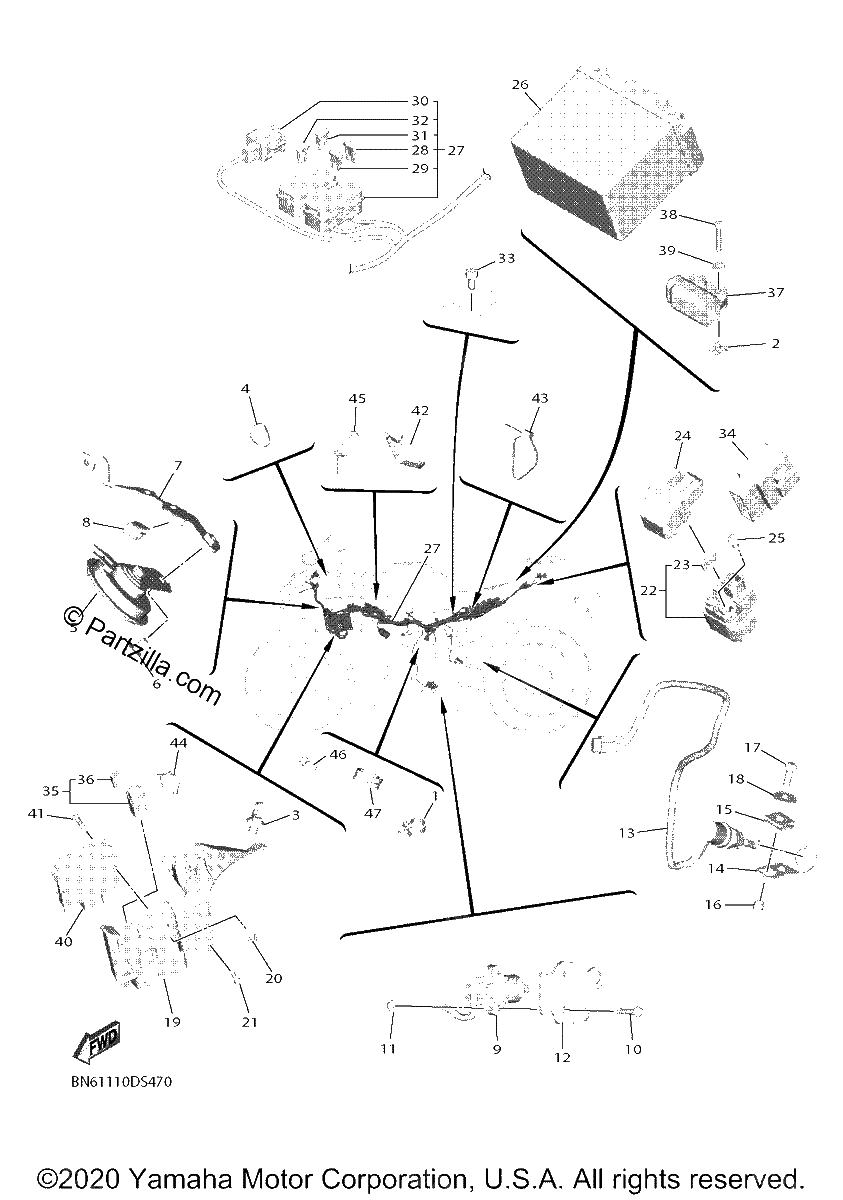

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP
$2.40¢1 200
#2
NUT, SPRING
$7.03¢3 513
#3
Clamp
$1.82¢913
#4
BAND
$4.91¢2 456
#5
HORN
$79.01¢39 506
#6
BLOT, FLANGE DEEP RECESS
$7.41¢3 706
#7
BRACKET, HORN
$32.26¢16 131
#8
Damper
$1.54¢769
#9
SWITCH, SIDE STAND
$121.42¢60 713
#10
BOLT, BUTTON HEAD
$4.00¢2 000
#11
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
#12
BRACKET, SENSOR 1
$36.48¢18 238
#13
STOP SWITCH ASSY
$40.85¢20 425
#14
STAY, STOP SWITCH
$5.72¢2 863
#15
GROMMET
$10.18¢5 088
#16
COLLAR
$9.13¢4 563
#17
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#18
WASHER PLAIN
$0.69¢344
#19
BRACKET 5
$59.57¢29 787
#20
NUT, SPRING
$7.26¢3 631
#21
BOLT, FLANGE DEEP RECESS
$0.30¢150
#22
STARTER RELAY ASSY
$63.35¢31 675
#23
FUSE (30A-BL)
$7.41¢3 706
#24
COVER, LEAD WIRE
$4.84¢2 419
#25
BOLT, FLANGE
$7.46¢3 731
#26
BATTERY YTZ7S(F) - FA
$246.70¢123 350
#27
WIRE HARNESS ASSY
$1788.35¢894 175
#28
FUSE (15A)
$4.44¢2 219
#29
FUSE (10A)
$7.75¢3 875
#30
FUSE (50A)
$17.01¢8 506
#31
FUSE (7.5A-BL)
$7.08¢3 538
#32
FUSE (2A-BL)
$8.43¢4 213
#33
BOLT
$2.23¢1 113
#34
RELAY ASSY (replaces 5VK-81950-40-00)
$70.70¢35 350
#35
RELAY ASSY (1TP-00)
$15.59¢7 794
#36
HOLDER, RELAY
$8.03¢4 013
#37
SENSOR, LEAN ANGLE
$95.25¢47 625
#38
bolt
$1.84¢919
#39
WASHER,PLATE
$7.86¢3 931
#40
RECTIFIER & REGULATOR ASSY
$135.10¢67 550
#41
BOLT, BUTTON HEAD
$7.48¢3 738
#42
BAND
$4.91¢2 456
#43
BAND
$4.91¢2 456
#44
BAND
$4.91¢2 456
#45
CLAMP
$7.94¢3 969
#46
CLAMP
$1.90¢950
#47
Clamp
$7.88¢3 938
