STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

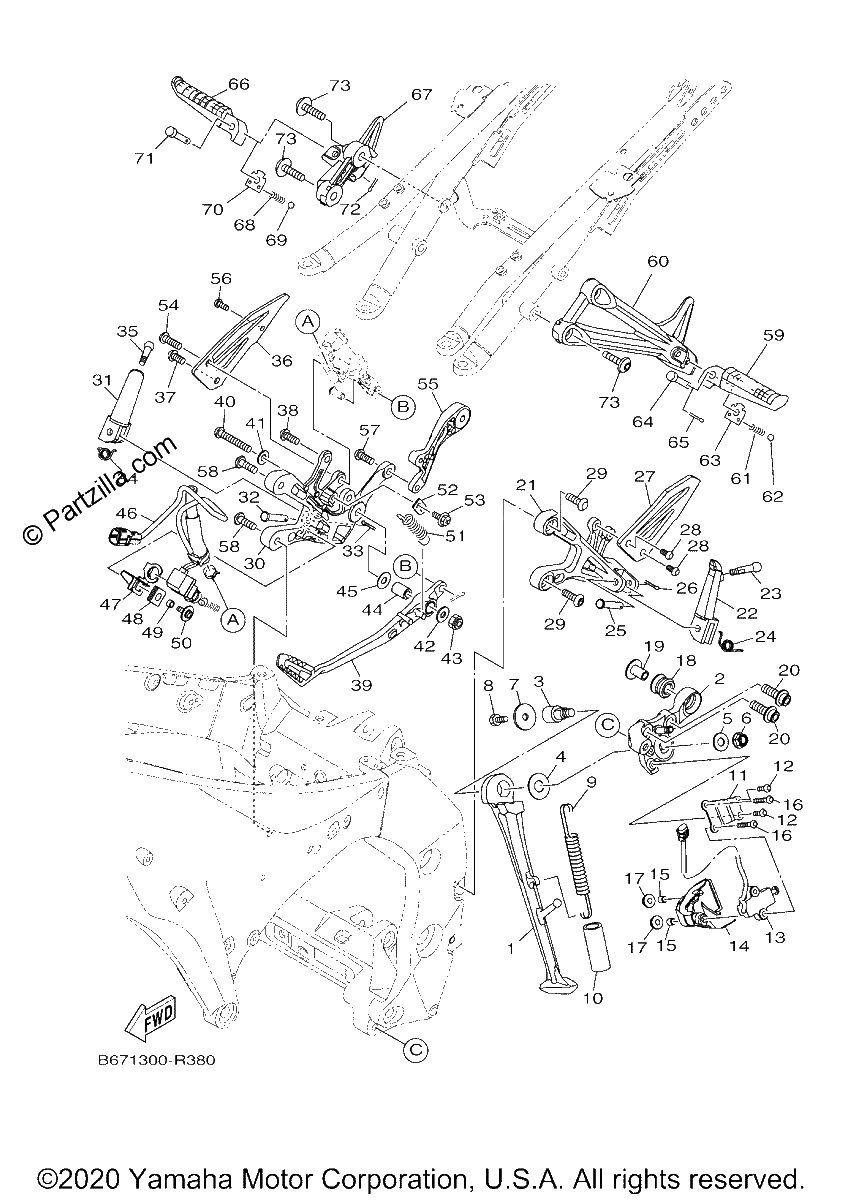

Diagrama de STAND FOOTREST

Repuestos

#1
B67-27311-00-00
STAND, SIDE
$267.25¢133 624
1
#2
B67-27321-00-00
BRACKET, side stand
$253.54¢126 770
1
#3
2C0-27351-00-00
GUIDE, SIDE STAND
$60.89¢30 446
1
#4
90201-146F9-00
WASHER, PLATE
$5.47¢2 737
1
#5
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#6
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#7
90201-08050-00
WASHER, PLATE
$5.37¢2 685
1
#8
97017-08020-00
BOLT
$6.99¢3 496
1
#9
90506-20032-00
SPRING, TENSION
$14.03¢7 015
1
#10
90445-197J2-00
HOSE (L60)
$4.30¢2 151
1
#11
14B-27961-00-00
BRACKET, SENSOR 1
$10.02¢5 008
1
#12
92012-05016-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#13
2CR-82566-00-00
SWITCH, SIDE STAND
$87.73¢43 867
1
#14
2CR-27406-00-00
COVER ASSY
$24.62¢12 311
1
#15
90387-05025-00
COLLAR
$5.66¢2 829
1
#16
92012-05030-00
BOLT, BUTTON HEAD
$5.69¢2 846
1
#17
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#18
5VY-14747-00-00
DAMPER, MUFFLER
$13.48¢6 739
1
#19
90387-08021-00
COLLAR
$9.33¢4 663
1
#20
90110-10026-00
BOLT, HEXAGON SOCKET
$10.61¢5 307
1
#21
B67-27442-00-00
BRACKET 2
$104.99¢52 497
1
#22
3XV-27451-02-00
Footrest
$20.55¢10 275
1
#23
90109-08202-00
BOLT (replaces 90109-08231-00)
$4.48¢2 242
1
#24
90508-18134-00
SPRING, TORSION
$6.76¢3 381
1
#25
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#26
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#27
B67-27445-00-00
PLATE 1
$35.37¢17 687
1
#28
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#29
90109-085G6-00
BOLT
$2.08¢1 041
1
#30
B67-27443-00-00
BRACKET 3
$121.80¢60 898
1
#31
3XV-27461-02-00
FOOTREST
$23.85¢11 925
1
#32
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#33
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#34
90508-18135-00
SPRING, TORSION
$8.10¢4 048
1
#35
90109-08202-00
BOLT (replaces 90109-08231-00)
$4.48¢2 242
1
#36
B67-27446-00-00
PLATE 2
$34.10¢17 049
1
#37
92012-08016-00
BOLT, BUTTON HEAD
$7.65¢3 824
1
#38
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#39
B67-27211-00-00
PEDAL, BRAKE
$129.64¢64 820
1
#40
92012-08050-00
BOLT, BUTTON HEAD
$2.50¢1 248
1
#41
92902-08200-00
WASHER
$0.25¢127
1
#42
90201-08048-00
WASHER, PLATE
$6.30¢3 151
1
#43
90185-08089-00
NUT, SELF-LOCKING
$8.00¢4 002
1
#44
90387-08102-00
COLLAR
$8.03¢4 013
1
#45
90201-08103-00
WASHER, PLATE
$6.21¢3 105
1
#46
B67-82530-00-00
STOP SWITCH ASSY
$83.54¢41 768
1
#47
B67-2144G-00-00
STAY, STOP SWITCH
$37.97¢18 987
1
#48
90480-12607-00
GROMMET
$9.36¢4 681
1
#49
90387-06M16-00
COLLAR
$3.83¢1 915
1
#50
90159-06082-00
SCREW, WITH WASHER
$7.08¢3 542
1
#51
90506-23008-00
SPRING, TENSION
$6.46¢3 231
1
#52
B67-27432-00-00
BRACKET 1
$3.01¢1 507
1
#53
95812-06010-00
BOLT,FLANGE (replaces 95802-06010-00)
$3.12¢1 558
1
#54
92012-08025-00
BOLT, BUTTON HEAD
$6.30¢3 151
1
#55
B67-21487-00-00
STAY, MUFFLER 3
$120.30¢60 151
1
#56
92012-06014-00
BOLT, BUTTON HEAD
$6.76¢3 381
1
#57
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#58
90109-085G6-00
BOLT
$2.08¢1 041
1
#59
3VR-27431-02-00
FOOTREST, REAR 1
$27.22¢13 610
1
#60
1RC-2741L-01-00
BRACKET 4
$66.85¢33 425
1
#61
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#62
93501-04011-00
BALL
$6.87¢3 433
1
#63
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#64
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#65
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#66
3VR-27441-02-00
FOOTREST, REAR 2
$27.29¢13 645
1
#67
B67-2742L-00-00
BRACKET 5
$68.66¢34 328
1
#68
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#69
93501-04011-00
BALL
$6.87¢3 433
1
#70
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#71
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#72
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#73
92017-08020-00
BOLT, BUTTON HEAD
$6.43¢3 214
1
