FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

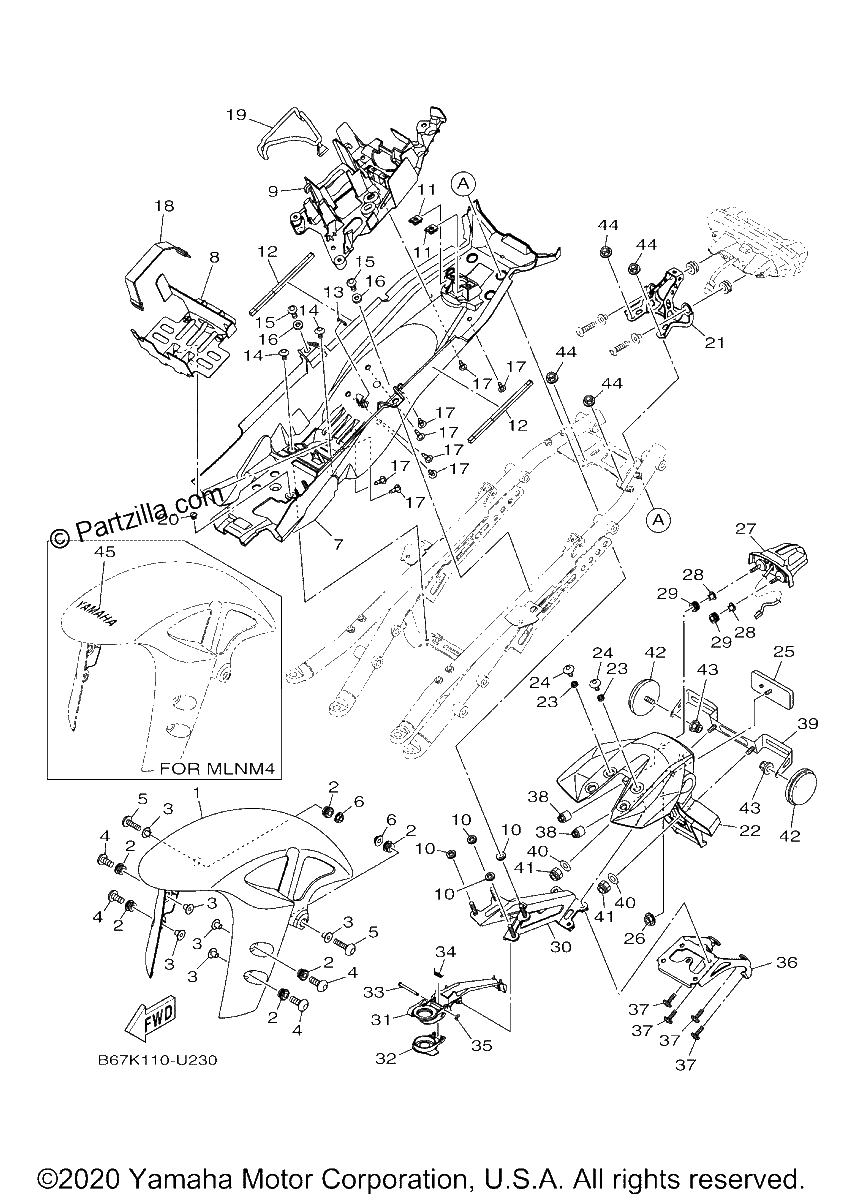

Diagrama de FENDER

Repuestos

#1
14B-21511-00-P9
FENDER, FRONT
$194.02¢97 008
1
#1
14B-21511-00-PE
FENDER, FRONT
$130.50¢65 251
1
#1
14B-21511-00-P0
FENDER, FRONT | Use for Color Black Metallic X ( SMX / 0903 )
$199.24¢99 619
1
#2
90480-12072-00
GROMMET
$7.30¢3 651
1
#3
90387-06159-00
Collar
$6.99¢3 496
1
#4
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
1
#5
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
#6
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#7
B67-8212B-00-00
BOX, BATTERY 1
$89.06¢44 528
1
#8
B67-8212C-00-00
BOX, BATTERY 2
$17.51¢8 757
1
#9
B67-2162G-00-00
PLATE 1
$23.85¢11 925
1
#10
90560-08326-00
SPACER
$3.96¢1 978
1
#11
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#12
1B7-2834E-00-00
DAMPER 1
$3.68¢1 840
1
#13
90520-01001-00
DAMPER, PLATE
$7.10¢3 548
1
#14
90109-06201-00
BOLT
$6.14¢3 070
1
#15
90269-07077-00
RIVET
$7.59¢3 795
1
#16
90202-07015-00
WASHER, PLATE
$7.31¢3 657
1
#17
90269-06008-00
RIVET
$8.10¢4 048
1
#18
133-82131-00-00
BAND, BATTERY
$23.89¢11 943
1
#19
3YX-21376-00-00
BAND, TOOL
$15.84¢7 918
1
#20
90338-07043-00
PLUG
$6.03¢3 013
1
#21
B67-2117E-00-00
BRACKET, TAILLIGHT
$51.78¢25 892
1
#22
1RC-21629-01-00
GUARD, MUD
$36.25¢18 124
1
#23
90387-06106-00
COLLAR
$5.93¢2 967
1
#24
90111-06061-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#25
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#26
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#27
B67-84745-00-00
LICENCE LIGHT UNIT ASSY
$266.59¢133 296
1
#28
90387-05042-00
COLLAR
$5.23¢2 616
1
#29
90480-11009-00
GROMMET
$0.89¢443
1
#30
B67-2164F-00-00
STAY 1
$52.42¢26 208
1
#31
B67-2163E-00-00
COVER, REAR FENDER 2
$7.64¢3 818
1
#32
1RC-2465B-00-00
CAP, ROTOR
$4.30¢2 151
1
#33
90249-03002-00
PIN
$4.94¢2 472
1
#34
90508-09007-00
SPRING, TORSION
$2.05¢1 023
1
#35
93430-02001-00
CIRCLIP
$7.31¢3 657
1
#36
1RC-21682-00-00
STAY, PLATE
$36.54¢18 268
1
#37
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#38
1RC-2622H-00-00
WEIGHT
$7.14¢3 571
1
#39
1RC-84751-00-00
BRACKET, LICENSE
$32.10¢16 048
1
#40
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#41
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#42
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#43
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#44
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#45
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
