SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

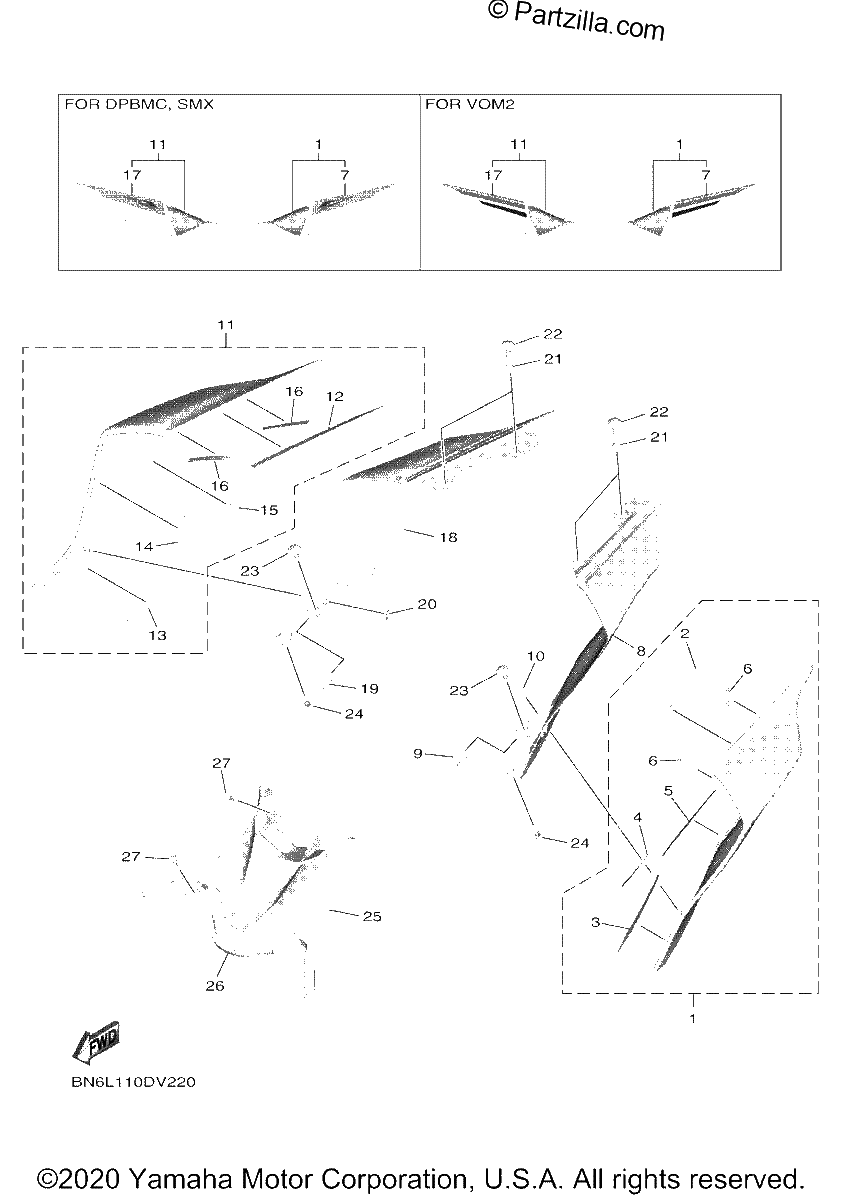

Diagrama de SIDE COVER

Repuestos

#1
BN6-W2171-70-P1
COVER, SIDE 1
$119.09¢59 547
1
#1
BN6-W2171-60-P1
COVER, SIDE 1
$115.10¢57 552
1
#1
BN6-W2171-50-P5
COVER, SIDE 1
$139.21¢69 604
1
#2
BN6-2173T-00-00
TAPE 1
$7.67¢3 835
1
#3
BN6-21566-00-00
TAPE, 1
$5.54¢2 772
1
#4
1RC-2111D-00-00
SEAL 1
$3.28¢1 639
1
#5
BN6-2111D-00-00
SEAL 1
$3.59¢1 794
1
#6
BN6-21669-00-00
SEAL
$4.77¢2 386
1
#7
BN6-2173E-40-00
GRAPHIC 1
$16.67¢8 337
1
#7
BN6-2173E-60-00
GRAPHIC 1
$12.14¢6 072
1
#7
BN6-2173E-50-00
GRAPHIC 1
$16.77¢8 384
1
#8
BN6-21731-00-00
COVER, SIDE 3
$25.46¢12 731
1
#9
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#10
90209-03274-00
WASHER
$9.18¢4 589
1
#11
BN6-W2172-70-P1
SIDE COVER 2
$121.36¢60 680
1
#11
BN6-W2172-60-P1
SIDE COVER 2
$121.36¢60 680
1
#11
BN6-W2172-50-P5
SIDE COVER 2
$118.96¢59 478
1
#12
BN6-2173U-00-00
TAPE 2
$6.81¢3 404
1
#13
BN6-21567-00-00
TAPE, 2
$5.54¢2 772
1
#14
1RC-2111D-00-00
SEAL 1
$3.28¢1 639
1
#15
BN6-2111D-00-00
SEAL 1
$3.59¢1 794
1
#16
BN6-21669-00-00
SEAL
$4.77¢2 386
1
#17
BN6-2173F-40-00
GRAPHIC 2
$16.67¢8 337
1
#17
BN6-2173F-50-00
GRAPHIC 2
$16.55¢8 274
1
#17
BN6-2173F-60-00
GRAPHIC 2
$7.90¢3 950
1
#18
BN6-21741-00-00
COVER, SIDE 4
$21.69¢10 844
1
#19
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#20
90209-03274-00
WASHER
$9.18¢4 589
1
#21
90387-06069-00
COLLAR
$7.28¢3 640
1
#22
90111-06086-00
BOLT, HEX. SOCKET BUTTON
$5.44¢2 720
1
#23
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#24
90269-06018-00
RIVET
$2.05¢1 023
1
#25
BN6-2171E-00-00
COVER, SIDE 5
$60.89¢30 446
1
#26
4C8-21747-00-00
DAMPER
$6.51¢3 254
1
#27
90269-05008-00
RIVET
$2.78¢1 392
1
