WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

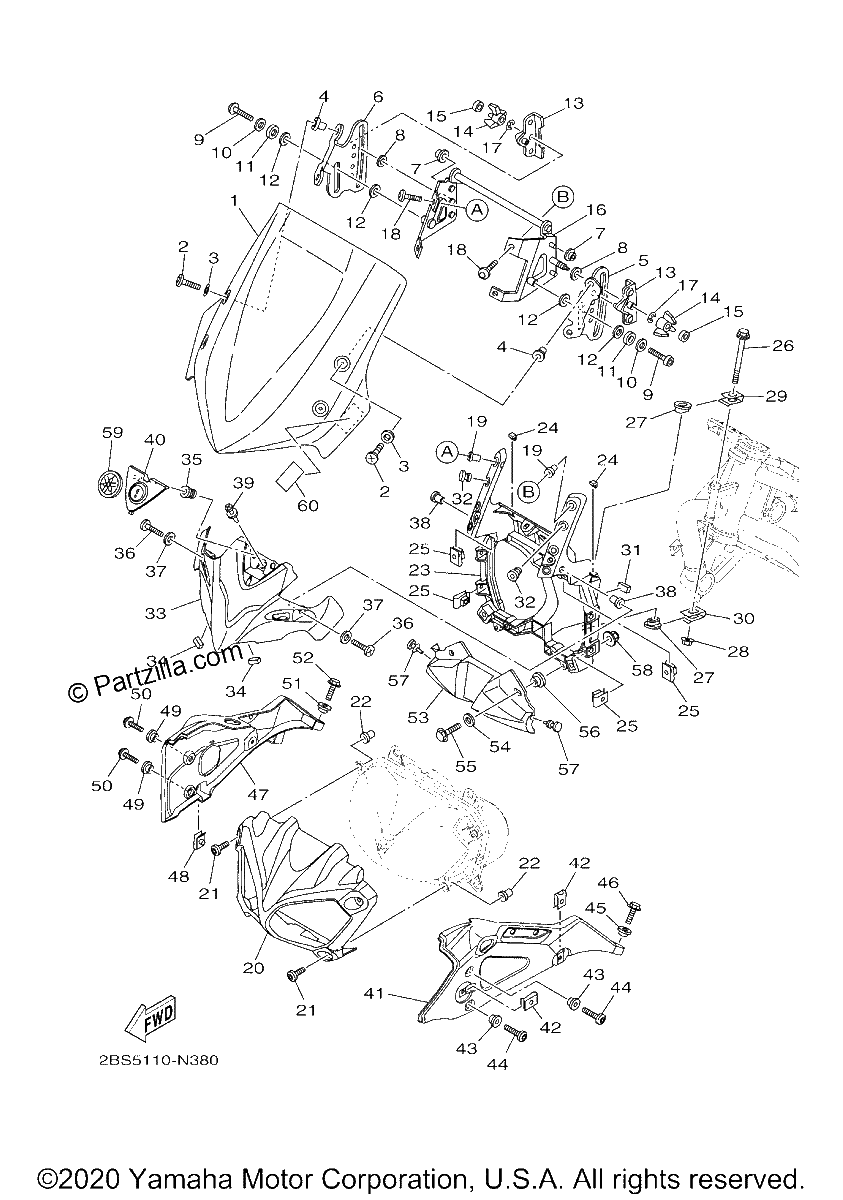

Diagrama de WINDSHIELD

Repuestos

#1
2BS-28381-20-00
Windshield
$305.49¢152 743
1
#2
90154-05011-00
SCREW, BINDING
$4.23¢2 116
1
#3
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#4
90179-05003-00
NUT
$5.37¢2 685
1
#5
2BS-2831U-00-00
STAY, SIDE 1
$38.84¢19 418
1
#6
2BS-2832U-00-00
STAY, SIDE 1
$37.55¢18 774
1
#7
90386-07MA2-00
BUSH
$3.29¢1 644
1
#8
90202-07015-00
WASHER, PLATE
$7.31¢3 657
1
#9
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#10
90201-06021-00
WASHER, PLATE
$0.85¢426
1
#11
90430-12072-00
GASKET
$5.83¢2 915
1
#12
90201-123F2-00
WASHER, PLATE
$7.96¢3 979
1
#13
2BS-2831E-00-00
STAY, GUIDE 1
$7.38¢3 691
1
#14
2BS-26383-00-00
NUT, ADJUSTING
$18.78¢9 390
1
#15
2BS-28349-00-00
CAP
$4.02¢2 012
1
#16
2BS-2831R-00-00
STAY, MAIN 1
$147.20¢73 600
1
#17
99080-03600-00
CIRCLIP
$3.58¢1 788
1
#18
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#19
90179-05523-00
NUT
$6.23¢3 117
1
#20
23P-2835G-00-00
BODY, FRONT UPPER 1
$62.24¢31 119
1
#21
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#22
90179-06520-00
NUT
$6.89¢3 444
1
#23
23P-28356-01-00
STAY 1
$149.02¢74 509
1
#24
90520-02005-00
DAMPER, PLATE
$5.96¢2 978
1
#25
90183-060A1-00
NUT, SPRING
$8.00¢4 002
1
#26
90105-085A5-00
BOLT, FLANGE
$6.07¢3 036
1
#27
5PS-28373-01-00
COLLAR
$16.64¢8 320
1
#28
95707-08500-00
NUT, FLANGE
$1.64¢822
1
#29
23P-28336-00-00
PLATE
$5.37¢2 685
1
#30
23P-28397-00-00
PLATE 2
$10.80¢5 399
1
#31
23P-28344-00-00
TAPE
$7.23¢3 617
1
#32
90338-10132-00
PLUG
$2.89¢1 443
1
#33
2BS-283M3-00-00
DEFLECTOR
$24.83¢12 414
1
#34
1HX-28227-00-00
DAMPER 2
$10.66¢5 330
1
#35
90480-10003-00
GROMMET
$6.88¢3 439
1
#36
90154-05011-00
SCREW, BINDING
$4.23¢2 116
1
#37
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#38
90179-05003-00
NUT
$5.37¢2 685
1
#39
90269-06081-00
RIVET
$6.23¢3 117
1
#40
2BS-83559-00-00
COVER, METER
$6.92¢3 461
1
#41
23P-2837L-00-00
PANEL, CONSOLE 1
$55.67¢27 836
1
#42
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#43
90387-06048-00
Collar
$6.65¢3 323
1
#44
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
1
#45
90387-08080-00
COLLAR
$9.44¢4 721
1
#46
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.30¢3 651
1
#47
23P-2837M-00-00
PANEL, CONSOLE 2
$57.42¢28 710
1
#48
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#49
90387-06048-00
Collar
$6.65¢3 323
1
#50
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
1
#51
90387-08080-00
COLLAR
$9.44¢4 721
1
#52
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.30¢3 651
1
#53
2BS-28365-00-00
COVER
$11.59¢5 796
1
#54
90201-061A5-00
WASHER, PLATE
$6.43¢3 214
1
#55
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#56
90387-06200-00
COLLAR
$6.87¢3 433
1
#57
90480-04166-00
GROMMET
$10.32¢5 158
1
#58
90176-06016-00
NUT, CAP
$4.05¢2 024
1
#59
8GC-2836B-02-00
TUNING FORK MARK
$39.61¢19 803
1
#60
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
1
