STEERING HANDLE CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

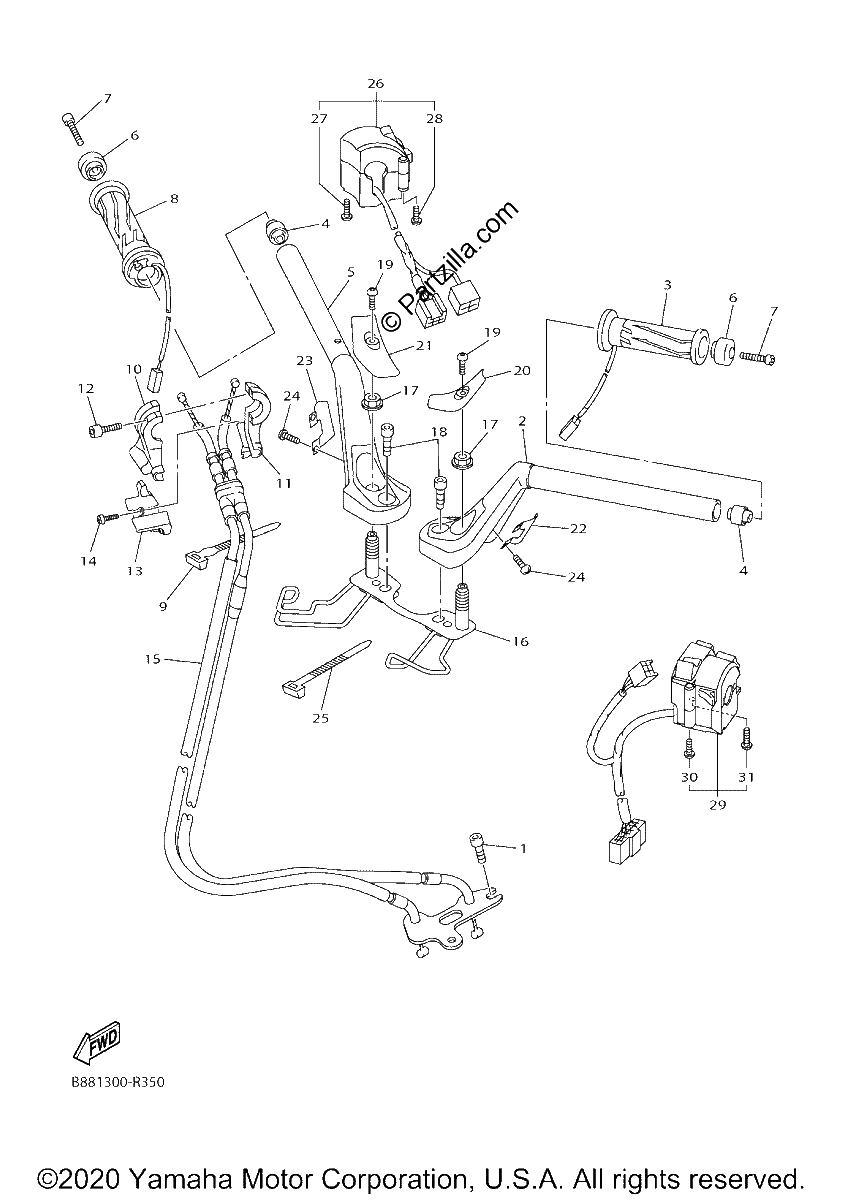

Diagrama de STEERING HANDLE CABLE

Repuestos

#1
91312-05012-00
BOLT (replaces 90110-05032-00)
$3.02¢1 513
1
#2
1MC-26121-00-00
HANDLEBAR (LEFT)
$217.61¢108 806
1
#3
1MC-82963-00-00
GRIP, WARMER (LEFT)
$208.69¢104 344
1
#4
4XV-23434-00-00
HOLDER, DAMPER
$20.15¢10 075
1
#5
1MC-26122-00-00
HANDLEBAR (RIGHT)
$316.06¢158 031
1
#6
4XV-26246-10-00
END, GRIP
$35.05¢17 525
1
#7
91317-06025-00
BOLT
$2.44¢1 219
1
#8
1MC-82960-10-00
GRIP, WARMER
$232.05¢116 025
1
#9
90465-10098-00
CLAMP
$2.78¢1 388
1
#10
2D2-26281-02-00
CAP, GRIP UPPER
$66.88¢33 438
1
#11
2D2-26282-02-00
CAP, GRIP UNDER
$71.90¢35 950
1
#12
91317-05035-00
BOLT
$7.43¢3 713
1
#13
2D2-2622K-00-00
PROTECTOR 1
$20.78¢10 388
1
#14
98902-03010-00
SCREW BINDING HEAD (+) (replaces 90154-03001-00)
$0.59¢294
1
#15
1MC-26302-01-00
Throttle Cable Assy
$45.70¢22 850
1
#16
1MC-26169-00-00
ADJUSTER
$111.90¢55 950
1
#17
90179-12588-00
NUT
$6.70¢3 350
1
#18
91312-08030-00
BOLT,SOCKET
$7.34¢3 669
1
#19
90111-04006-00
BOLT, HEX. SOCKET BUTTON
$1.94¢969
1
#20
3P6-26143-10-00
COVER, HANDLE UPPER 1
$26.69¢13 344
1
#21
3P6-26145-10-00
COVER, HANDLE UPPER 2
$25.00¢12 500
1
#22
3P6-26144-10-00
COVER, HANDLEBAR LOWER 1
$7.40¢3 700
1
#23
3P6-26146-10-00
COVER, HANDLEBAR LOWER 2
$7.10¢3 550
1
#24
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#25
90464-16061-00
BAND
$8.35¢4 175
1
#26
1MC-83963-10-00
SWITCH, HANDLE 3
$155.10¢77 550
1
#27
98507-05035-00
SCREW, PAN HEAD
$7.95¢3 975
1
#28
98507-05045-00
SCREW, PAN HEAD
$8.49¢4 244
1
#29
B88-83954-00-00
SWITCH, HANDLE 7
$335.66¢167 831
1
#30
98507-05040-00
SCREW, PAN HEAD
$7.94¢3 969
1
#31
98507-05055-00
SCREW, PAN HEAD
$2.81¢1 406
1
