CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

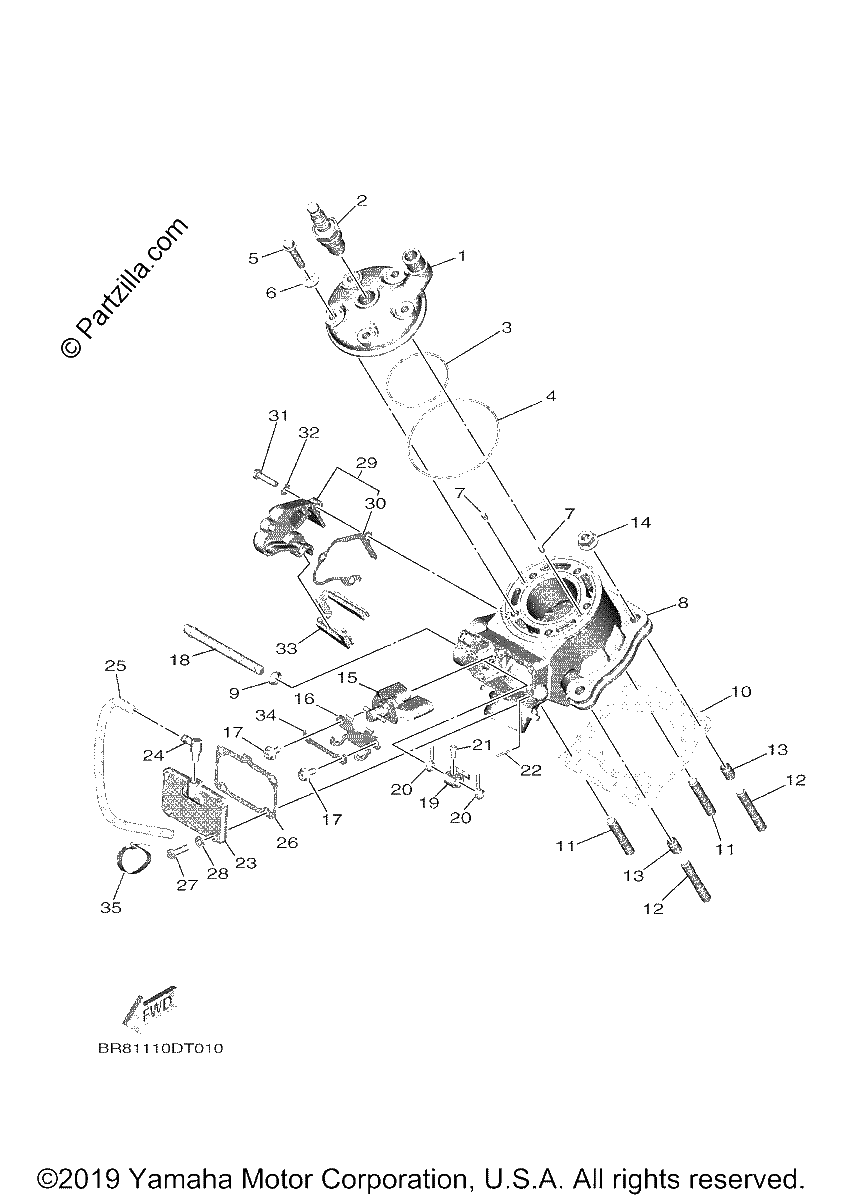

Diagrama de CYLINDER

Repuestos

#1
BR8-11111-00-00
HEAD, CYLINDER 1
$226.08¢113 039
1
#2
94702-00357-00
PLUG,SPARK(BR9ECM)10PK
$16.95¢8 476
1
#3
93210-50582-00
O-RING (50M)
$3.78¢1 892
1
#4
93210-76MF8-00
O-Ring
$9.76¢4 882
1
#5
90105-06195-00
BOLT, FLANGE
$1.77¢886
1
#6
90201-066F0-00
WASHER,PLATE
$6.88¢3 439
1
#7
93604-08071-00
PIN, DOWEL
$6.75¢3 375
1
#8
BR8-11311-00-00
CYLINDER 1
$706.50¢353 251
1
#9
93104-08040-00
OIL SEAL
$13.40¢6 699
1
#10
BR8-11351-00-00
Gasket, Cylinder
$6.46¢3 231
1
#11
90116-08031-00
BOLT, stud
$9.12¢4 560
1
#12
90116-08028-00
BOLT, stud
$7.44¢3 720
1
#13
99590-10114-00
PIN, DOWEL
$4.83¢2 415
1
#14
90179-08019-00
Nut
$5.73¢2 864
1
#15
BR8-1131D-00-00
VALVE ASSY
$213.16¢106 582
1
#16
5CU-1131U-10-00
HOLDER 3
$22.23¢11 115
1
#17
90109-05002-00
BOLT
$6.83¢3 415
1
#18
BR8-1131V-00-00
SHAFT 1
$44.92¢22 460
1
#19
4SS-11832-00-00
LEVER, LINK
$73.94¢36 973
1
#20
90508-155B8-00
SPRING, TORSION
$5.47¢2 737
1
#21
91312-04008-00
BOLT
$2.56¢1 282
1
#22
93602-16M10-00
PIN,ROLLER BEARING
$3.29¢1 644
1
#23
BR8-1131M-00-00
Cover
$35.32¢17 658
1
#24
38W-13115-00-00
CONNECTOR, SUCTION PIPE
$40.59¢20 297
1
#25
90445-08684-00
HOSE
$3.68¢1 840
1
#26
BR8-11354-00-00
Gasket
$4.91¢2 455
1
#27
97095-05016-00
BOLT
$1.66¢828
1
#28
92990-05600-00
WASHER, PLATE
$0.61¢305
1
#29
BR8-11991-00-00
HOUSING 1
$77.21¢38 606
1
#30
BR8-11993-00-00
Gasket
$5.34¢2 668
1
#31
97002-05020-00
BOLT
$2.71¢1 357
1
#32
92990-05600-00
WASHER, PLATE
$0.61¢305
1
#33
BR8-11995-00-00
SEAL, HOUSING
$13.74¢6 871
1
#34
BR8-1131P-00-00
HOLDER 4
$4.53¢2 266
1
#35
90464-25004-00
Clamp
$2.59¢1 294
1
