AIR INDUCTION SYSTEM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

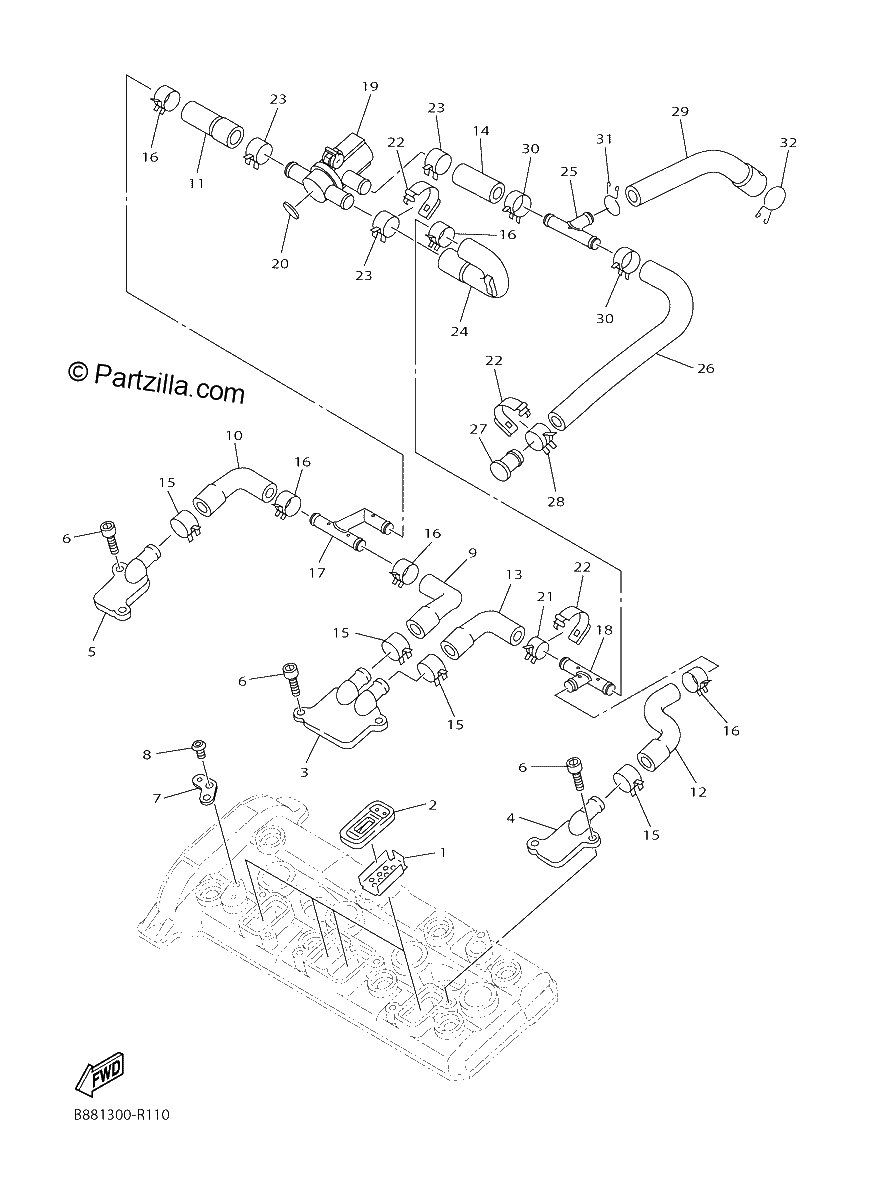

Diagrama de AIR INDUCTION SYSTEM

Repuestos

#1
5JW-1482K-01-00
PLATE
$4.23¢2 116
1
#2
5JW-14890-00-00
REED VALVE ASSY
$65.04¢32 522
1
#3
5JW-14899-10-00
CAP, CASE
$31.76¢15 881
1
#4
5JW-14858-00-00
CAP, CASE
$49.08¢24 541
1
#5
5JW-14889-00-00
CAP, CASE
$71.33¢35 667
1
#6
90110-06164-00
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 198
1
#7
1MC-1111F-00-00
PLATE
$4.62¢2 311
1
#8
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#9
1MC-14881-00-00
HOSE, BEND 1
$16.36¢8 182
1
#10
1MC-14882-00-00
HOSE, BEND 2
$17.42¢8 711
1
#11
1MC-14883-00-00
HOSE, BEND 3
$7.95¢3 973
1
#12
1MC-14874-00-00
PIPE 4
$16.74¢8 372
1
#13
1MC-14875-00-00
PIPE 5
$17.72¢8 861
1
#14
1MC-14876-00-00
PIPE 6
$4.00¢2 001
1
#15
90467-17003-00
CLIP
$5.96¢2 978
1
#16
90467-160A1-00
CLIP
$7.10¢3 548
1
#17
3P6-14871-00-00
PIPE 1
$33.49¢16 744
1
#18
3P6-14872-00-00
PIPE 2
No Disponible
1
#19
2S3-14840-00-00
AIR CUT VALVE ASSY
$200.90¢100 452
1
#20
3P6-13593-00-00
DAMPER
$3.85¢1 926
1
#21
90468-08104-00
CLIP
$2.99¢1 495
1
#22
5JW-14723-00-00
COVER 1
$17.82¢8 913
1
#23
90467-17089-00
Clip
$7.30¢3 651
1
#24
1MC-14884-00-00
HOSE, BEND 4
$11.36¢5 681
1
#25
3P6-14833-00-00
JOINT
$26.31¢13 156
1
#26
1MC-14886-00-00
HOSE, BEND 6
$13.63¢6 814
1
#27
5JW-14862-00-00
PLUG
$12.32¢6 158
1
#28
90467-17089-00
Clip
$7.30¢3 651
1
#29
1MC-14885-00-00
HOSE, BEND 5
$13.17¢6 584
1
#30
90467-17089-00
Clip
$7.30¢3 651
1
#31
90467-170A2-00
CLIP
$2.21¢1 104
1
#32
90467-20030-00
Clip
$7.31¢3 657
1
