REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

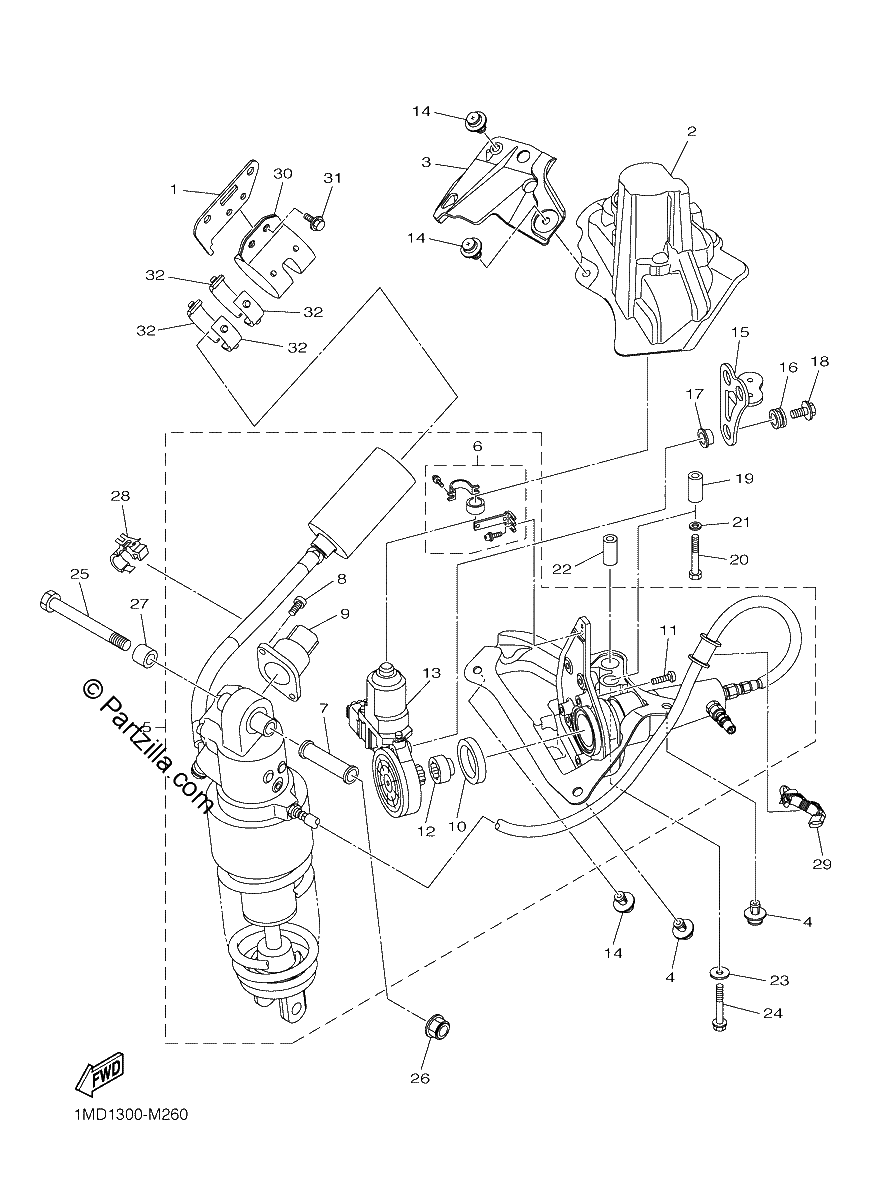

Diagrama de REAR SUSPENSION

Repuestos

#1
1MD-27333-01-00
BRACKET
$34.47¢17 237
1
#2
1MD-2117F-00-00
COVER
$131.00¢65 500
1
#3
1MD-2117N-00-00
COVER 3
$50.15¢25 075
1
#4
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#5
1MD-22210-11-00
SHOCK ABSORBER ASSY, REAR
$5357.49¢2 678 744
1
#6
1MD-2221A-00-00
BOLT STAY SET
$108.01¢54 006
1
#7
1MD-22216-00-00
BUSH, REAR SHOCK ABSORBER
$88.19¢44 094
1
#8
1MD-22242-00-00
BOLT 2
$1.59¢794
1
#9
1MD-85801-00-00
STEPPER MOTOR
$546.74¢273 369
1
#10
1MD-22215-00-00
RING, COVER
$23.15¢11 575
1
#11
1MD-22241-00-00
BOLT 1
$9.96¢4 981
1
#12
1MD-2222A-00-00
COLLAR
$90.17¢45 088
1
#13
1MD-86231-00-00
MOTOR COMP.
$373.61¢186 806
1
#14
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#15
1MD-27332-01-00
BRACKET
$54.11¢27 056
1
#16
90480-14003-00
GROMMET
$7.43¢3 713
1
#17
90387-06125-00
COLLAR
$7.10¢3 550
1
#18
90119-06147-00
BOLT, WITH WASHER
$0.85¢425
1
#19
90387-063W4-00
Collar
$8.76¢4 381
1
#20
97027-06045-00
BOLT, HEXAGON
$3.11¢1 556
1
#21
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#22
90387-063W4-00
Collar
$8.76¢4 381
1
#23
90201-06085-00
WASHER, PLATE
$3.30¢1 650
1
#24
95822-06045-00
Bolt, Flange
$7.35¢3 675
1
#25
90101-12044-00
BOLT
$14.31¢7 156
1
#26
95602-12200-00
NUT, SELF-LOCKING
$4.55¢2 275
1
#27
90387-12028-00
COLLAR
$7.67¢3 838
1
#28
90464-15192-00
CLAMP
$7.34¢3 669
1
#29
90464-14012-00
CLAMP
$2.97¢1 487
1
#30
1MD-22262-01-00
HOLDER, SUB TANK
$54.63¢27 313
1
#31
95827-06014-00
Bolt, Flange
$2.65¢1 325
1
#32
24X-22261-00-00
DAMPER, SUB TANK
$9.81¢4 906
1
