STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

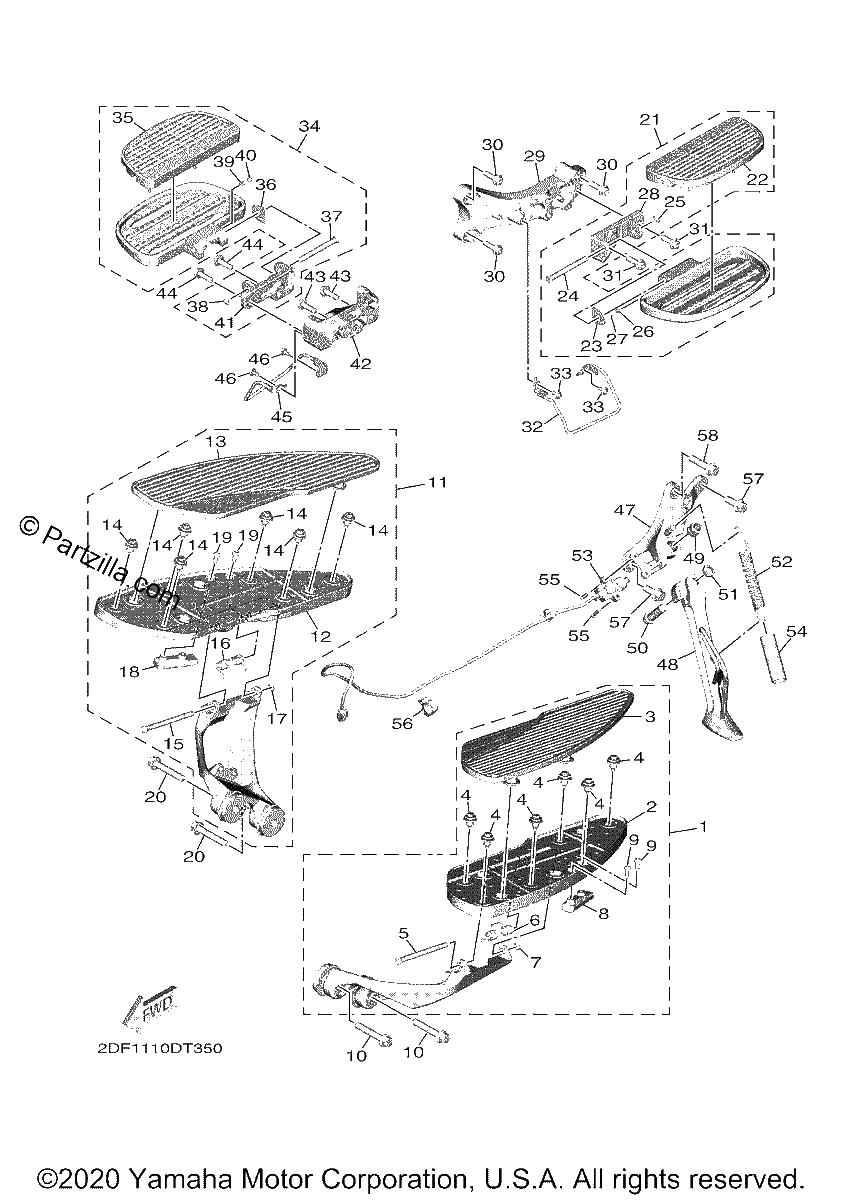

Diagrama de STAND FOOTREST

Repuestos

#1
2DF-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$410.45¢205 223
1
#2
2DF-27451-00-00
Footrest
$94.14¢47 070
1
#3
2DF-27413-00-00
COVER, FOOTREST
$66.19¢33 097
1
#4
2DF-27414-00-00
DAMPER, FOOTREST
$2.97¢1 483
1
#5
1D7-27427-00-00
SHAFT
$7.82¢3 910
1
#6
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#7
99001-06600-00
CIRCLIP
$0.94¢471
1
#8
2DF-27496-00-00
MOLE 1
$29.39¢14 697
1
#9
90111-06103-00
BOLT,HEX. SOCKET BUT
$5.65¢2 823
1
#10
90105-10083-00
BOLT, FLANGE (replaces 90105-10458-00)
$4.86¢2 432
1
#11
2DF-27420-00-00
FRONT FOOTREST ASSY (RIGHT)
$446.23¢223 117
1
#12
2DF-27461-00-00
Footrest
$97.49¢48 743
1
#13
2DF-27423-00-00
COVER, FOOTREST
$63.70¢31 849
1
#14
2DF-27414-00-00
DAMPER, FOOTREST
$2.97¢1 483
1
#15
1D7-27427-00-00
SHAFT
$7.82¢3 910
1
#16
1D7-27426-00-00
SPRING, RETURN
$4.54¢2 271
1
#17
99001-06600-00
CIRCLIP
$0.94¢471
1
#18
2DF-27496-00-00
MOLE 1
$29.39¢14 697
1
#19
90111-06103-00
BOLT,HEX. SOCKET BUT
$5.65¢2 823
1
#20
90105-10083-00
BOLT, FLANGE (replaces 90105-10458-00)
$4.86¢2 432
1
#21
2DF-27430-00-00
REAR FOOTREST ASSY 1
$160.13¢80 063
1
#22
2DF-27433-00-00
COVER, REAR FOOTREST
$24.75¢12 374
1
#23
4YE-27437-01-00
WASHER, SPECIAL
$5.58¢2 789
1
#24
4YE-27427-01-00
SHAFT
$3.69¢1 846
1
#25
99001-06600-00
CIRCLIP
$0.94¢471
1
#26
90501-13720-00
SPRING, COMPRESSION
$7.30¢3 651
1
#27
93501-04011-00
BALL
$6.87¢3 433
1
#28
2DF-27452-00-00
BRACKET, FOOTREST 1
$40.01¢20 004
1
#29
2DF-27432-00-00
BRACKET 1
$61.70¢30 849
1
#30
90110-08231-00
BOLT, HEXAGON SOCKET HEAD
$6.92¢3 461
1
#31
90110-08231-00
BOLT, HEXAGON SOCKET HEAD
$6.92¢3 461
1
#32
2DF-27471-00-00
BAR, FOOTREST 1
$14.13¢7 067
1
#33
90110-05076-00
BOLT, HEXAGON SOCKET HEAD
$0.52¢259
1
#34
2DF-27430-00-00
REAR FOOTREST ASSY 1
$160.13¢80 063
1
#35
2DF-27433-00-00
COVER, REAR FOOTREST
$24.75¢12 374
1
#36
4YE-27437-01-00
WASHER, SPECIAL
$5.58¢2 789
1
#37
4YE-27427-01-00
SHAFT
$3.69¢1 846
1
#38
99001-06600-00
CIRCLIP
$0.94¢471
1
#39
90501-13720-00
SPRING, COMPRESSION
$7.30¢3 651
1
#40
93501-04011-00
BALL
$6.87¢3 433
1
#41
2DF-27452-00-00
BRACKET, FOOTREST 1
$40.01¢20 004
1
#42
2DF-27442-00-00
BRACKET 2
$62.16¢31 079
1
#43
90110-08231-00
BOLT, HEXAGON SOCKET HEAD
$6.92¢3 461
1
#44
90110-08231-00
BOLT, HEXAGON SOCKET HEAD
$6.92¢3 461
1
#45
2DF-27472-00-00
BAR, FOOTREST 2
$13.56¢6 779
1
#46
90110-05076-00
BOLT, HEXAGON SOCKET HEAD
$0.52¢259
1
#47
2DF-27321-00-00
BRACKET, side stand
$200.33¢100 165
1
#48
2DF-27311-00-00
STAND, SIDE
$172.88¢86 440
1
#49
90387-1215U-00
COLLAR
$16.30¢8 148
1
#50
90105-12018-00
BOLT, FLANGE
$10.99¢5 497
1
#51
90185-12119-00
NUT, SELF-LOCKING
$9.46¢4 732
1
#52
90506-23024-00
Spring, Tension
$10.33¢5 164
1
#53
2DF-82566-00-00
SWITCH, SIDE STAND
$75.73¢37 864
1
#54
90445-212G3-00
HOSE (L95) (replaces 90445-217G3-00)
$7.58¢3 789
1
#55
98507-05016-00
SCREW, PAN HEAD
$1.54¢771
1
#56
90464-25009-00
CLAMP
$6.96¢3 479
1
#57
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#58
90105-10464-00
Bolt, Flange
$6.03¢3 013
1
