AUDIO EQUIPMENT 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

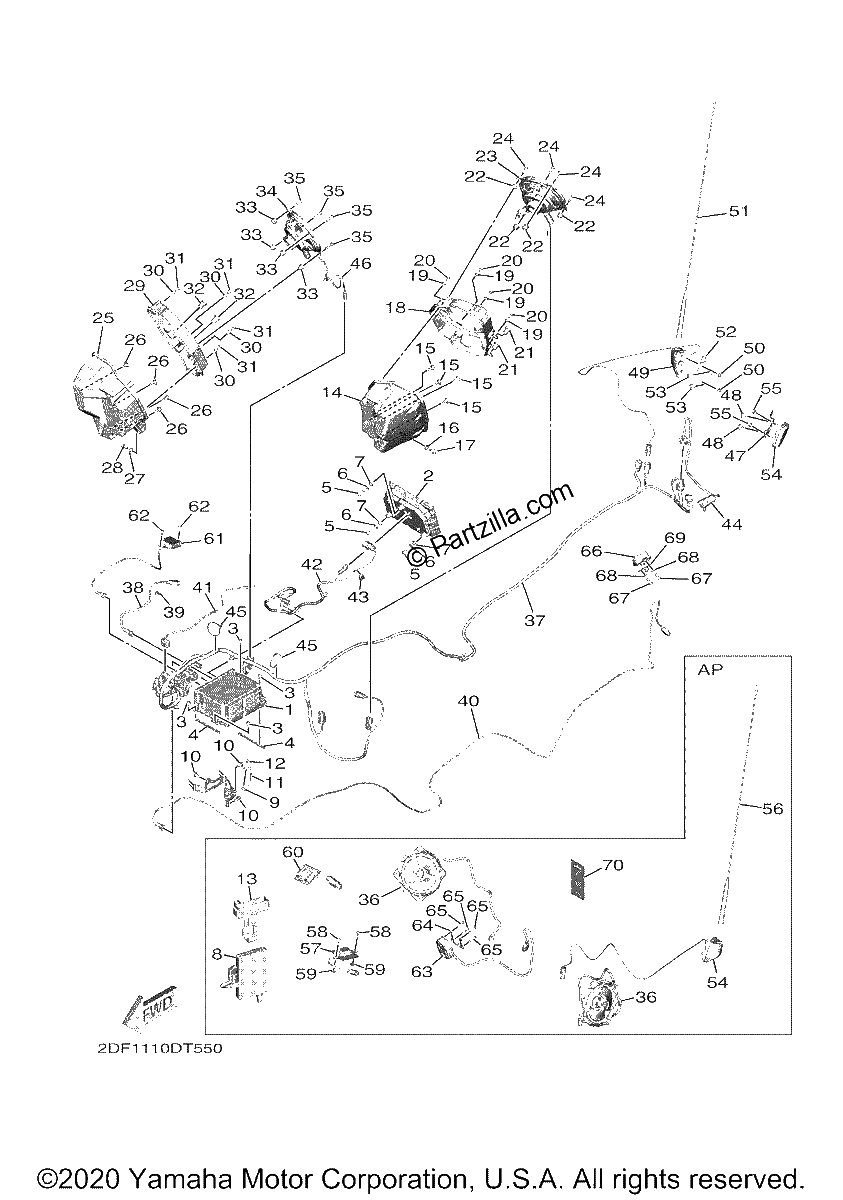

Diagrama de AUDIO EQUIPMENT 1

Repuestos

#1
2DF-88132-00-00
AMP. POWER
$7700.10¢3 850 050
1
#2
2DF-88101-00-00
CONT, LCD
No Disponible
1
#3
90110-05066-00
BOLT, HEXAGON SOCKET HEAD
$7.11¢3 553
1
#4
2DF-28337-00-00
HOLDER
$32.43¢16 215
1
#5
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#6
90201-06045-00
WASHER, PLATE
$6.76¢3 381
1
#7
90387-06184-00
COLLAR
$4.98¢2 490
1
#8
2DF-88182-00-00
BLACK BOX, CB
$1967.64¢983 819
1
#9
2DF-2138T-00-00
BRKT., INNER 1
$32.58¢16 290
1
#10
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#11
2DF-2256L-00-00
Bracket
$4.69¢2 346
1
#12
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#13
2DF-21646-00-00
BAND
$24.66¢12 328
1
#14
2DF-88162-00-00
BOX, SPEAKER 1
$191.65¢95 824
1
#15
90109-06320-00
bolt
$7.42¢3 709
1
#16
90387-06184-00
COLLAR
$4.98¢2 490
1
#17
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.25¢127
1
#18
2DF-8818B-00-00
COVER 1
$56.52¢28 261
1
#19
90387-06255-00
COLLAR
$6.69¢3 347
1
#20
90111-05048-00
BOLT, HEX. SOCKET BUTTON
$1.15¢575
1
#21
90179-06524-00
Nut
$3.93¢1 967
1
#22
90179-06520-00
NUT
$6.89¢3 444
1
#23
2DF-88161-00-00
SPEAKER 1
$414.84¢207 420
1
#24
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#25
2DF-88172-00-00
BOX, SPEAKER 2
$191.65¢95 824
1
#26
90109-06320-00
bolt
$7.42¢3 709
1
#27
90387-06184-00
COLLAR
$4.98¢2 490
1
#28
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.25¢127
1
#29
2DF-8818C-00-00
COVER 2
$10.76¢5 382
1
#30
90387-06255-00
COLLAR
$6.69¢3 347
1
#31
90111-05048-00
BOLT, HEX. SOCKET BUTTON
$1.15¢575
1
#32
90179-06524-00
Nut
$3.93¢1 967
1
#33
90179-06520-00
NUT
$6.89¢3 444
1
#34
2DF-88161-00-00
SPEAKER 1
$414.84¢207 420
1
#35
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#36
2DF-88171-00-00
SPEAKER, 2
$417.38¢208 691
1
#37
2DF-88136-01-00
CORD, AMP
$796.94¢398 469
1
#38
2DF-821F1-00-00
LEAD, USB 1
$78.27¢39 134
1
#39
90464-30011-00
CLAMP
$1.75¢874
1
#40
2DF-821F2-00-00
LEAD, USB 2
$162.69¢81 345
1
#41
2DF-821G1-00-00
LEAD, AUX
$136.44¢68 218
1
#42
2DF-82174-00-00
CORD ASSY
$455.00¢227 499
1
#43
90464-54086-00
CLAMP
$2.78¢1 392
1
#44
2DF-88197-00-00
CORD, HEAD SET 2
$145.41¢72 703
1
#45
90464-15195-00
CLAMP
$3.04¢1 518
1
#46
90464-16061-00
BAND
$7.68¢3 841
1
#47
2DF-881B4-00-00
BRKT., ANTENNA 3
$17.65¢8 826
1
#48
90111-06096-00
BOLT,HEX. SOCKET B (replaces 90111-06109-00)
$6.87¢3 433
1
#49
2DF-88144-00-00
BRACKET, ANTENNA
$192.52¢96 261
1
#50
90179-06054-00
Nut
$6.77¢3 387
1
#51
2DF-88141-00-00
POLE, antenna
$48.98¢24 489
1
#52
2DF-881A4-00-00
BRKT., ANTENNA 2
$17.65¢8 826
1
#53
90111-06096-00
BOLT,HEX. SOCKET B (replaces 90111-06109-00)
$6.87¢3 433
1
#54
2DF-88148-00-00
COVER, ANTENNA 2
$123.80¢61 899
1
#54
2DF-88144-10-00
BRACKET, ANTENNA
$186.27¢93 133
1
#55
90179-06054-00
Nut
$6.77¢3 387
1
#56
2DF-88143-00-00
POLE, antenna
$73.20¢36 599
1
#57
2DF-881A1-00-00
ANTENNA, GPS
$94.46¢47 231
1
#58
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#59
90183-05042-00
NUT, SPRING
$1.15¢575
1
#60
2DF-86269-00-00
ANTENNA COMP
$187.76¢93 880
1
#61
2DF-881A2-00-00
ANTENNA, BLUETOOTH
$217.92¢108 962
1
#62
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#63
2DF-88168-00-00
REMOTE CONTROL 1
$214.81¢107 404
1
#64
2DF-2846S-00-00
PLATE, 9
$14.06¢7 032
1
#65
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.48¢742
1
#66
2DF-88169-00-00
REMOTE CONTROL 1
$167.30¢83 651
1
#67
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#68
90201-06045-00
WASHER, PLATE
$6.76¢3 381
1
#69
2DF-88178-00-00
BRACKET, REMOTE CONTROL
$8.63¢4 313
1
#70
2DF-881C1-00-00
NAVIGATION TICKET
$685.39¢342 694
1
