CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

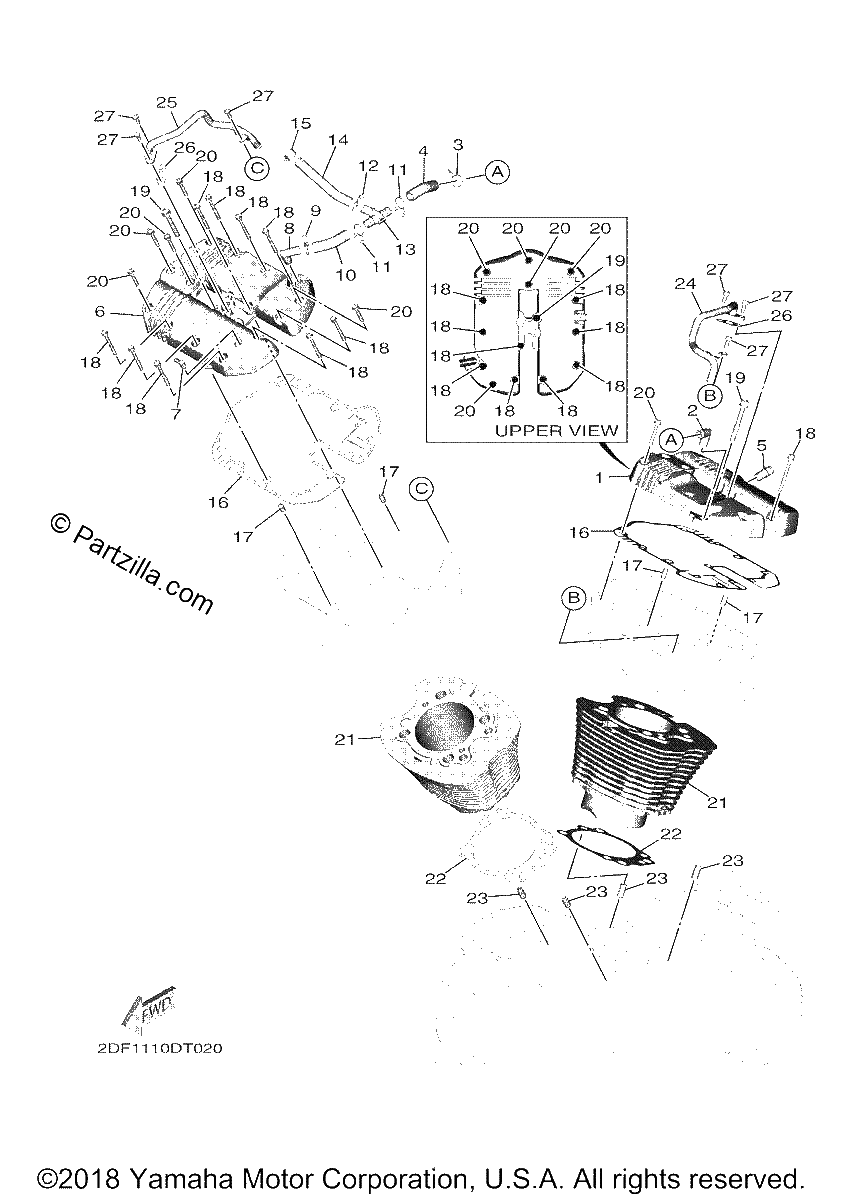

Diagrama de CYLINDER

Repuestos

#1
2DF-11191-00-00
COVER, CYLINDER HEAD 1
$363.63¢181 815
1
#2
4TR-11167-00-00
PIPE, BREATHER 2
$16.16¢8 079
1
#3
90467-18196-00
Clip
$6.36¢3 180
1
#4
2DF-11166-00-00
PIPE, BREATHER 1
$30.30¢15 151
1
#5
2DF-12463-00-00
Pipe, Breather
$5.78¢2 892
1
#6
2DF-11192-00-00
COVER, CYLINDER HEAD 2
$363.63¢181 815
1
#7
353-13115-01-00
CONNECTOR, SUCTION PIPE
$5.76¢2 881
1
#8
4TR-11167-00-00
PIPE, BREATHER 2
$16.16¢8 079
1
#9
90467-18196-00
Clip
$6.36¢3 180
1
#10
2DF-11167-00-00
PIPE, BREATHER 2
$30.30¢15 151
1
#11
90467-18196-00
Clip
$6.36¢3 180
1
#12
90467-16195-00
CLIP
$3.75¢1 874
1
#13
90413-14001-00
WAY 3
$17.92¢8 958
1
#14
2DF-11126-00-00
PIPE, BREATHER 3
$8.28¢4 140
1
#15
90467-15001-00
CLIP
$6.49¢3 243
1
#16
2DF-11193-00-00
GASKET, HEAD COVER 1
$35.25¢17 624
1
#17
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#18
90110-06422-00
BOLT, HEXAGON SOCKET HEAD
$3.43¢1 713
1
#19
90110-08118-00
BOLT, HEXAGON SOCKET HEAD
$6.64¢3 318
1
#20
90110-06421-00
BOLT, HEXAGON SOCKET HEAD
$4.52¢2 260
1
#21
2DF-11311-00-00
CYLINDER 1
$1088.77¢544 387
1
#22
2DF-11351-00-00
Gasket, Cylinder
$10.80¢5 399
1
#23
90387-062T5-00
COLLAR
$9.13¢4 566
1
#24
2DF-14871-00-00
PIPE 1
$51.91¢25 955
1
#25
2DF-14872-00-00
PIPE 2
$53.38¢26 691
1
#26
5PX-14815-00-00
GASKET
$9.40¢4 698
1
#27
91312-06014-00
bolt
$5.20¢2 599
1
