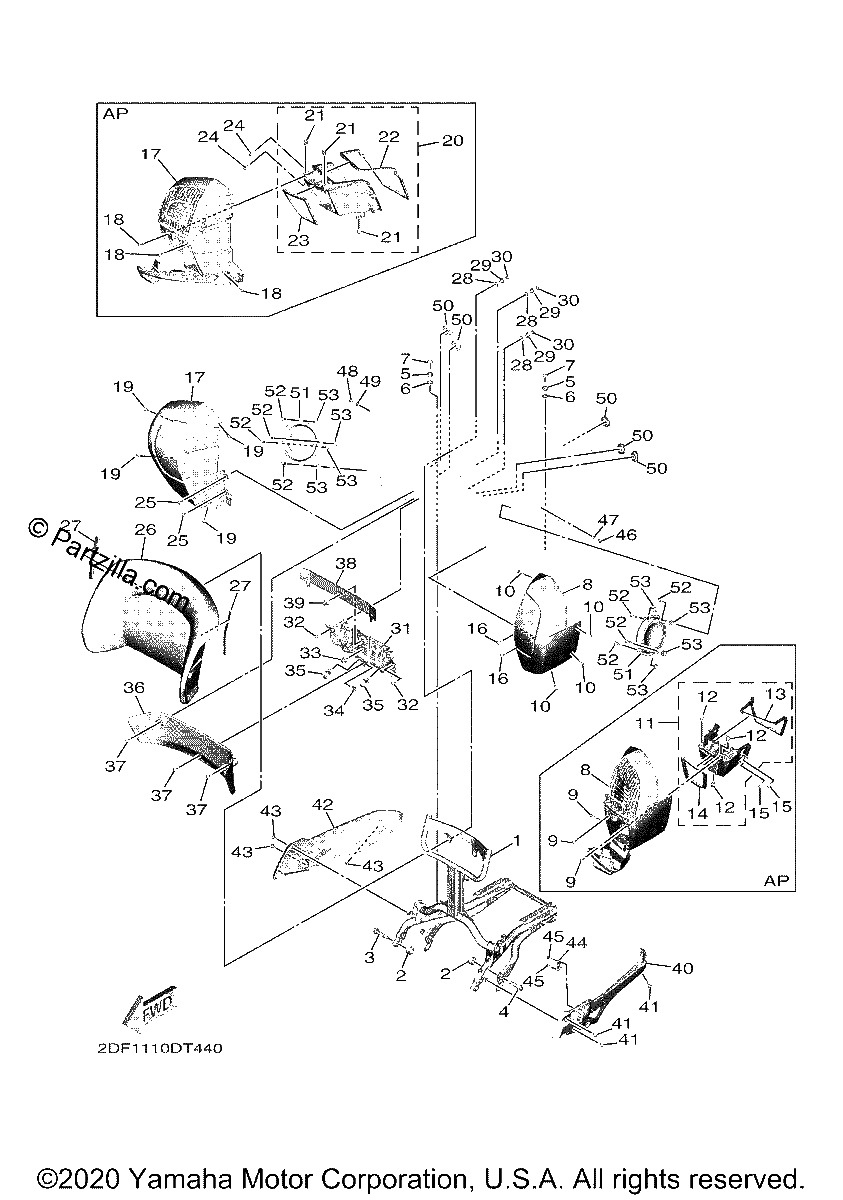

TRAVEL BAG 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME, TRAVEL TRUNK
$699.99¢349 994
#2
COLLAR ASSY.
$18.13¢9 063
#3
BOLT, FLANGE
$9.51¢4 756
#4
Bolt, Flange
$4.16¢2 081
#5
Collar
$3.16¢1 581
#6
WASHER, plate
No Disponible
#7
BOLT, HEX. SOCKET BUTTON
$1.89¢944
#8
COVER 1
$129.13¢64 563
#8
SIDE BOX ASSY., 1
$666.24¢333 119
#9
BOLT,HEX. SOCKET BUTTON
$2.71¢1 356
#10
BOLT,HEX. SOCKET BUTTON
$2.71¢1 356
#11
BOX, SIDE 1
$176.94¢88 469
#12
Nut, Spring
$12.75¢6 375
#13
PLATE, RUBBER 1
$6.29¢3 144
#14
SEAL 6
$25.33¢12 663
#15
SCREW, BINDING
$3.85¢1 925
#16
SCREW, BINDING
$3.85¢1 925
#17
COVER 2
$184.89¢92 444
#17
SIDE BOX ASSY., 2
$523.16¢261 581
#18
BOLT,HEX. SOCKET BUTTON
$2.71¢1 356
#19
BOLT,HEX. SOCKET BUTTON
$2.71¢1 356
#20
BOX, SIDE 2
$82.31¢41 156
#21
Nut, Spring
$12.75¢6 375
#22
PLATE, RUBBER 1
$6.29¢3 144
#23
SEAL 7
$25.33¢12 663
#24
SCREW, BINDING
$3.85¢1 925
#25
SCREW, BINDING
$3.85¢1 925
#26
BACK REST ASSY
$284.93¢142 463
#27
Damper
$4.60¢2 300
#28
WASHER,PLATE (replaces 90202-10165-00)
$7.01¢3 506
#29
COLLAR
$5.40¢2 700
#30
NUT, FLANGE
$2.44¢1 219
#31
COVER, 8
$90.45¢45 225
#32
SCREW, BINDING
$3.85¢1 925
#33
RIVET,SPEC'L SHAPE
$7.13¢3 563
#34
Nut, Spring
$12.75¢6 375
#35
Clamp
$2.65¢1 325
#36
COVER, 9
$91.42¢45 713
#37
SCREW, BINDING
$3.85¢1 925
#38
PLATE, RUBBER 4
$8.96¢4 481
#39
RIVET,SPEC'L SHAPE
$7.13¢3 563
#40
COVER 5
$62.55¢31 275
#41
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
#42
COVER 6
$12.86¢6 431
#43
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
#44
PLATE
$17.84¢8 919
#45
SCREW, ROUND TAPPING
$0.96¢481
#46
BOLT, HEX (replaces 90101-06529-00)
$3.21¢1 606
#47
WASHER, plate
$1.39¢694
#48
BOLT, HEX (replaces 90101-06529-00)
$3.21¢1 606
#49
WASHER, plate
$1.39¢694
#50
SEAL 5
$2.92¢1 463
#51
PLATE, BOTTOM 2
$16.77¢8 388
#52
BOLT, BUTTON HEAD
$3.04¢1 519
#53
NUT
$7.49¢3 744
