COWLING 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

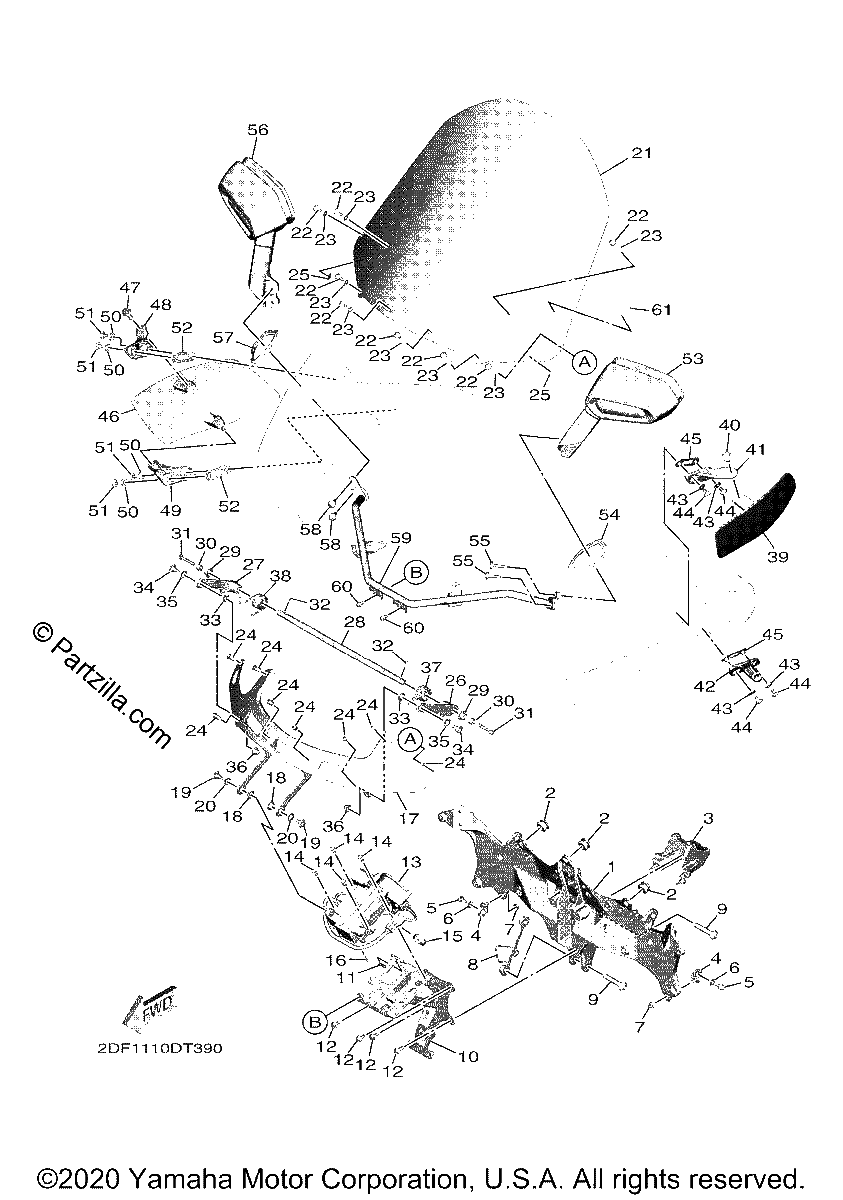

Diagrama de COWLING 3

Repuestos

#1
2DF-28356-00-00
STAY 1
$498.80¢249 401
1
#2
90480-09M21-00
Grommet
$5.96¢2 978
1
#3
2DF-28239-00-00
COVER 3
$25.24¢12 621
1
#4
2DF-2831U-00-00
STAY, SIDE 1
$4.66¢2 329
1
#5
90110-06107-00
BOLT, HEXAGON SOCKET HEAD
$2.84¢1 420
1
#6
90201-06045-00
WASHER, PLATE
$6.76¢3 381
1
#7
90179-06075-00
Nut
$0.86¢431
1
#8
2DF-28336-00-00
PLATE
$20.47¢10 235
1
#9
90111-10054-00
BOLT, HEX. SOCKET BUTTON
$5.65¢2 823
1
#10
2DF-28332-00-00
STAY, LEG SHIELD
$98.22¢49 111
1
#11
1UF-15379-00-00
SEAL
$7.11¢3 553
1
#12
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.25¢127
1
#13
2DF-83306-00-00
DRIVE UNIT ASSY
$523.55¢261 775
1
#14
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#15
90464-20181-00
CLAMP
$3.16¢1 581
1
#16
90465-10098-00
CLAMP
$2.55¢1 277
1
#17
2DF-28322-00-00
STAY 2
$153.04¢76 521
1
#18
5JW-28329-00-00
SPACER
$7.08¢3 542
1
#19
2DF-28374-10-00
BOLT, COWLING
$3.38¢1 691
1
#20
90202-10044-00
WASHER, PLATE (655)
$2.24¢1 121
1
#21
2DF-28381-00-00
Windshield
$569.35¢284 677
1
#22
90111-05051-00
BOLT,HEX. SOCKET BUT (replaces 90111-05055-00)
$1.36¢678
1
#23
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#24
90179-05523-00
NUT
$6.23¢3 117
1
#25
90520-01001-00
DAMPER, PLATE
$7.10¢3 548
1
#26
2DF-2833C-00-00
LINK 1
$35.71¢17 854
1
#27
2DF-2833D-00-00
LINK 2
$32.88¢16 439
1
#28
2DF-2833P-00-00
LINK 3
$45.86¢22 931
1
#29
90381-12003-00
BUSH, SOLID
$3.15¢1 576
1
#30
90387-06330-00
Collar
$7.03¢3 513
1
#31
95024-06030-00
BOLT,FLANGE
$6.75¢3 375
1
#32
91690-30012-00
PIN,SPRING
$5.59¢2 794
1
#33
5JW-28329-00-00
SPACER
$7.08¢3 542
1
#34
2DF-28374-10-00
BOLT, COWLING
$3.38¢1 691
1
#35
90202-10044-00
WASHER, PLATE (655)
$2.24¢1 121
1
#36
90176-06082-00
NUT,CROWN
$3.22¢1 610
1
#37
90508-35020-00
Spring, Torsion
$5.99¢2 996
1
#38
90508-35018-00
Spring, Torsion
$5.99¢2 996
1
#39
2DF-2830C-00-00
VISOR, SIDE 1
$113.96¢56 982
1
#40
90269-10006-00
RIVET
$1.36¢678
1
#41
2DF-28367-00-00
Bracket
$30.51¢15 255
1
#42
2DF-2833H-00-00
BRACKET 11
$30.65¢15 324
1
#43
90201-064J1-00
WASHER, PLATE
$3.83¢1 915
1
#44
90111-06101-00
BOLT,HEX. SOCKET BUT
$6.89¢3 444
1
#45
2DF-2836J-00-00
BRACKET 6
$6.87¢3 433
1
#46
2DF-2830D-00-00
VISOR, SIDE 2
$113.96¢56 982
1
#47
90269-10006-00
RIVET
$1.36¢678
1
#48
2DF-28366-00-00
Bracket
$31.94¢15 968
1
#49
2DF-2833J-00-00
BRACKET 12
$30.65¢15 324
1
#50
90201-064J1-00
WASHER, PLATE
$3.83¢1 915
1
#51
90111-06101-00
BOLT,HEX. SOCKET BUT
$6.89¢3 444
1
#52
2DF-2836J-00-00
BRACKET 6
$6.87¢3 433
1
#53
2DF-26280-00-P2
REAR VIEW MIRROR ASSY (LEFT)
$271.66¢135 832
1
#53
2DF-26280-00-P0
REAR VIEW MIRROR ASSY (LEFT)
$366.44¢183 218
1
#54
2DF-2628N-00-00
BASE, MIRROR (LEFT)
$7.37¢3 686
1
#55
90109-06031-00
bolt
$2.10¢1 052
1
#56
2DF-26290-00-P2
REAR VIEW MIRROR ASSY (RIGHT)
$227.95¢113 976
1
#56
2DF-26290-00-P0
REAR VIEW MIRROR ASSY (RIGHT)
$394.58¢197 288
1
#57
2DF-2628R-00-00
BASE, MIRROR (RIGHT)
$4.60¢2 300
1
#58
90109-06031-00
bolt
$2.10¢1 052
1
#59
2DF-2831W-00-00
STAY, MIRROR 1
$126.13¢63 066
1
#60
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#61
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
1
