COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

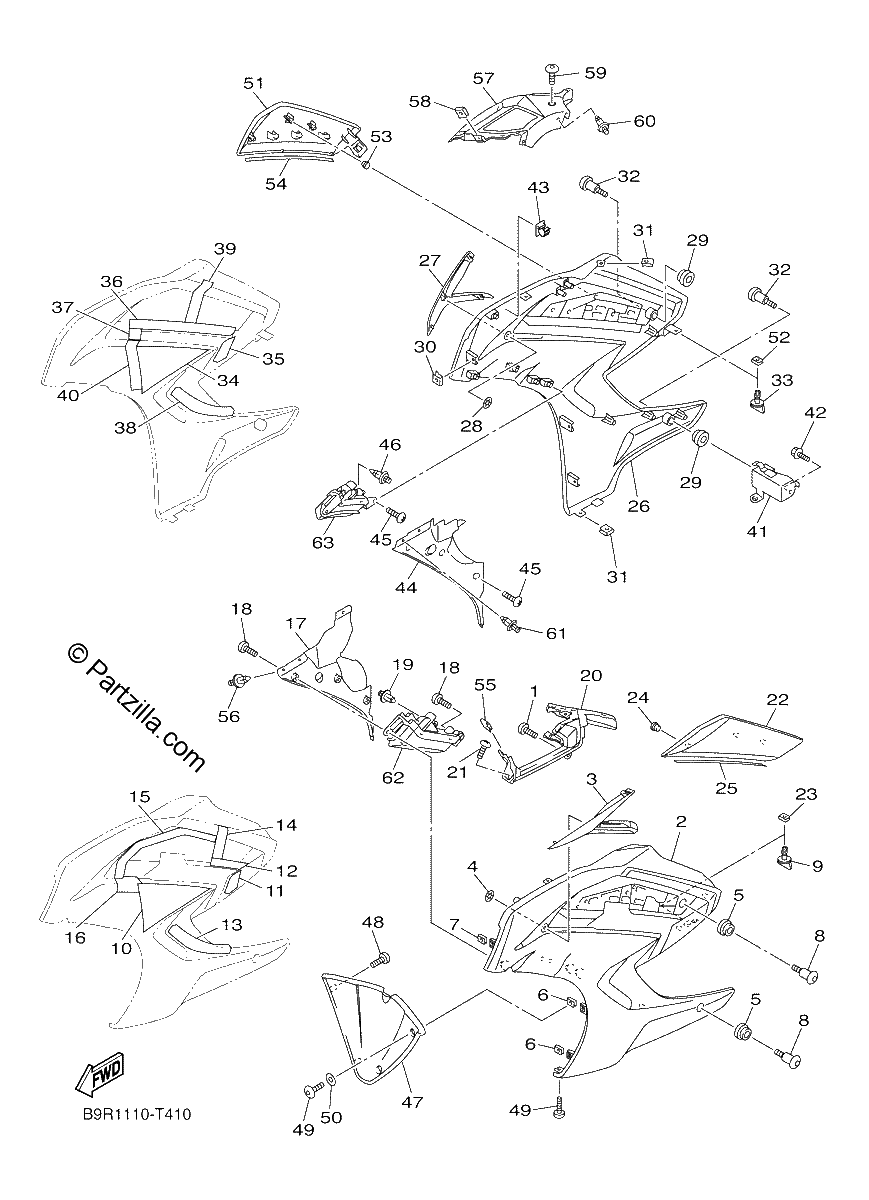

Diagrama de COWLING 2

Repuestos

#1
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#2
2BC-2835J-00-UJ
BODY, FRONT UNDER 1 (RADICAL WHITE)
No Disponible
1
#3
1MC-2835U-00-UJ
PANEL 1 (RADICAL WHITE)
$157.68¢78 838
1
#4
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#5
90480-13398-00
GROMMET
$8.16¢4 081
1
#6
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#7
90183-05042-00
NUT, SPRING
$1.25¢625
1
#8
90109-06037-00
BOLT
$7.03¢3 513
1
#9
1MC-28386-00-00
HEAD
$15.59¢7 794
1
#10
1MC-28371-00-00
DAMPER
$14.10¢7 050
1
#11
1MC-28415-00-00
DAMPER 1
$2.11¢1 056
1
#12
1MC-28425-00-00
DAMPER 3
$2.91¢1 456
1
#13
90520-50004-00
DAMPER, PLATE
$4.55¢2 275
1
#14
90520-40002-00
DAMPER, PLATE
$1.98¢988
1
#15
90520-40003-00
DAMPER, PLATE
$4.04¢2 019
1
#16
1MC-2847P-00-00
DAMPER 9
$5.78¢2 888
1
#17
3P6-2836K-00-00
PANEL, INNER 1
$64.97¢32 487
1
#18
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#19
90269-06001-00
RIVET
$6.45¢3 225
1
#20
1MC-2836M-00-00
PANEL, INNER 3
$274.31¢137 156
1
#21
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#22
1MC-2830C-00-UJ
VISOR, SIDE 1 (RADICAL WHITE)
$160.89¢80 444
1
#23
5PW-2177L-01-00
PLATE, SPRING
$7.41¢3 706
1
#24
90338-06018-00
PLUG
$6.76¢3 381
1
#25
90520-01003-00
DAMPER, PLATE
$4.60¢2 300
1
#26
2BC-2835K-00-UJ
BODY, FRONT UNDER 2 (RADICAL WHITE)
No Disponible
1
#27
1MC-2835V-00-UJ
PANEL 2 (RADICAL WHITE)
$161.28¢80 638
1
#28
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#29
90480-13398-00
GROMMET
$8.16¢4 081
1
#30
90183-05042-00
NUT, SPRING
$1.25¢625
1
#31
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#32
90109-06037-00
BOLT
$7.03¢3 513
1
#33
1MC-28386-00-00
HEAD
$15.59¢7 794
1
#34
1MC-28372-00-00
DAMPER
$10.38¢5 188
1
#35
1MC-28416-00-00
DAMPER 2
$2.20¢1 100
1
#36
1MC-28435-00-00
DAMPER 4
$6.10¢3 050
1
#37
90520-30006-00
DAMPER, PLATE
$1.44¢719
1
#38
90520-50004-00
DAMPER, PLATE
$4.55¢2 275
1
#39
90520-40002-00
DAMPER, PLATE
$1.98¢988
1
#40
1MC-2847R-00-00
DAMPER 10
$7.91¢3 956
1
#41
1MC-2836F-00-00
BRACKET 3
$30.69¢15 344
1
#42
95822-06012-00
Bolt, Flange
$1.79¢894
1
#43
90464-54086-00
CLAMP
$3.02¢1 513
1
#44
3P6-2836L-00-00
PANEL, INNER 2
$64.97¢32 487
1
#45
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#46
90269-06001-00
RIVET
$6.45¢3 225
1
#47
3P6-28385-10-UJ
COVER, UNDER (RADICAL WHITE)
$194.99¢97 494
1
#48
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#49
90110-05201-00
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
1
#50
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#51
1MC-2830D-00-UJ
VISOR, SIDE 2 (RADICAL WHITE)
$153.16¢76 581
1
#52
5PW-2177L-01-00
PLATE, SPRING
$7.41¢3 706
1
#53
90338-06018-00
PLUG
$6.76¢3 381
1
#54
90520-01003-00
DAMPER, PLATE
$4.60¢2 300
1
#55
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#56
90269-06008-00
RIVET
$8.80¢4 400
1
#57
1MC-2836N-01-00
PANEL, INNER 4
$222.11¢111 056
1
#58
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#59
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#60
90269-06008-00
RIVET
$8.80¢4 400
1
#61
90269-06008-00
RIVET
$8.80¢4 400
1
#62
1MC-83310-10-00
FRONT FLASHER LIGHT ASSY 1
$173.06¢86 531
1
#63
1MC-83320-10-00
FRONT FLASHER LIGHT ASSY 2
$184.64¢92 319
1
