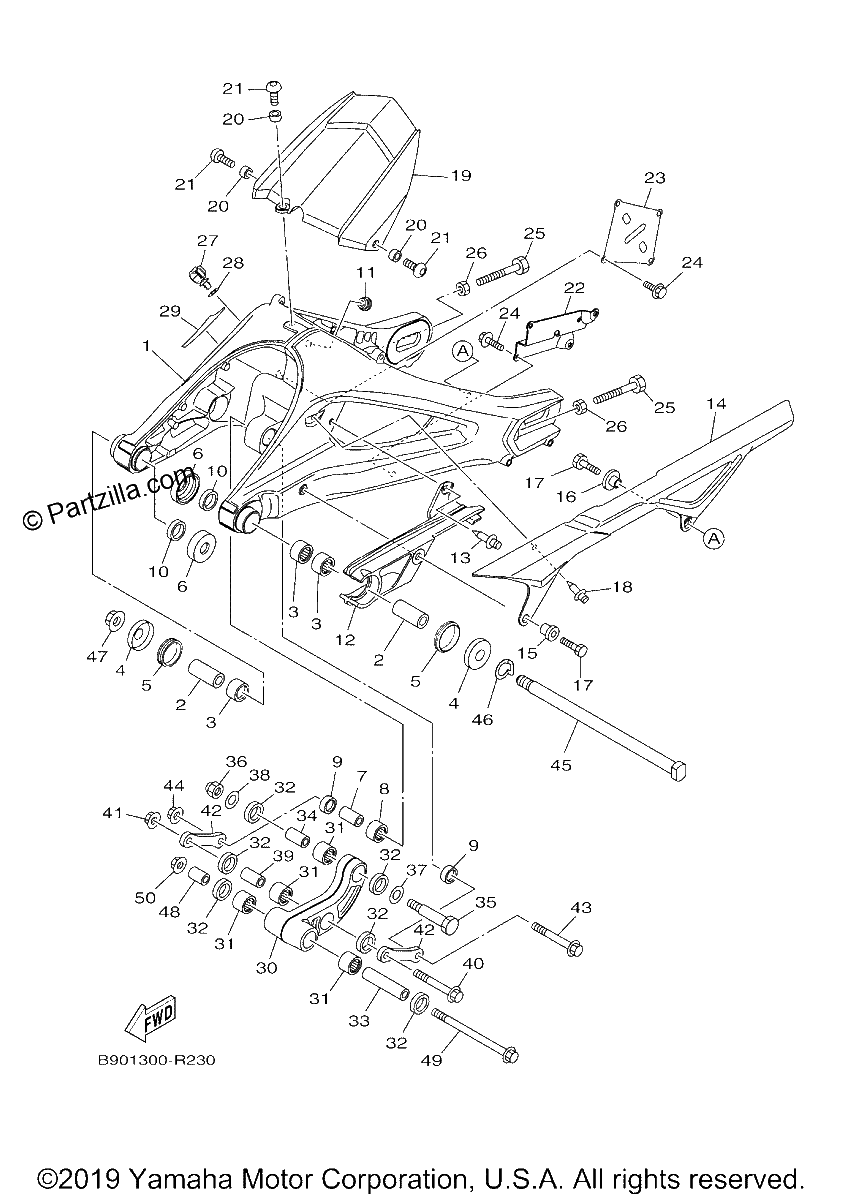

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP. (replaces B90-22110-00-00)
$1457.69¢728 847
#2
BUSH, SOLID
$24.78¢12 391
#3
BEARING
$37.40¢18 699
#4
COVER
$15.65¢7 826
#5
OIL SEAL (35-41-8)
$13.78¢6 889
#6
COVER, THRUST 1
$14.34¢7 170
#7
COLLAR
$14.33¢7 165
#8
BEARING
$38.04¢19 021
#9
OIL SEAL
$7.38¢3 691
#10
OIL SEAL
$10.21¢5 106
#11
GROMMET
$6.76¢3 381
#12
SEAL, GUARD
$21.91¢10 954
#13
RIVET
$3.68¢1 840
#14
CASE, CHAIN
$22.61¢11 305
#15
COLLAR
$18.85¢9 424
#16
Collar
$5.86¢2 932
#17
BOLT (GA1) (replaces 90101-06044-00)
$2.08¢1 041
#18
RIVET
$3.68¢1 840
#19
REAR FENDER COMP.
$51.47¢25 737
#20
COLLAR
$5.93¢2 967
#21
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
#22
BRACKET 1
$15.12¢7 561
#23
BRACKET 2
$11.83¢5 917
#24
BOLT, FLANGE
$5.97¢2 984
#25
BOLT
$3.29¢1 644
#26
NUT (6L2)
$7.44¢3 720
#27
CLAMP
$7.59¢3 795
#28
WASHER, PLATE
$5.22¢2 610
#29
SEAL 1
$8.66¢4 330
#30
ARM, RELAY
$131.78¢65 889
#31
BEARING
$38.04¢19 021
#32
OIL SEAL
$7.38¢3 691
#33
SPACER
$27.34¢13 668
#34
COLLAR
$12.21¢6 106
#35
BOLT
$8.07¢4 036
#36
NUT, U
$6.76¢3 381
#37
WASHER, PLATE
$3.68¢1 840
#38
WASHER, plate
$3.91¢1 955
#39
COLLAR
$14.33¢7 165
#40
BOLT, FLANGE
$5.03¢2 513
#41
NUT, U FLANGE
$2.51¢1 254
#42
ARM 1
$10.30¢5 152
#43
BOLT, FLANGE
$5.03¢2 513
#44
NUT, U FLANGE
$2.51¢1 254
#45
SHAFT, PIVOT
$92.21¢46 104
#46
WASHER, SPRING LOWER
$2.13¢1 064
#47
NUT,SELF-LOCKING
$10.87¢5 434
#48
COLLAR
$6.66¢3 329
#49
BOLT, FLANGE
$10.21¢5 106
#50
NUT, U FLANGE
$2.51¢1 254
