TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

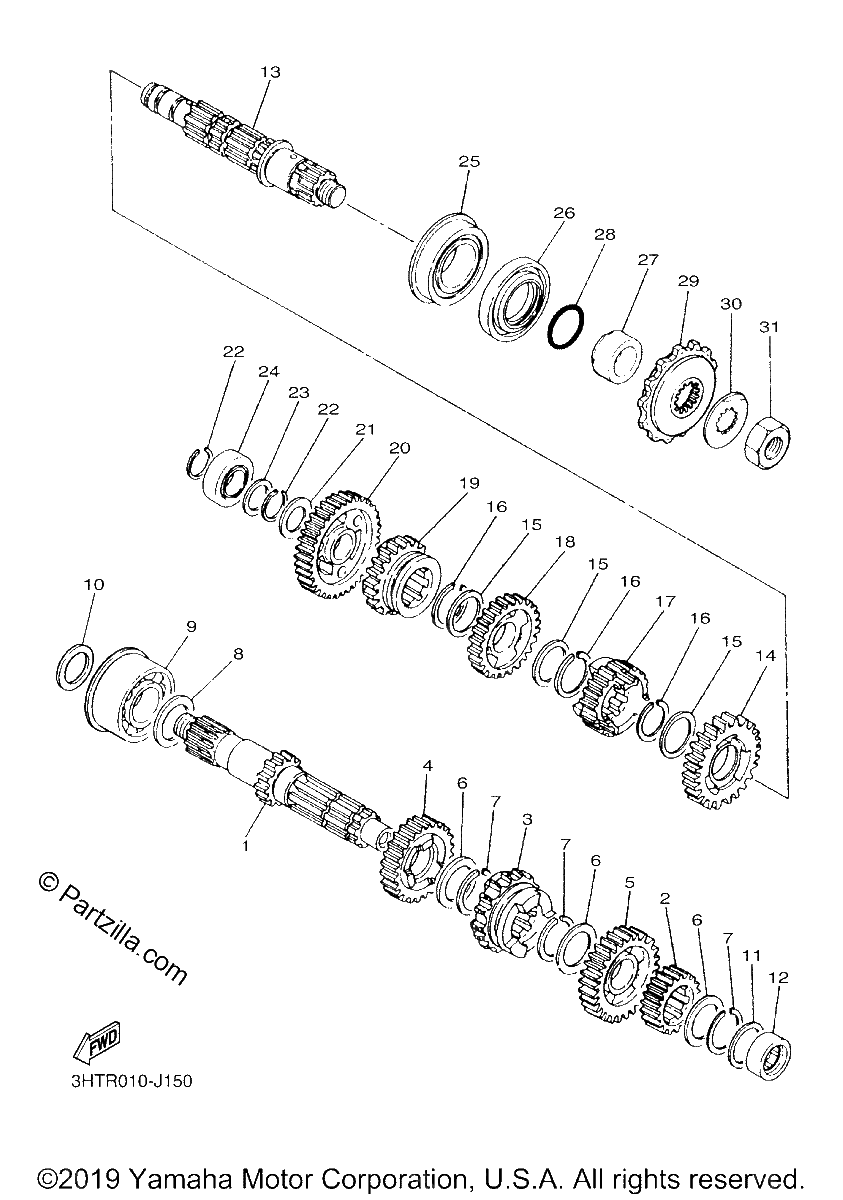

Diagrama de TRANSMISSION

Repuestos

#1
3HT-17411-00-00
AXLE, MAIN (14T)
$167.46¢83 731
1
#2
583-17121-00-00
GEAR, 2ND PINION (18T)
$56.04¢28 019
1
#3
3GW-17131-00-00
GEAR, 3RD PINION (21T)
$100.40¢50 200
1
#4
583-17141-00-00
GEAR, 4TH PINION (24T)
$88.92¢44 463
1
#5
3GW-17151-00-00
GEAR, 5TH PINION (27T)
$74.16¢37 081
1
#6
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#7
93440-25020-00
CIRCLIP
$9.22¢4 613
1
#8
168-17428-01-05
SHIM 2 (25-34-0.5)
$5.05¢2 525
1
#9
93306-20546-00
BEARING
$59.51¢29 756
1
#10
90201-252A4-00
WASHER, PLATE
$11.31¢5 656
1
#11
90201-20266-00
WASHER, PLATE (T=1.0)
$9.78¢4 888
1
#12
93311-42077-00
BEARING
$57.71¢28 856
1
#13
3HT-17402-R0-00
DRIVE AXLE ASSY
$130.51¢65 256
1
#14
583-17221-00-00
GEAR, 2ND WHEEL (28T)
$93.26¢46 631
1
#15
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#16
93440-25020-00
CIRCLIP
$9.22¢4 613
1
#17
3GW-17251-00-00
GEAR, 5TH WHEEL (21T)
$111.44¢55 719
1
#18
3GW-17231-00-00
GEAR, 3RD WHEEL (25T)
$63.45¢31 725
1
#19
583-17241-00-00
GEAR, 4TH WHEEL (22T)
$73.83¢36 913
1
#20
583-17211-00-00
GEAR, 1ST WHEEL (33T)
$82.01¢41 006
1
#21
90201-20278-00
WASHER, PLATE
$10.67¢5 337
1
#22
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#23
90201-20266-00
WASHER, PLATE (T=1.0)
$9.78¢4 888
1
#24
93313-32008-00
BEARING
$92.67¢46 338
1
#25
93306-30517-00
BEARING
$71.86¢35 931
1
#26
93102-35469-00
OIL SEAL
$27.64¢13 819
1
#27
90387-250V7-00
COLLAR
$15.36¢7 681
1
#28
93210-22298-00
O-RING
$7.81¢3 906
1
#29
3FH-17460-00-00
SPROCKET, DRIVE (19T)
$44.47¢22 237
1
#30
90215-21256-00
WASHER, LOCK
$13.25¢6 625
1
#31
90179-18003-00
NUT
$10.72¢5 363
1
