CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

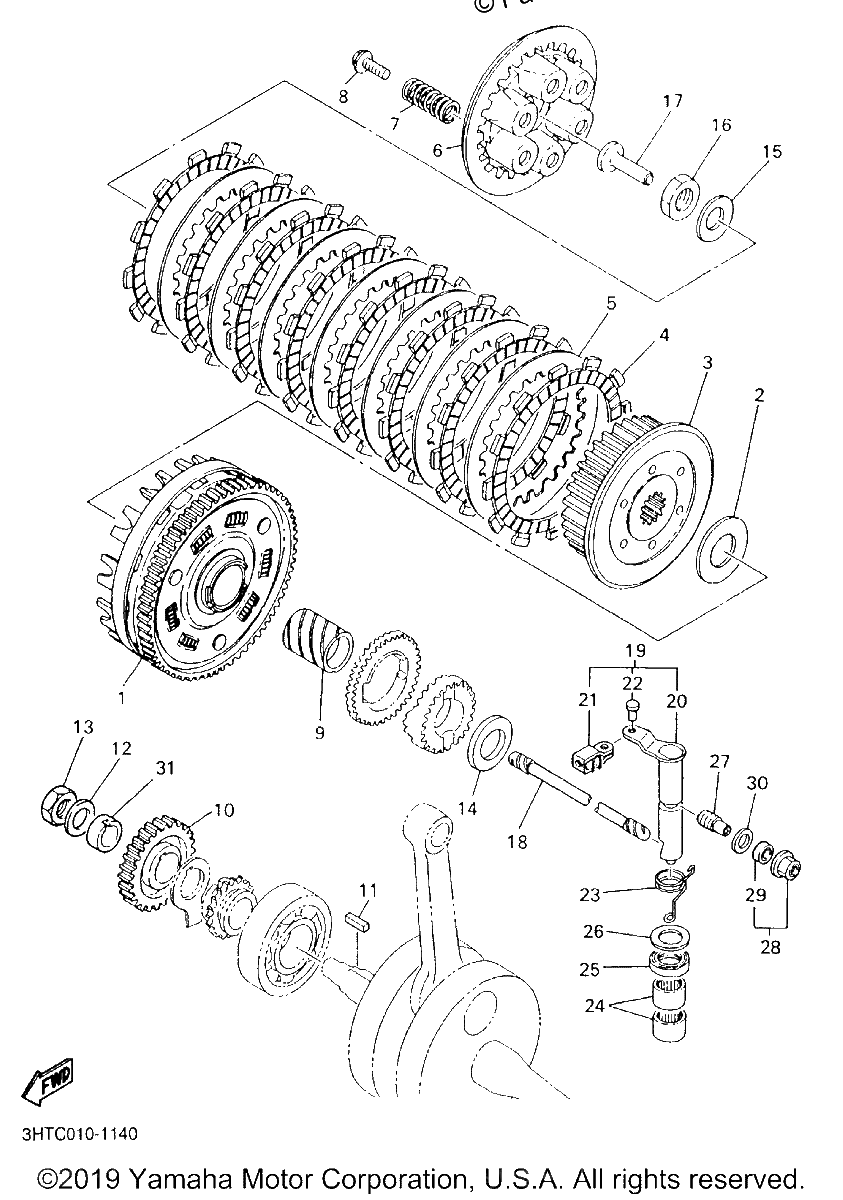

Diagrama de CLUTCH

Repuestos

#1
2J2-16150-00-00
PRIMARY DRIVEN GEAR COMP. (77T)
$281.74¢140 869
1
#2
170-16164-00-00
PLATE, THRUST 2
$10.31¢5 156
1
#3
583-16371-00-00
BOSS, CLUTCH
$120.88¢60 438
1
#4
5Y1-16321-00-00
PLATE, FRICTION
$18.90¢9 450
1
#5
360-16325-00-00
PLATE, CLUTCH 2
$36.88¢18 438
1
#6
498-16351-00-00
PLATE, PRESSURE 1
$59.86¢29 931
1
#7
90501-234L3-00
SPRING, COMPRESSION
$9.51¢4 756
1
#8
90159-06010-00
SCREW, WITH WASHER
$7.80¢3 900
1
#9
90560-25153-00
SPACER
$28.46¢14 231
1
#10
3HT-16111-00-00
GEAR, PRIMARY DRIVE
$96.40¢48 200
1
#11
90282-07021-00
KEY, STRAIGHT
$9.26¢4 631
1
#12
90208-16019-00
WASHER, CONICAL SPRING
$7.34¢3 669
1
#13
90170-16425-00
NUT
$7.88¢3 938
1
#14
363-16154-00-00
PLATE, THRUST 1
$17.01¢8 506
1
#15
214-16119-00-00
SPRING, BELLEVILLE
$11.34¢5 669
1
#16
90170-18086-00
NUT
$12.35¢6 175
1
#17
174-16356-00-00
ROD, PUSH 1
$22.90¢11 450
1
#18
583-16357-01-00
ROD, PUSH 2
$51.70¢25 850
1
#19
583-16302-00-00
AXLE PUSH LEVER ASSY
$204.48¢102 238
1
#20
583-16381-00-00
PUSH LEVER COMP.
$108.35¢54 175
1
#21
214-16389-00-00
JOINT
$9.86¢4 931
1
#22
90243-06016-00
PIN
$7.09¢3 544
1
#23
90508-12279-00
SPRING, TORSION
$6.91¢3 456
1
#24
93315-11720-00
BEARING
$33.76¢16 881
1
#25
93102-17357-00
OIL SEAL
$12.45¢6 225
1
#26
90201-18262-00
WASHER, PLATE
$7.48¢3 738
1
#27
364-16343-00-00
SCREW, ADJUSTING
$8.03¢4 013
1
#28
583-16344-00-00
NUT, ADJUSTING
$34.23¢17 113
1
#29
93104-07036-00
OIL SEAL
$8.69¢4 344
1
#30
90201-12172-00
WASHER,PLATE
$3.44¢1 719
1
#31
90387-20644-00
COLLAR
$13.57¢6 788
1
