STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

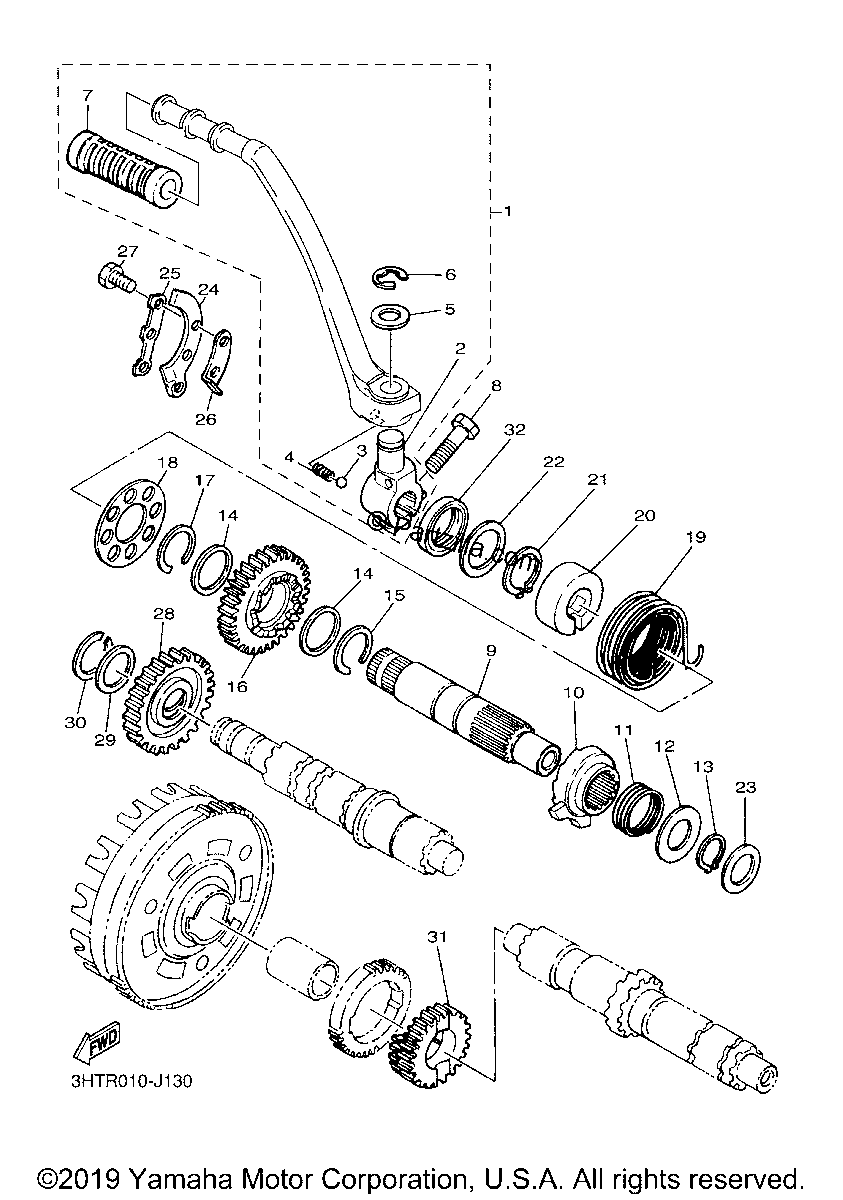

Diagrama de STARTER

Repuestos

#1
3HT-15610-R0-00
KICK CRANK ASSY
$145.53¢72 766
1
#2
583-15621-00-00
BOSS, KICK CRANK
$94.70¢47 351
1
#3
93507-32031-00
BALL
$4.28¢2 139
1
#4
90501-12081-00
SPRING, COMPRESSION
$6.75¢3 375
1
#5
90201-15234-00
WASHER, PLATE
$7.44¢3 720
1
#6
99001-10600-00
99006-10600-00 This item has been discontinued and may not be available. Contact us for more information.
$7.58¢3 789
1
#7
1T1-15618-00-00
COVER, KICK LEVER
$6.51¢3 254
1
#8
97024-08030-00
BOLT
$1.69¢845
1
#9
583-15661-00-00
AXLE, KICK
$67.92¢33 960
1
#10
583-15671-00-00
WHEEL, RATCHET
$79.61¢39 807
1
#11
90501-23143-00
SPRING, COMPRESSION
$10.32¢5 158
1
#12
363-15676-00-00
COVER, SPRING
$6.03¢3 013
1
#13
99009-19400-00
CIRCLIP
$6.75¢3 375
1
#14
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#15
93440-25020-00
CIRCLIP
$8.49¢4 244
1
#16
583-15641-00-00
GEAR, KICK (29T)
$61.75¢30 877
1
#17
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#18
583-15676-00-00
COVER, SPRING
No Disponible
1
#19
90508-32280-00
SPRING, TORSION
$6.81¢3 404
1
#20
90560-25154-00
SPACER
No Disponible
1
#21
99009-25400-00
CIRCLIP
$7.30¢3 651
1
#22
90201-256K6-00
WASHER, PLATE (0.9T)
$3.83¢1 915
1
#23
90201-20278-00
WASHER, PLATE
$9.82¢4 910
1
#24
583-15674-00-00
GUIDE, RATCHET WHEEL
$21.75¢10 873
1
#25
363-15686-00-00
WASHER, LOCK
$7.38¢3 691
1
#26
434-15668-00-00
STOPPER
$7.38¢3 691
1
#27
97D95-06016-00
BOLT (GA1) (replaces 90101-06044-00)
$2.08¢1 041
1
#28
583-15651-00-00
GEAR, SPROCKET IDLE (27T)
$89.47¢44 735
1
#29
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#30
99009-17400-00
Circlip
$4.28¢2 139
1
#31
3HT-15631-00-00
GEAR, KICK PINION (19T)
$57.87¢28 934
1
#32
93102-25064-00
OIL SEAL
$12.21¢6 106
1
