SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

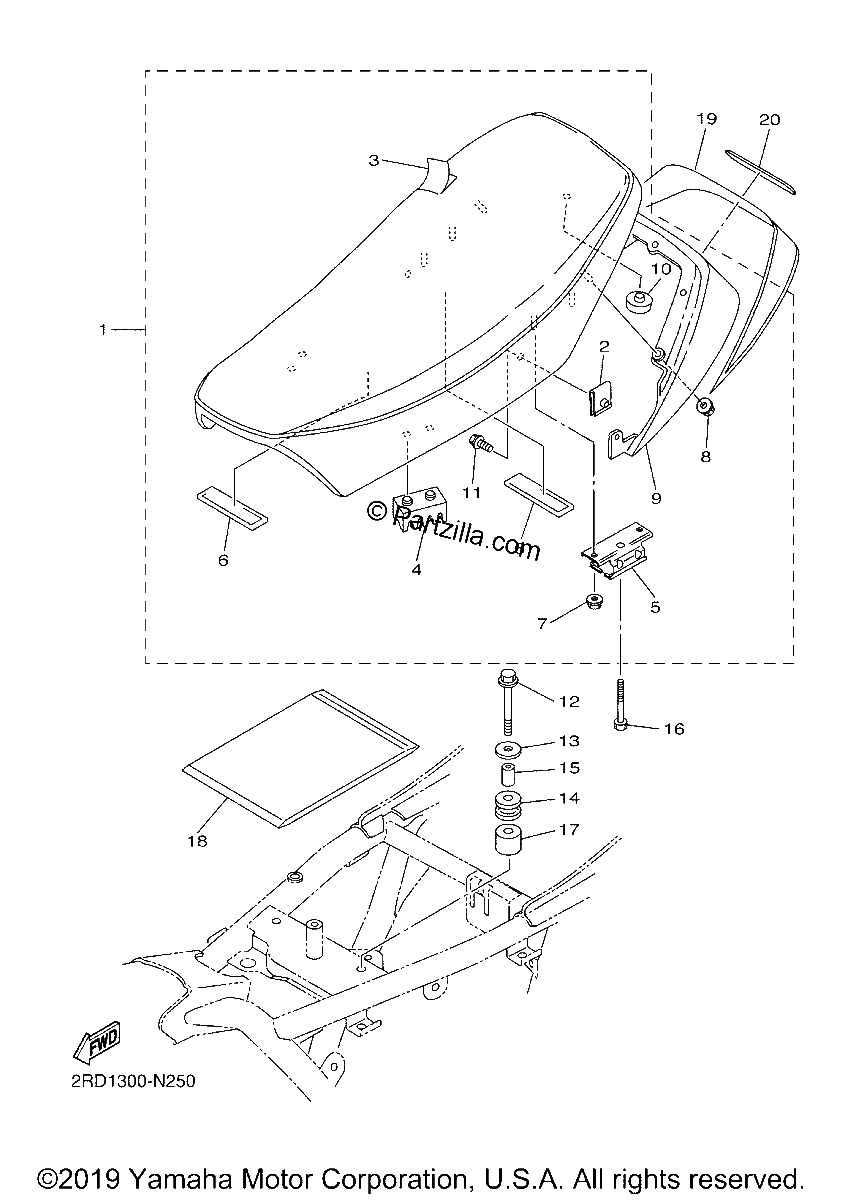

Diagrama de SEAT

Repuestos

#1
3HT-24730-60-P0
DOUBLE SEAT ASSY
$460.00¢230 000
1
#2
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#3
3HT-24731-60-00
. .COVER, SEAT
$107.88¢53 938
1
#4
2J2-24723-00-00
DAMPER, SEAT
$23.61¢11 806
1
#5
2J2-24724-01-00
DAMPER, SEAT
$68.20¢34 100
1
#6
4KG-2814E-10-00
HOOK
$4.70¢2 350
1
#7
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#8
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#9
2J2-24756-00-PG
. .COVER, TAIL
$99.11¢49 556
1
#10
22W-24741-00-00
PAD, SEAT
$9.19¢4 594
1
#11
90119-05015-00
BOLT, WITH WASHER (replaces 90119-05016-00)
$7.34¢3 669
1
#12
95812-06055-00
BOLT, FLANGE
$1.75¢875
1
#13
90201-06074-00
WASHER,PLATE
$7.48¢3 738
1
#14
2J2-24737-00-00
DAMPER, SEAT
$6.59¢3 294
1
#15
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#16
90101-08439-00
BOLT
$7.94¢3 969
1
#17
3HT-24725-00-00
SPACER 1
$14.35¢7 175
1
#18
4KG-28186-00-00
POUCH
$19.85¢9 925
1
#19
2RD-24757-60-00
GRAPHIC, TAIL COVER
$27.57¢13 788
1
#20
3LS-21781-00-00
EMBLEM 1
$43.83¢21 913
1
