HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

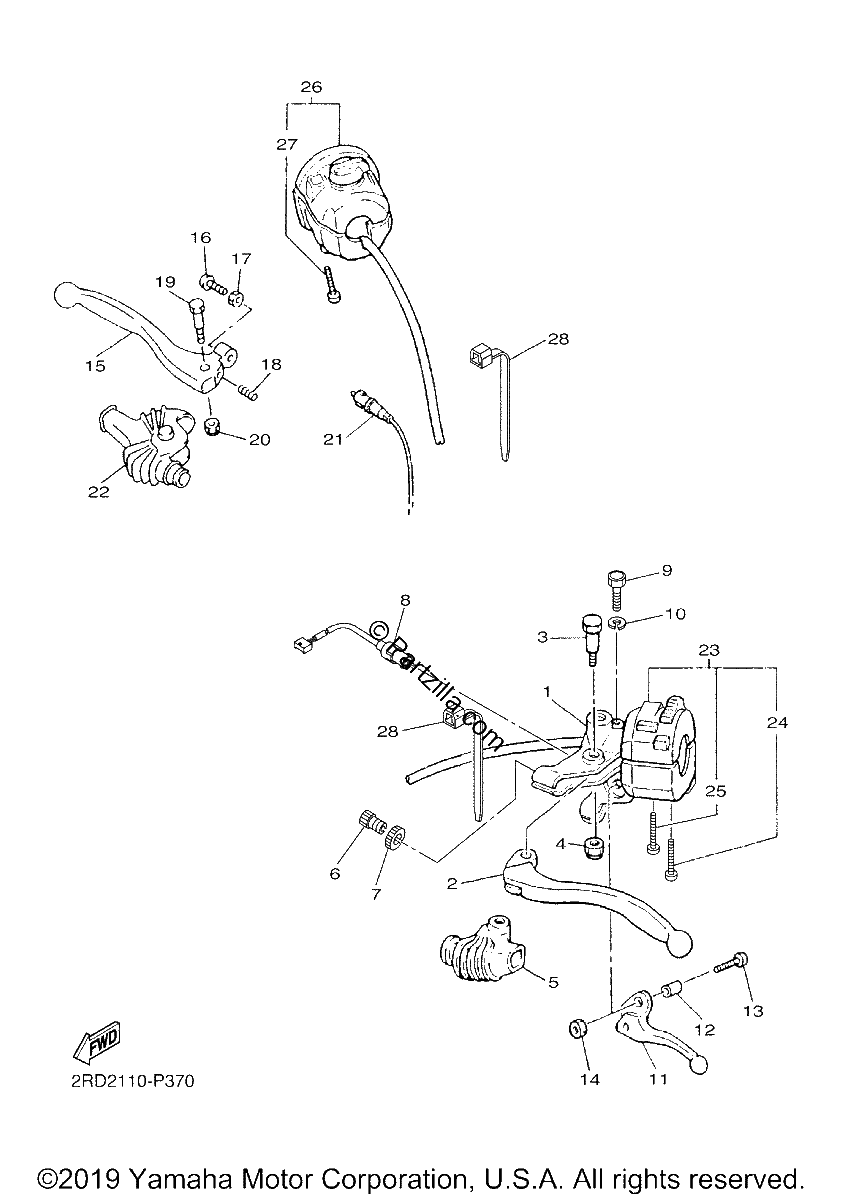

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
3HT-82911-00-00
HOLDER, LEVER 1
$43.96¢21 982
1
#2
2HT-83912-01-00
LEVER 1
$38.27¢19 136
1
#3
3HT-83945-00-00
BOLT, LEVER
$6.13¢3 065
1
#4
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#5
1E6-26372-00-00
COVER,HANDLE LEVER
$21.83¢10 914
1
#6
90123-08046-00
BOLT
$10.06¢5 031
1
#7
90179-08148-00
NUT
$4.27¢2 133
1
#8
3HT-82917-00-00
SWITCH
$30.89¢15 444
1
#9
97007-06022-00
BOLT
$7.58¢3 789
1
#10
92907-06100-00
WASHER, SPRING
$1.13¢564
1
#11
583-83981-00-00
LEVER, DECOMPRESSION
$22.45¢11 224
1
#12
5BE-83913-00-00
COLLAR, LEVER 1
$5.04¢2 519
1
#13
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.48¢742
1
#14
95617-05100-00
NUT, U
$7.30¢3 651
1
#15
38W-83922-01-00
LEVER 2
$62.33¢31 165
1
#16
90149-06131-00
SCREW
$6.75¢3 375
1
#17
90170-06021-00
NUT
$3.21¢1 604
1
#18
90501-10312-00
SPRING,COMPRESSION
$6.75¢3 375
1
#19
90109-06577-00
BOLT
$5.90¢2 950
1
#20
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#21
3HT-83980-00-00
FRONT STOP SWITCH ASSY
$26.59¢13 294
1
#22
1T5-26372-00-00
COVER,HANDLE LEVER
$19.56¢9 781
1
#23
2RD-83972-00-00
SWITCH, HANDLE 4
$134.03¢67 016
1
#24
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#25
98507-05035-00
SCREW, PAN HEAD
$7.31¢3 657
1
#26
2RD-83976-00-00
SWITCH, HANDLE 1
$96.70¢48 352
1
#27
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$8.69¢4 347
1
#28
90464-15195-00
CLAMP
$3.04¢1 518
1
