FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

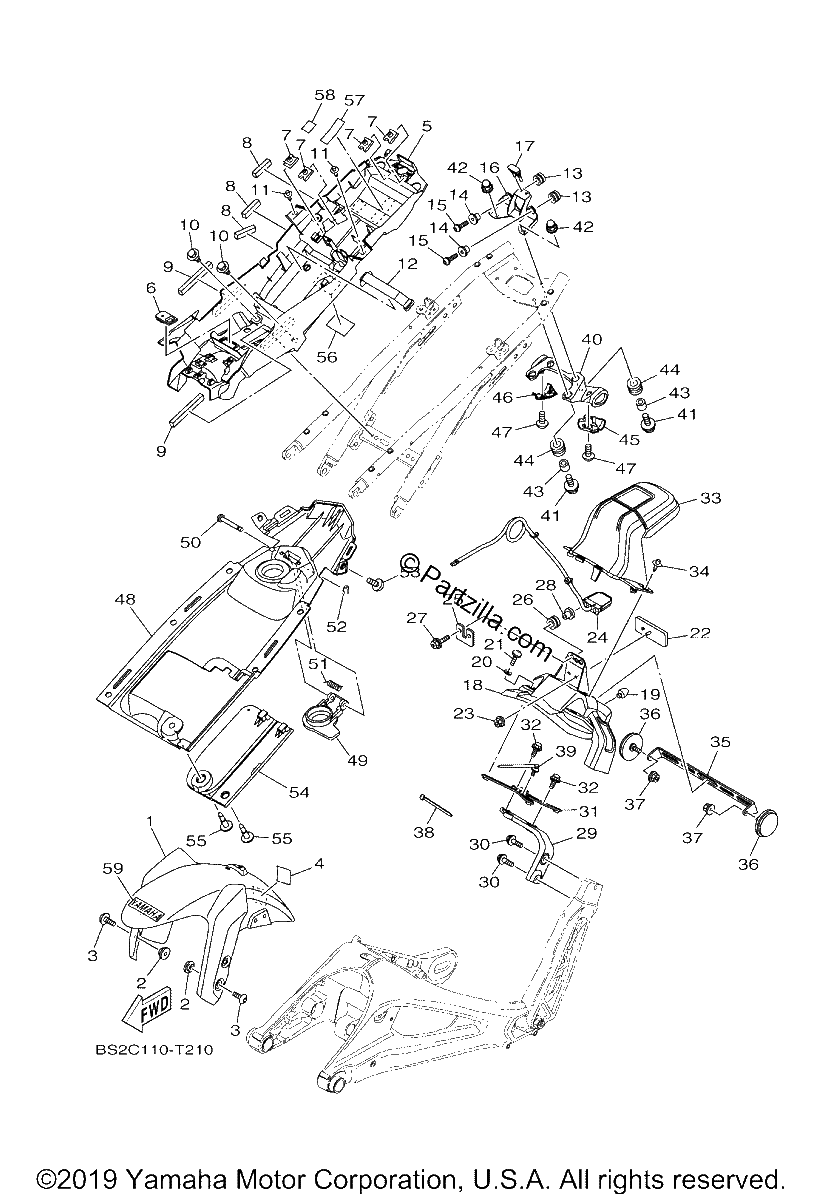

Diagrama de FENDER

Repuestos

#1
1RC-21511-00-P4
FENDER, FRONT
$138.33¢69 167
1
#1
1RC-21511-00-PA
FENDER, FRONT
$158.34¢79 172
1
#1
1RC-21511-00-P2
FENDER, FRONT
$214.90¢107 450
1
#2
90387-06153-00
COLLAR
$6.30¢3 151
1
#3
90110-06200-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#4
5UY-21269-00-00
SEAL
$6.08¢3 042
1
#5
BS2-8212B-00-00
BOX, BATTERY 1
$92.31¢46 155
1
#6
2DR-26199-00-00
PLUG, BLIND
$6.70¢3 352
1
#7
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#8
5PS-28372-00-00
DAMPER
$0.85¢426
1
#9
32D-84553-00-00
DAMPER
$6.51¢3 254
1
#10
90109-06202-00
BOLT
$2.98¢1 489
1
#11
90269-07007-00
RIVET
$3.68¢1 840
1
#12
1RC-82137-00-00
BAND, BATTERY
$7.24¢3 622
1
#13
90480-14052-00
GROMMET
$4.81¢2 403
1
#14
90387-06288-00
COLLAR
$3.39¢1 696
1
#15
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#16
BS2-2117E-00-00
BRACKET, TAILLIGHT
$22.26¢11 132
1
#17
682-44532-00-00
STOPPER, UPPER MOUNT
$2.78¢1 392
1
#18
BS2-21629-01-00
GUARD, MUD
$54.72¢27 358
1
#19
2MG-21639-00-00
DAMPER 2
$8.69¢4 347
1
#20
90387-06106-00
COLLAR
$5.93¢2 967
1
#21
90111-06061-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#22
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#23
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#24
BS2-84745-00-00
LICENCE LIGHT UNIT ASSY
$141.51¢70 754
1
#25
BS2-21681-00-00
PLATE, LICENSE
$3.10¢1 553
1
#26
90480-11009-00
GROMMET
$0.89¢443
1
#27
90159-05035-00
SCREW, WITH WASHER
$6.82¢3 410
1
#28
90387-05003-00
COLLAR
$5.08¢2 541
1
#29
BS2-21613-00-00
STAY, FENDER 1
$117.74¢58 868
1
#30
95817-08025-00
BOLT, FLANGE
$6.75¢3 375
1
#31
BS2-21614-00-00
STAY, FENDER 2
$26.42¢13 208
1
#32
95812-06014-00
BOLT, FLANGE
$5.97¢2 984
1
#33
BS2-2163A-00-00
COVER, REAR FENDER 1
$16.09¢8 044
1
#34
90269-06008-00
RIVET
$8.10¢4 048
1
#35
BS2-84751-00-00
BRACKET, LICENSE
$15.35¢7 676
1
#36
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#37
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#38
90464-16061-00
BAND
$7.68¢3 841
1
#39
90464-30011-00
CLAMP
$1.75¢874
1
#40
BS2-83318-00-00
STAY, FLASHER 1
$21.37¢10 683
1
#41
90105-06169-00
BOLT, FLANGE
$1.32¢661
1
#42
90176-06016-00
NUT, CAP
$4.05¢2 024
1
#43
90387-06260-00
COLLAR
$6.83¢3 415
1
#44
90480-14003-00
GROMMET
$6.83¢3 415
1
#45
BS2-283D3-00-00
COVER, FLASHER 1
$5.30¢2 651
1
#46
BS2-283D4-00-00
COVER, FLASHER 2
$6.32¢3 162
1
#47
97707-40012-00
SCREW, TAPPING
$7.31¢3 657
1
#48
BS2-21651-00-00
COVER, REAR FENDER
$24.68¢12 340
1
#49
1RC-2465B-00-00
CAP, ROTOR
$4.30¢2 151
1
#50
90249-03002-00
PIN
$4.94¢2 472
1
#51
90508-09007-00
SPRING, TORSION
$2.05¢1 023
1
#52
93430-02001-00
CIRCLIP
$7.31¢3 657
1
#53
90167-05079-00
SCREW, TAPPING
$3.33¢1 667
1
#54
BS2-2177E-00-00
LID
$6.01¢3 007
1
#55
90269-07007-00
RIVET
$3.68¢1 840
1
#56
14B-21668-00-00
LABEL, TIRE
$3.32¢1 662
1
#57
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#58
3TB-24877-A0-00
LABEL, CAUTION
$4.90¢2 449
1
#59
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
#59
99247-00080-00
EMBLEM, YAMAHA
$13.01¢6 503
1
