MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

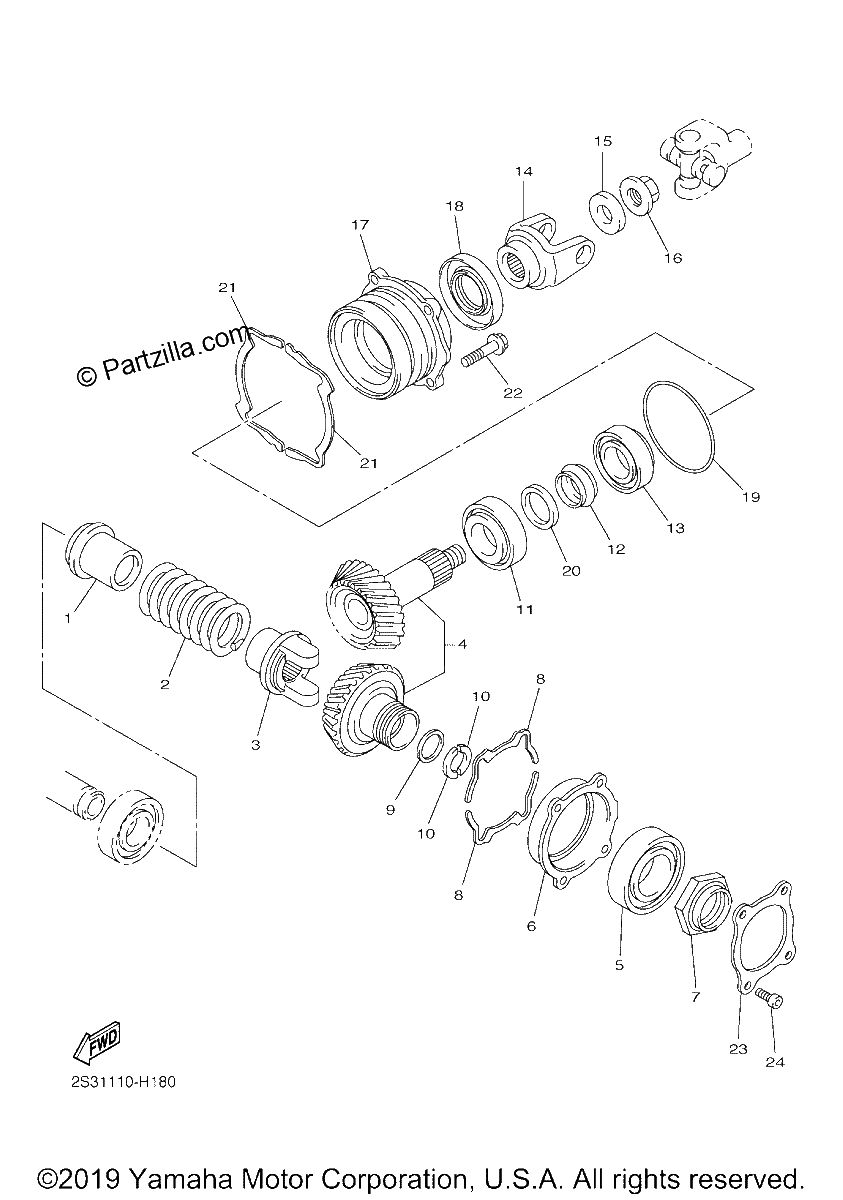

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#1
2S3-17524-00-00
HOLDER This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#2
2S3-17528-00-00
SPRING, DAMPER
$53.43¢26 713
1
#3
2S3-17527-00-00
Cam, Driven
$155.41¢77 706
1
#4
2S3-Y1754-00-00
MIDDLE GEAR COMP.
$843.74¢421 869
1
#5
93306-20903-00
BEARING
$90.53¢45 263
1
#6
2S3-15163-00-00
HOUSING, BEARING 1
$165.78¢82 888
1
#7
90179-44001-00
Nut
$28.61¢14 306
1
#8
2S3-17531-00-00
SHIM, PINION
$11.85¢5 925
1
#8
2S3-17531-10-00
SHIM, PINION
$11.85¢5 925
1
#8
2S3-17531-20-00
SHIM, PINION
$11.85¢5 925
1
#8
2S3-17531-30-00
SHIM, PINION
$11.85¢5 925
1
#8
2S3-17531-40-00
SHIM, PINION
$11.85¢5 925
1
#8
2S3-17531-50-00
SHIM, PINION
$11.85¢5 925
1
#9
90201-27014-00
WASHER, plate
$36.29¢18 144
1
#10
2S3-17529-00-00
WASHER, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#11
93332-000A1-00
BEARING
$65.66¢32 831
1
#12
2S3-17571-00-00
SPACER, EXPANSION This item has been discontinued and may not be available. Contact us for more information.
$20.92¢10 462
1
#13
93332-000A0-00
BEARING
$74.34¢37 169
1
#14
2S3-17556-01-00
YOKE, JOINT
$202.27¢101 137
1
#15
90208-22004-00
WASHER, CONICAL SPRING
$24.28¢12 138
1
#16
90179-20015-00
NUT
$28.96¢14 481
1
#17
2S3-17551-00-00
HOUSING, BEARING This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#18
93102-45009-00
Oil Seal
$24.16¢12 081
1
#19
93210-94001-00
O-Ring
$10.34¢5 169
1
#20
90201-35014-00
WASHER, plate
$27.50¢13 750
1
#21
2S3-17537-50-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-40-00
SHIM, THRUST
$12.86¢6 431
1
#21
2S3-17537-30-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-20-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-10-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#21
2S3-17537-00-00
SHIM, THRUST This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#22
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
1
#23
2S3-17446-00-00
PLATE
$95.44¢47 719
1
#24
91317-08025-00
BOLT
$7.43¢3 713
1
