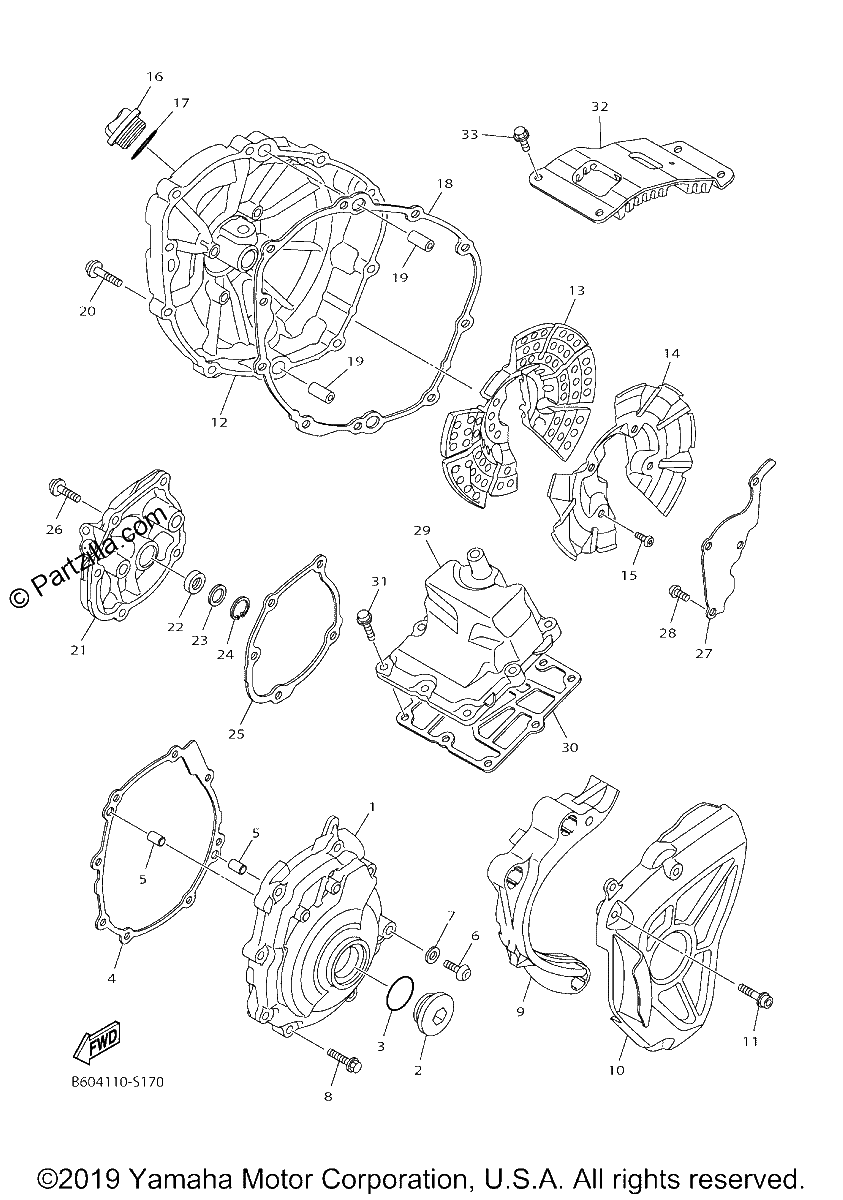

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$301.95¢150 975
#2
PLUG, STRAIGHT SCREW
$34.05¢17 025
#3
O-RING
$8.21¢4 106
#4
GASKET, CRANKCASE COVER 1
$16.07¢8 038
#5
PIN, DOWEL
$6.25¢3 125
#6
BOLT, BUTTON HEAD
$7.94¢3 969
#7
GASKET
$3.67¢1 838
#8
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
#9
GUIDE, INLET
$49.07¢24 537
#10
COVER, CHAIN CASE
$26.39¢13 194
#11
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
#12
COVER, CRANKCASE 2
$143.49¢71 744
#13
DAMPER 1
$31.84¢15 919
#14
COVER
$28.96¢14 481
#15
SCREW
$7.56¢3 781
#16
PLUG, OIL
$12.52¢6 262
#17
O-RING
$7.63¢3 813
#18
GASKET, CRANKCASE COVER 2
$23.52¢11 763
#19
PIN, DOWEL
$4.13¢2 063
#20
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
#21
COVER, OIL PUMP
$85.41¢42 706
#22
OIL SEAL
$9.14¢4 569
#23
WASHER, PLATE (replaces 90201-128C9-00)
$7.48¢3 738
#24
CIRCLIP
$1.06¢531
#25
GASKET, OIL PUMP COVER 1
$11.90¢5 950
#26
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
#27
PLATE, BREATHER
$3.75¢1 875
#28
SCREW
$7.56¢3 781
#29
COVER
$126.14¢63 069
#30
GASKET, CRANKCASE COVER 3
$11.06¢5 531
#31
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
#32
PLATE
$58.34¢29 169
#33
BOLT, HEXAGON SOCKET HEAD
$3.09¢1 544
