CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

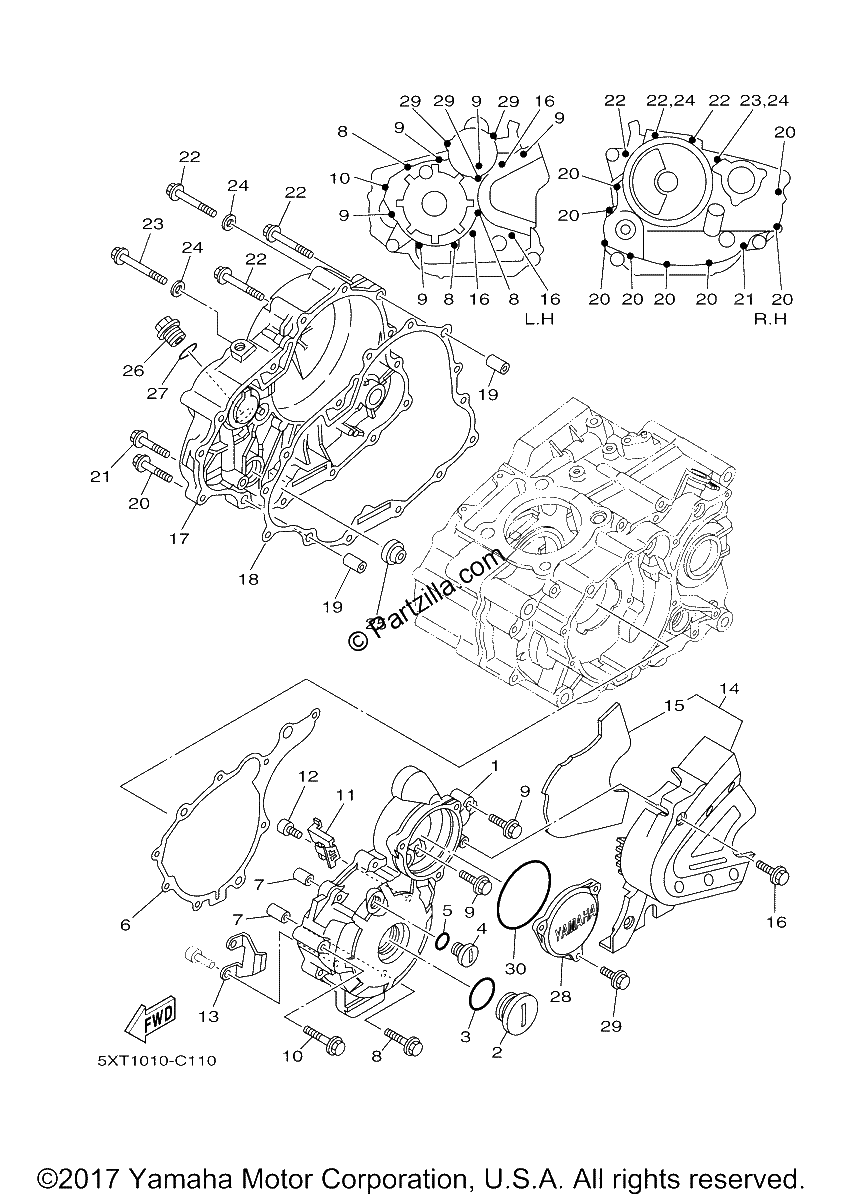

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5XT-15411-02-00
COVER, CRANKCASE 1
$182.99¢91 494
1
#2
90340-32069-00
PLUG,STRAIGHT SCRW
$30.96¢15 481
1
#3
93210-32172-00
O-Ring
$6.88¢3 438
1
#4
90340-14151-00
PLUG,STRAIGHT SCRW
$16.90¢8 450
1
#5
93210-14369-00
O-Ring
$6.91¢3 456
1
#6
4D3-15451-00-00
GASKET, CRANKCASE CO
$15.59¢7 794
1
#7
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#8
95024-06040-00
Bolt, Flange
$8.50¢4 250
1
#9
95024-06030-00
BOLT,FLANGE
$7.34¢3 669
1
#10
95024-06045-00
BOLT, FLANGE (SMALL HEAD)
$8.21¢4 106
1
#11
90465-16011-00
Clamp
$4.66¢2 331
1
#12
91312-05012-00
BOLT (replaces 90110-05032-00)
$3.02¢1 513
1
#13
5XT-15113-00-00
PLATE
$15.49¢7 744
1
#14
5XT-15430-00-00
CRANKCASE COVER ASSY
$98.06¢49 031
1
#15
5XT-15316-00-00
DAMPER, ENGINE MOUNT
$17.94¢8 969
1
#16
95024-06016-00
BOLT, WASHER BASED
$7.94¢3 969
1
#17
5XT-15421-02-00
COVER, CRANKCASE 2
$173.92¢86 962
1
#18
4D3-15461-00-00
GASKET, CRANKCASE CO
$24.57¢12 288
1
#19
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#20
95024-06025-00
Bolt, Flange
$3.06¢1 531
1
#21
95024-06035-00
BOLT,FLANGE(4BH)
$8.21¢4 106
1
#22
95024-06050-00
Bolt, Flange
$8.24¢4 119
1
#23
95024-06055-00
BOLT, FLANGE (SMALL HEAD)
$5.84¢2 919
1
#24
90430-06014-00
GASKET
$8.25¢4 125
1
#25
3Y1-15361-00-00
GAUGE,LEVEL
$30.38¢15 188
1
#26
90340-20002-00
PLUG, STRAIGHT SCREW
$20.13¢10 063
1
#27
93210-19123-00
O-Ring
$8.24¢4 119
1
#28
5XT-15415-00-00
COVER, GENERATOR
$51.70¢25 850
1
#29
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#30
93210-74M68-00
O-Ring
$8.56¢4 281
1
