FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

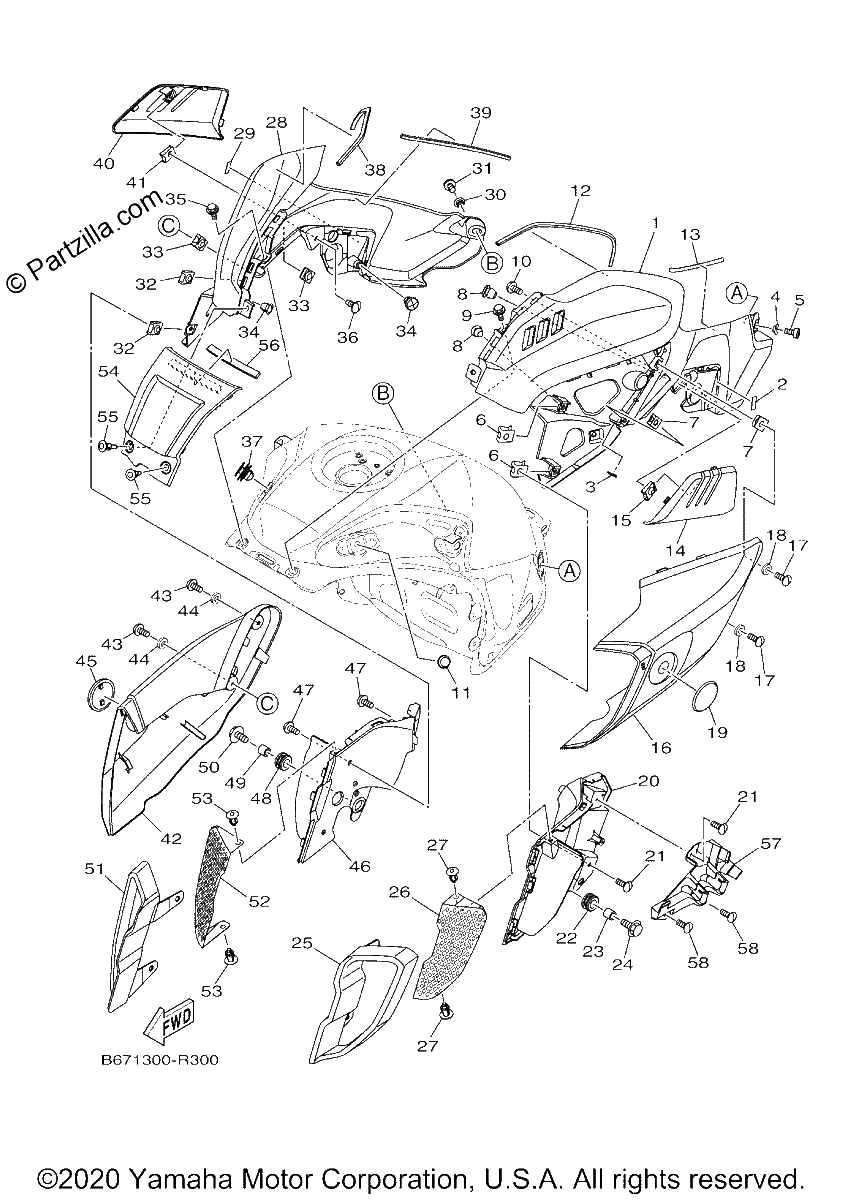

Diagrama de FUEL TANK 2

Repuestos

#1
B67-24129-00-P1
COVER, SIDE 1
$185.50¢92 748
1
#1
B67-24129-00-P4
COVER, SIDE 1
$185.50¢92 748
1
#2
1S4-2476U-00-00
PROTECTOR 1
$2.74¢1 368
1
#3
90520-01001-00
DAMPER, PLATE
$7.10¢3 548
1
#4
90387-05035-00
COLLAR
$5.51¢2 754
1
#5
98902-05008-00
SCREW, BIND
$1.35¢673
1
#6
90183-05042-00
NUT, SPRING
$1.15¢575
1
#7
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#8
90338-07180-00
PLUG
$6.22¢3 111
1
#9
90110-05014-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
1
#10
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#11
90269-09006-00
RIVET
$1.64¢822
1
#12
4C8-21746-00-00
Damper
$1.79¢897
1
#13
5YU-2177N-00-00
DAMPER, LOCATING 4
$1.23¢615
1
#14
B67-28345-00-00
MOLE 1
$11.76¢5 882
1
#15
90183-05042-00
NUT, SPRING
$1.15¢575
1
#16
B67-2137W-00-P1
SCOOP, AIR 1
$223.92¢111 958
1
#17
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#18
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#19
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#20
B67-2172E-00-P1
STAY, SIDE COVER 1
$83.82¢41 912
1
#21
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#22
90480-14003-00
GROMMET
$6.83¢3 415
1
#23
90387-06260-00
COLLAR
$6.83¢3 415
1
#24
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#25
B67-27475-00-33
CAP 1
$76.00¢38 002
1
#25
B67-27475-00-P2
CAP 1
$87.56¢43 781
1
#26
B67-2837N-00-00
GRILL, AIR INTAKE 1
$42.14¢21 068
1
#27
90269-06019-00
RIVET
$3.19¢1 593
1
#28
B67-24139-00-P4
COVER, SIDE 2
$144.45¢72 226
1
#28
B67-24139-00-P1
COVER, SIDE 2
$185.50¢92 748
1
#29
1S4-2476U-00-00
PROTECTOR 1
$2.74¢1 368
1
#30
90387-05035-00
COLLAR
$5.51¢2 754
1
#31
98902-05008-00
SCREW, BIND
$1.35¢673
1
#32
90183-05042-00
NUT, SPRING
$1.15¢575
1
#33
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#34
90338-07180-00
PLUG
$6.22¢3 111
1
#35
90110-05014-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
1
#36
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#37
90269-09006-00
RIVET
$1.64¢822
1
#38
4C8-21746-00-00
Damper
$1.79¢897
1
#39
5YU-2177N-00-00
DAMPER, LOCATING 4
$1.23¢615
1
#40
B67-28346-00-00
MOLE 2
$15.55¢7 774
1
#41
90183-05042-00
NUT, SPRING
$1.15¢575
1
#42
B67-2137X-00-P1
SCOOP, AIR 2
$223.92¢111 958
1
#43
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#44
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#45
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#46
B67-2174E-00-P1
STAY, SIDE COVER 2
$104.17¢52 083
1
#47
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#48
90480-14003-00
GROMMET
$6.83¢3 415
1
#49
90387-06260-00
COLLAR
$6.83¢3 415
1
#50
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#51
B67-27476-00-33
CAP 2
$87.73¢43 867
1
#51
B67-27476-00-P2
CAP 2
$80.90¢40 451
1
#52
B67-2837R-00-00
GRILL, AIR INTAKE 2
$41.16¢20 579
1
#53
90269-06019-00
RIVET
$3.19¢1 593
1
#54
B67-241B1-00-P4
COVER, TANK
$138.70¢69 351
1
#54
B67-241B1-00-P1
COVER, TANK
$113.62¢56 810
1
#55
90269-06008-00
RIVET
$8.10¢4 048
1
#56
4B5-2174X-00-00
Damper
$7.23¢3 617
1
#57
B67-2172M-00-00
BRACKET 3
$14.27¢7 136
1
#58
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
