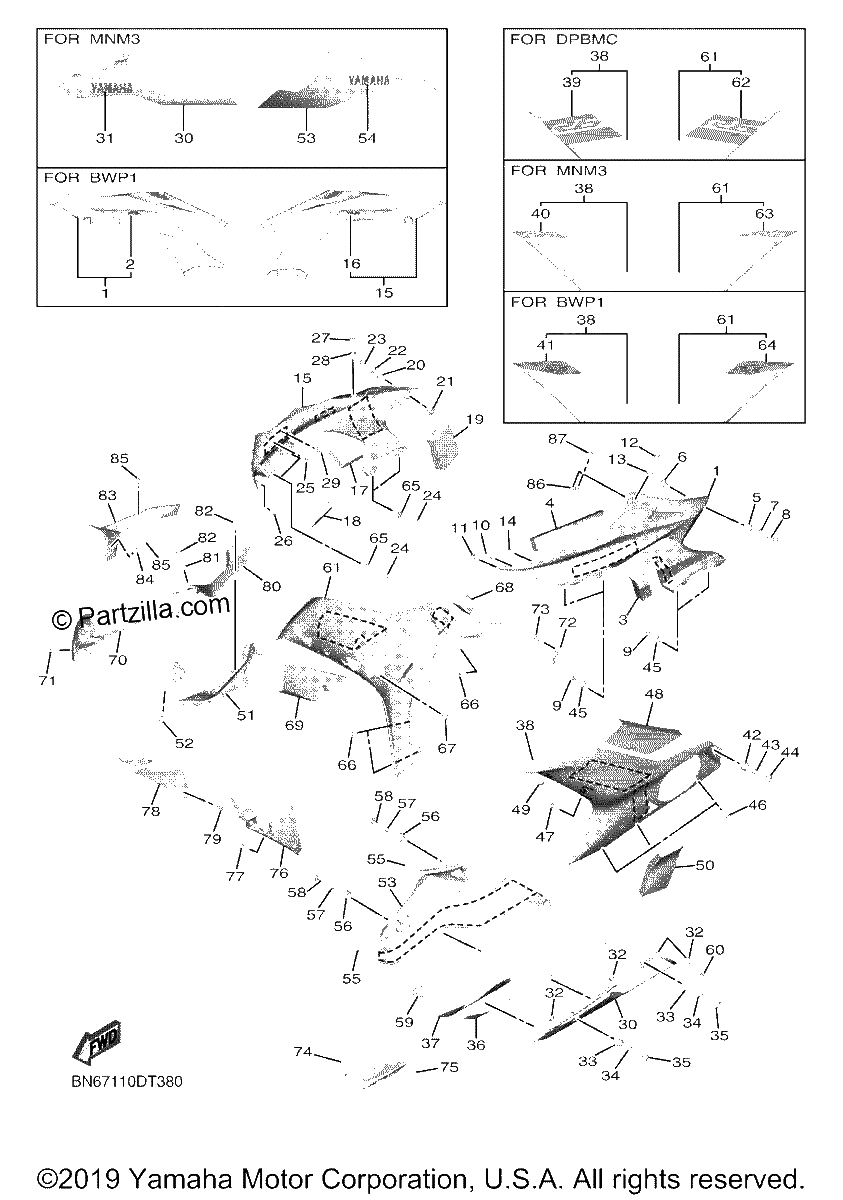

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER 7
$374.30¢187 150
#1
COVER 7
$376.11¢188 056
#1
COVER ASSY 7
$399.64¢199 819
#2
GRAPHIC 5
$25.53¢12 763
#3
DAMPER, PLATE
$1.93¢963
#4
SEAL 12
$2.91¢1 456
#5
Grommet
$23.96¢11 981
#6
COLLAR
$6.19¢3 094
#7
WASHER, PLATE
$8.45¢4 225
#8
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#9
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#10
NUT, SPRING
$4.97¢2 488
#11
Clamp
$0.72¢363
#12
SCREW,SPEC'L SHAPE
$5.07¢2 537
#13
WASHER, PLATE
$4.05¢2 025
#14
Clip
$1.07¢538
#15
COVER 8
$314.93¢157 463
#15
COVER 8
$376.11¢188 056
#15
COVER ASSY 8
$399.64¢199 819
#16
GRAPHIC 6
$32.73¢16 363
#17
DAMPER, PLATE
$1.93¢963
#18
DAMPER, PLATE
$1.82¢913
#19
SEAL 26
$2.91¢1 456
#20
Grommet
$23.96¢11 981
#21
COLLAR
$6.19¢3 094
#22
WASHER, PLATE
$8.45¢4 225
#23
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#24
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#25
NUT, SPRING
$4.97¢2 488
#26
Clamp
$0.72¢363
#27
SCREW,SPEC'L SHAPE
$5.07¢2 537
#28
WASHER, PLATE
$4.05¢2 025
#29
Clip
$1.07¢538
#30
COVER, UNDER
$152.25¢76 125
#30
COVER, UNDER
$148.45¢74 225
#30
COVER, UNDER
$168.81¢84 406
#31
EMBLEM, YAMAHA
$21.95¢10 975
#32
NUT, SPRING
$2.82¢1 412
#33
GROMMET
$7.43¢3 713
#34
COLLAR
$7.43¢3 713
#35
bolt
$4.00¢2 000
#36
SEAT 1
$35.19¢17 594
#37
DAMPER, locating 1
$6.64¢3 319
#38
PANEL ASSY 1
$325.32¢162 663
#38
PANEL ASSY 1
$304.05¢152 025
#38
PANEL ASSY 1
$323.61¢161 806
#39
GRAPHIC 1
$58.38¢29 188
#40
GRAPHIC 1
$20.56¢10 281
#41
GRAPHIC 1
$34.04¢17 019
#42
GROMMET
$7.43¢3 713
#43
COLLAR
$7.43¢3 713
#44
bolt
$4.00¢2 000
#45
NUT, SPRING
$2.82¢1 412
#46
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#47
RIVET
$6.45¢3 225
#48
DAMPER 2
$7.13¢3 563
#49
DAMPER
$7.60¢3 800
#50
DAMPER, PLATE
$4.34¢2 169
#51
COVER 1
$34.98¢17 488
#52
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#53
COVER, UNDER 2
$150.59¢75 294
#53
COVER, UNDER 2
$154.47¢77 238
#53
COVER, UNDER 2
$140.00¢70 000
#54
EMBLEM, YAMAHA
$21.95¢10 975
#55
NUT, SPRING
$2.82¢1 412
#56
GROMMET
$7.43¢3 713
#57
COLLAR
$7.43¢3 713
#58
bolt
$4.00¢2 000
#59
SEAT 2
$30.47¢15 237
#60
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#61
PANEL ASSY 2
$250.61¢125 306
#61
PANEL ASSY 2
$325.77¢162 888
#61
PANEL ASSY 2
$361.90¢180 950
#62
GRAPHIC 2
$58.38¢29 188
#63
GRAPHIC 2
$20.56¢10 281
#64
GRAPHIC 2
$45.85¢22 925
#65
NUT, SPRING
$2.82¢1 412
#66
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#67
RIVET
$6.45¢3 225
#68
DAMPER, PLATE
$1.34¢669
#69
DAMPER 4
$7.65¢3 825
#70
COVER 2
$34.98¢17 488
#71
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#72
BRACKET 4
$5.58¢2 788
#73
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#74
PANEL, INNER 1
$93.61¢46 806
#75
NUT, SPRING
$2.82¢1 412
#76
PANEL, INNER 2
$60.51¢30 256
#77
RIVET
$8.80¢4 400
#78
PANEL, INNER 3
$70.92¢35 463
#79
RIVET
$8.80¢4 400
#80
PANEL, console 1
$19.26¢9 631
#81
DAMPER
$6.45¢3 225
#82
RIVET
$8.80¢4 400
#83
PANEL, CONSOLE 2
$19.30¢9 650
#84
DAMPER
$6.45¢3 225
#85
RIVET
$8.80¢4 400
#86
STAY 2
$8.60¢4 300
#87
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
