COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

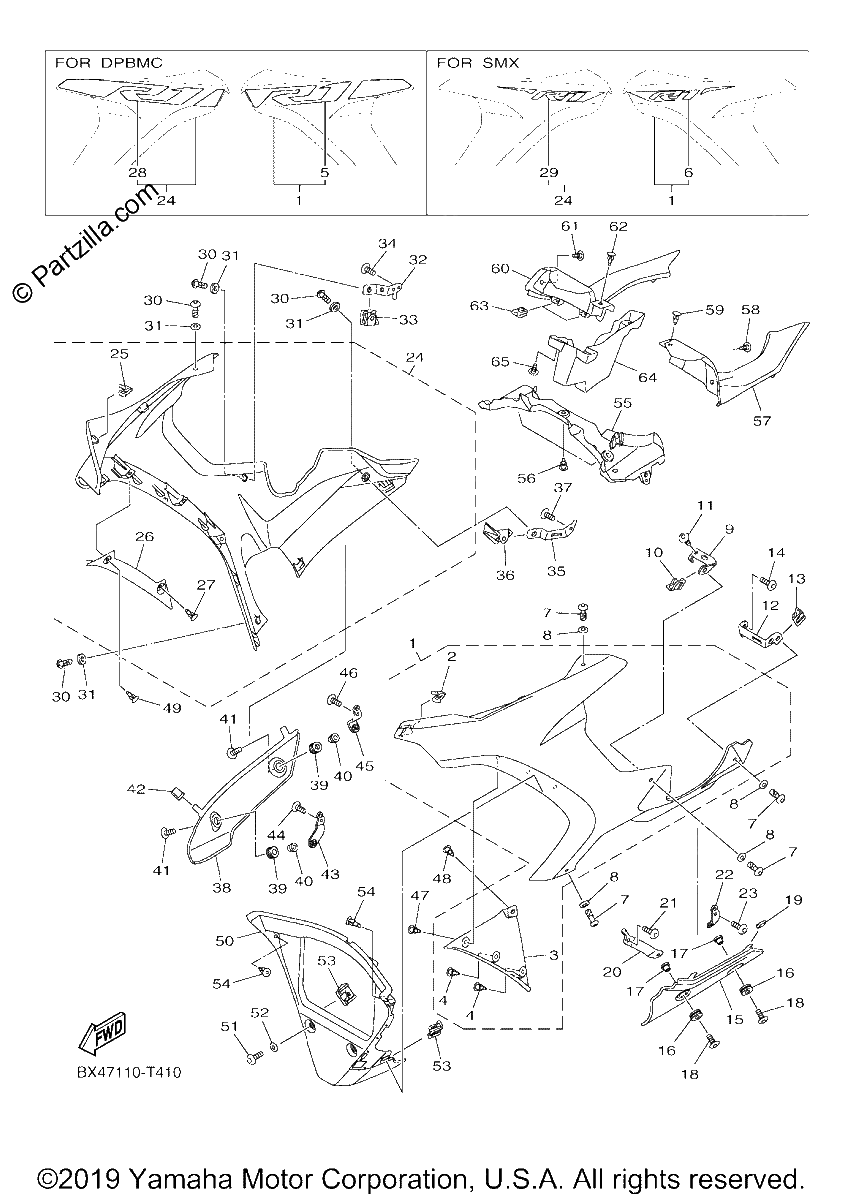

Diagrama de COWLING 2

Repuestos

#1
2CR-Y283U-E0-P4
PANEL ASSEMBLY 1
$478.53¢239 263
1
#1
2CR-Y283U-F0-P2
PANEL ASSEMBLY 1
$478.53¢239 263
1
#2
90468-040A0-00
CLIP
$6.83¢3 415
1
#3
2CR-2836K-00-00
PANEL, INNER 1
$8.50¢4 249
1
#4
90269-06008-00
RIVET
$8.10¢4 048
1
#5
BX4-28391-20-00
GRAPHIC 1
$48.51¢24 254
1
#6
BX4-28391-30-00
GRAPHIC 1
$34.90¢17 451
1
#7
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#8
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#9
2CR-2833K-00-00
BRACKET 13
$10.88¢5 440
1
#10
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#11
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#12
2CR-2833L-00-00
BRACKET, 14
$10.43¢5 215
1
#13
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#14
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#15
2CR-2834V-10-00
PROTECTOR 1
$195.44¢97 721
1
#16
90480-14477-00
GROMMET
$3.53¢1 765
1
#17
90387-06307-00
COLLAR
$4.38¢2 191
1
#18
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#19
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#20
2CR-2833R-00-00
BRACKET, 17
$14.34¢7 170
1
#21
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#22
2CR-2833T-00-00
BRACKET, 18
$12.60¢6 302
1
#23
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#24
2CR-Y283V-E0-P4
PANEL ASSEMBLY 2
$478.53¢239 263
1
#24
2CR-Y283V-F0-P2
PANEL ASSEMBLY 2
$478.53¢239 263
1
#25
90468-040A0-00
CLIP
$6.83¢3 415
1
#26
2CR-2836L-00-00
PANEL, INNER 2
$8.26¢4 129
1
#27
90269-06008-00
RIVET
$8.10¢4 048
1
#28
BX4-28392-20-00
GRAPHIC 2
$41.00¢20 499
1
#29
BX4-28392-30-00
GRAPHIC 2
$34.90¢17 451
1
#30
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#31
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#32
2CR-2833M-00-00
BRACKET, 15
$8.26¢4 129
1
#33
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#34
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#35
2CR-2833N-00-00
BRACKET, 16
$8.26¢4 129
1
#36
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#37
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#38
2CR-2834W-10-00
PROTECTOR 2
$217.72¢108 859
1
#39
90480-14477-00
GROMMET
$3.53¢1 765
1
#40
90387-06307-00
COLLAR
$4.38¢2 191
1
#41
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#42
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#43
2CR-2833U-00-00
BRACKET, 19
$13.86¢6 929
1
#44
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#45
2CR-2833V-00-00
BRACKET, 20
$10.95¢5 474
1
#46
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#47
90269-06001-00
RIVET
$5.93¢2 967
1
#48
90269-06008-00
RIVET
$8.10¢4 048
1
#49
90269-06001-00
RIVET
$5.93¢2 967
1
#50
2CR-2836M-00-P5
PANEL, INNER 3
$218.98¢109 491
1
#50
2CR-2836M-00-P2
PANEL, INNER 3 | UR FOR BWP1
$233.75¢116 874
1
#51
90149-06302-00
SCREW
$4.70¢2 352
1
#52
90387-06309-00
COLLAR
$6.80¢3 398
1
#53
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#54
90269-06008-00
RIVET
$8.10¢4 048
1
#55
2CR-23174-00-00
STAY, HEADLIGHT
$23.68¢11 839
1
#56
90269-06008-00
RIVET
$8.10¢4 048
1
#57
2CR-2837L-00-00
PANEL, CONSOLE 1
$17.31¢8 654
1
#58
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#59
90269-06008-00
RIVET
$8.10¢4 048
1
#60
2CR-2837M-00-00
PANEL, CONSOLE 2
$15.65¢7 826
1
#61
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#62
90269-06008-00
RIVET
$8.10¢4 048
1
#63
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#64
2CR-2838K-00-00
BOX 1
$13.70¢6 848
1
#65
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
