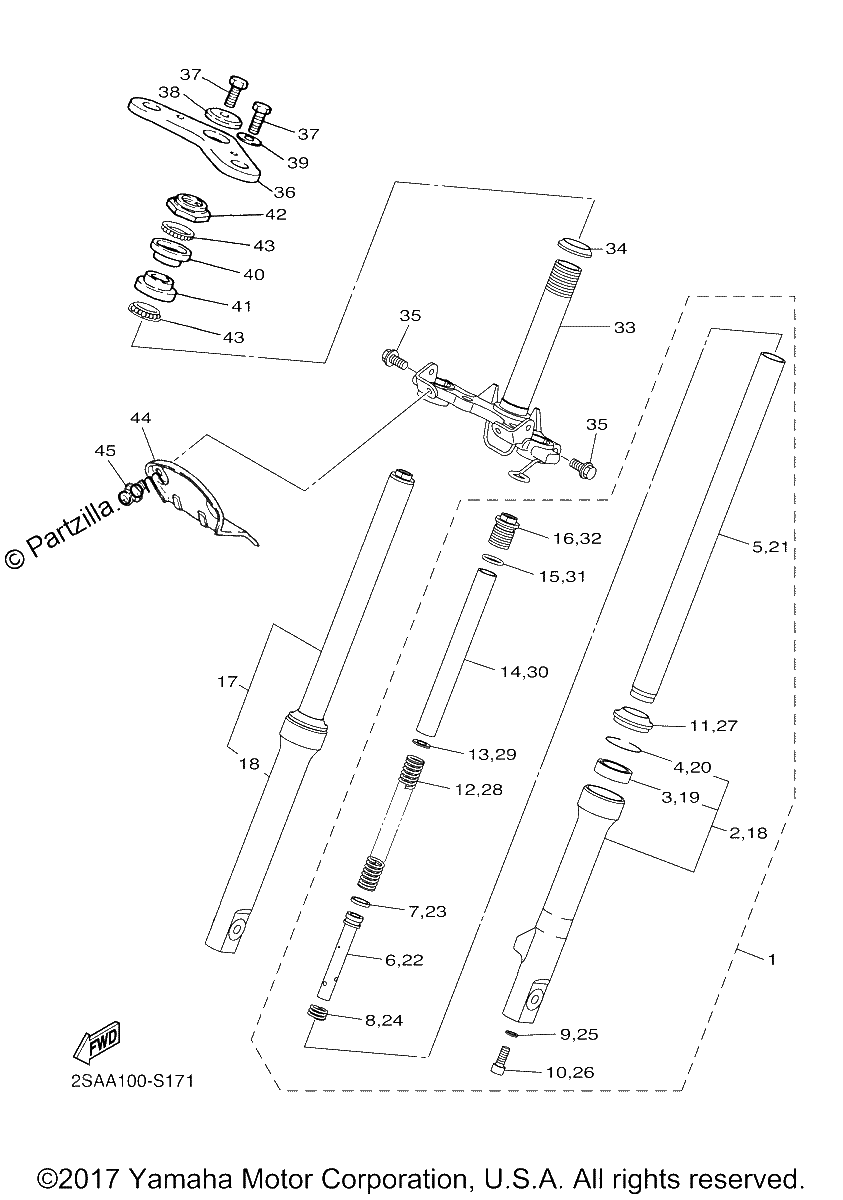

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$195.52¢97 762
#2
. .OUTER TUBE COMP.
$90.98¢45 488
#3
OIL SEAL (replaces BE8-F3145-00-00)
$10.76¢5 382
#4
. . ..RING, SNAP (replaces 2SA-23153-00-00)
$3.21¢1 604
#5
. . INNER TUBE COMP. 1
$116.59¢58 293
#6
. .PISTON, FRONT FORK
$17.23¢8 614
#7
. .RING, PISTON
$3.62¢1 811
#8
. .SPRING, REBOUND
$8.11¢4 054
#9
GASKET (replaces 2SA-F3479-00-00)
$3.47¢1 737
#10
. .BOLT 2
$3.48¢1 742
#11
SEAL, DUST (replaces BE8-F3144-00-00)
$8.31¢4 157
#12
SPRING, FRONT FORK
$6.15¢3 076
#13
WASHER
$2.16¢1 081
#14
SPACER
$6.36¢3 180
#15
O-RING (replaces 2SA-F3147-00-00)
$0.79¢397
#16
Nut
$18.14¢9 068
#17
FRONT FORK ASSY (R.H)
$197.70¢98 848
#18
. .OUTER TUBE COMP.
$90.98¢45 488
#19
OIL SEAL (replaces BE8-F3145-00-00)
$10.76¢5 382
#20
. . ..RING, SNAP (replaces 2SA-23153-00-00)
$3.21¢1 604
#21
. . INNER TUBE COMP. 1
$116.59¢58 293
#22
. .PISTON, FRONT FORK
$17.23¢8 614
#23
. .RING, PISTON
$3.62¢1 811
#24
. .SPRING, REBOUND
$8.11¢4 054
#25
GASKET (replaces 2SA-F3479-00-00)
$3.47¢1 737
#26
. .BOLT 2
$3.48¢1 742
#27
SEAL, DUST (replaces BE8-F3144-00-00)
$8.31¢4 157
#28
SPRING, FRONT FORK
$6.15¢3 076
#29
WASHER
$2.16¢1 081
#30
SPACER
$6.36¢3 180
#31
O-RING (replaces 2SA-F3147-00-00)
$0.79¢397
#32
Nut
$18.14¢9 068
#33
UNDER BRACKET COMP.
$145.45¢72 726
#34
RACE, BALL 4
$5.97¢2 984
#35
BOLT, FLANGE
$3.29¢1 644
#36
CROWN, HANDLE
$45.13¢22 563
#37
BOLT, FLANGE
$10.05¢5 026
#38
WASHER
$6.22¢3 111
#39
WASHER, PLATE
$6.22¢3 111
#40
RACE, BALL 2
$28.60¢14 300
#41
RACE, BALL 3
$28.76¢14 381
#42
RACE, BALL 1
$40.04¢20 022
#43
BALL
$8.10¢4 048
#44
PLATE 1
$36.50¢18 251
#45
SCREW, WITH WASHER
$6.75¢3 375
