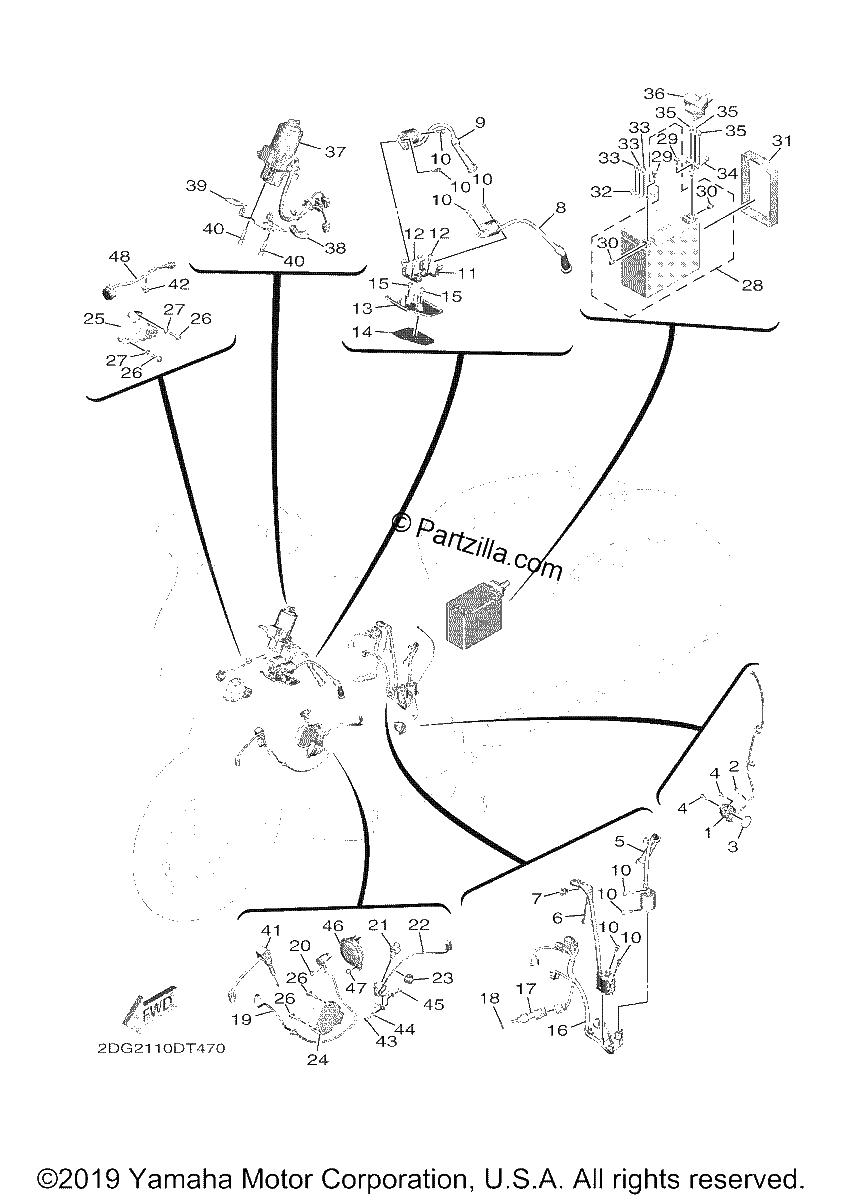

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
NEUTRAL SWITCH ASSY
$41.53¢20 763
#2
CLAMP
$36.77¢18 383
#3
O-RING
$7.07¢3 536
#4
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#5
IGN. COIL SUB-ASSY
$80.37¢40 187
#6
IGN. COIL SUB-ASSY
$89.54¢44 769
#7
CLAMP(3SK)
$6.99¢3 496
#8
IGN. COIL SUB-ASSY
$80.37¢40 187
#9
IGN. COIL SUB-ASSY
$65.65¢32 827
#10
BOLT, HEXAGON SOCKET HEAD
$7.72¢3 858
#11
BRACKET, COIL
$15.02¢7 510
#12
BOLT, BUTTON HEAD
$2.24¢1 121
#13
PLATE 2
$12.28¢6 141
#14
SHEET 1
$3.55¢1 777
#15
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
#16
LEAD WIRE ASSY
$85.17¢42 585
#17
THERMO UNIT
$200.34¢100 171
#18
WASHER,PLATE
$3.16¢1 581
#19
Sensor, Cam Position
$98.49¢49 243
#20
BOLT
$1.35¢673
#21
OIL PRESSURE SWITC
$66.99¢33 494
#22
LEAD WIRE ASSY
$41.68¢20 838
#23
CLAMP
$6.87¢3 433
#24
RECTIFIER REGULATOR ASSY
$164.19¢82 093
#25
RECTIFIER REGULATOR ASSY
$164.19¢82 093
#26
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#27
WASHER, PLATE
$7.79¢3 893
#28
YTX20LBS YUASA BATT
No Disponible
#29
BOLT, SPECIAL
$12.63¢6 313
#30
Nut
$12.63¢6 313
#31
BAND, BATTERY
$12.88¢6 440
#32
TERMINAL 1
$17.55¢8 775
#33
SCREW, PAN HEAD
$7.03¢3 513
#34
TERMINAL
$23.87¢11 937
#35
SCREW, PAN HEAD
$7.03¢3 513
#36
CAP
$20.90¢10 448
#37
Main Switch Assy
$359.43¢179 716
#38
PROTECTER, WIRE HARNESS
$10.63¢5 313
#39
GUIDE, CABLE
$36.28¢18 141
#40
BOLT
$6.76¢3 381
#41
STOP SWITCH ASSY
$46.52¢23 259
#42
Clamp
$1.49¢747
#43
BOLT
$6.75¢3 375
#44
WASHER, PLATE
$0.89¢443
#45
NUT, HEXAGON (replaces 95307-05600-00)
$1.24¢621
#46
HORN
$40.18¢20 091
#47
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
#48
BUZZER
$38.49¢19 245
