SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

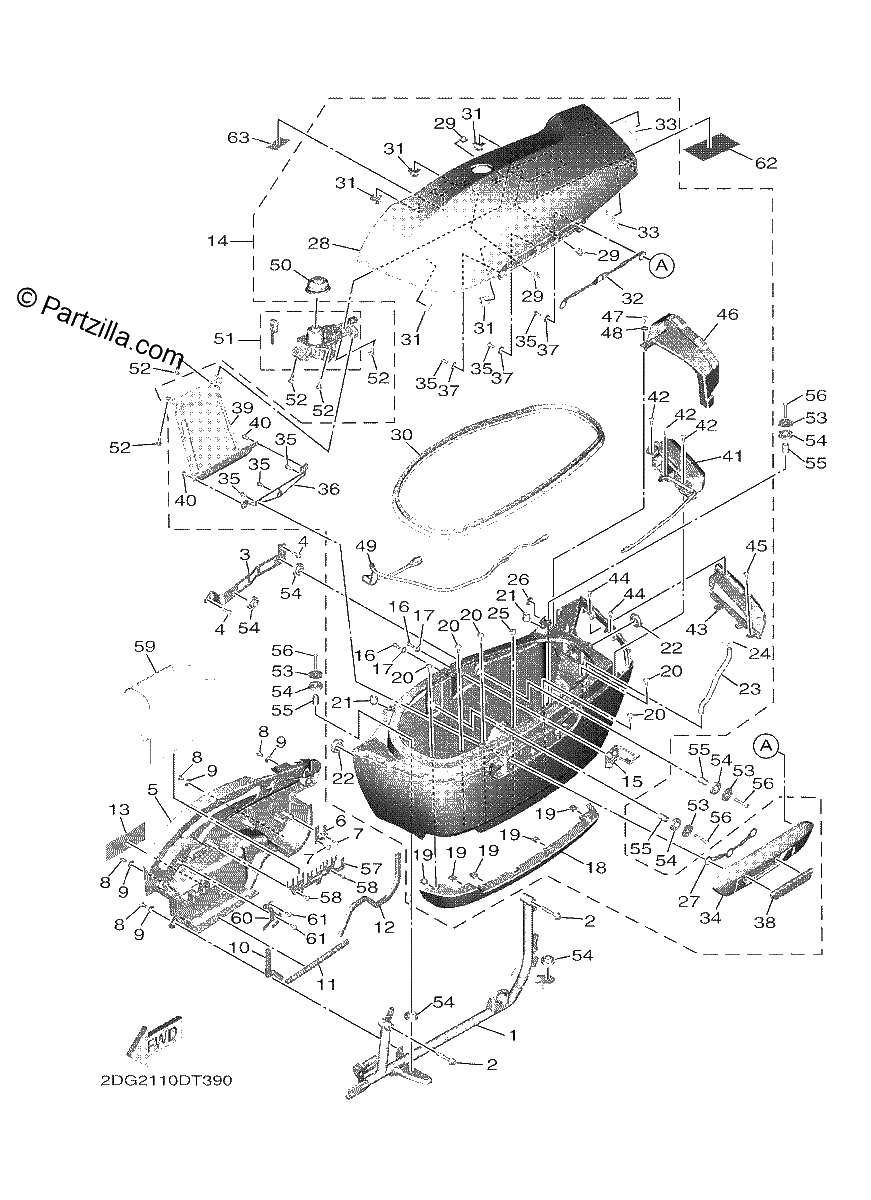

Diagrama de SADDLEBAG

Repuestos

#1
2DF-28473-00-00
FRAME, SADDLEBAG 1
$231.59¢115 794
1
#2
95D32-08045-00
BOLT, FLANGE DEEP RECESS
$0.96¢481
1
#3
2DF-28413-00-00
STAY, FRONT GUARD 1
$24.30¢12 150
1
#4
95027-06016-00
Bolt, Flange
$7.48¢3 738
1
#5
2DF-2846T-00-00
COVER, SIDE BOX 1
$85.65¢42 825
1
#6
2DG-28426-00-00
BRACKET 1
$6.06¢3 031
1
#7
97702-50014-00
SCREW, TAPPING
$7.35¢3 675
1
#8
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#9
90387-06071-00
COLLAR
$8.24¢4 119
1
#10
2DF-28425-00-00
DAMPER 3
$3.73¢1 863
1
#11
90520-08005-00
DAMPER, PLATE
$2.86¢1 431
1
#12
2DF-28455-00-00
DAMPER, 4
$11.90¢5 950
1
#13
4GY-2414H-00-00
DAMPER, PLATE 1
$2.61¢1 306
1
#14
2DF-28410-00-P2
SADDLEBAG ASSY., 1 (VIVID PURPLISH BLUE COCKTAIL 5)
$3316.24¢1 658 119
1
#15
2DF-28494-00-00
HOOK 3
$71.76¢35 881
1
#16
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#17
90201-06055-00
WASHER, PLATE
$3.50¢1 750
1
#18
2DF-2843J-00-00
COVER 3
$76.76¢38 381
1
#19
90183-05073-00
Nut, Spring
$12.75¢6 375
1
#20
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#21
2DF-28415-00-00
DAMPER 1
$4.40¢2 200
1
#22
2DF-2847F-00-00
SEAL 5
$2.92¢1 463
1
#23
90445-123G4-00
. HOSE (L170)
$4.75¢2 375
1
#24
90467-12M11-00
CLIP,SCISSOR
$2.71¢1 356
1
#25
90338-10132-00
PLUG
$3.14¢1 569
1
#26
2DF-2846F-00-00
SEAL 4
$2.97¢1 487
1
#27
2DF-284BE-00-00
STAY, 7
$18.77¢9 388
1
#28
2DF-28448-00-P3
.. SADDLEBAG 3 (VIVID PURPLISH BLUE COCKTAIL 5)
$352.39¢176 194
1
#29
90183-062A0-00
Nut, Spring
$4.15¢2 075
1
#30
2DF-28429-00-00
SEAL 2
$34.16¢17 081
1
#31
2DF-81128-00-00
Clamp
$3.49¢1 744
1
#32
2DF-284BG-00-00
STAY, 9
$24.67¢12 337
1
#33
2DF-284BP-00-00
SEAL, 16
$2.35¢1 175
1
#34
2DF-2843S-00-00
HINGE SUB-ASSY., 1
$535.10¢267 550
1
#35
90111-06102-00
. BOLT,HEX SOCKET BUTTON
$6.14¢3 069
1
#36
2DF-2846M-00-00
BRACKET, HINGE
$24.13¢12 063
1
#37
90201-06557-00
WASHER, PLATE
$3.29¢1 644
1
#38
2DF-85130-00-00
REAR REFLECTOR ASSY
$40.49¢20 244
1
#39
2DF-2846K-00-00
COVER, HINGE 1
$154.47¢77 238
1
#40
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#41
2DF-83330-00-00
REAR FLASHER LIGHT ASSY 1
$277.79¢138 894
1
#42
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#43
2DF-833A1-00-00
GARNISH, FLASHER 1
$96.90¢48 450
1
#44
98907-05012-00
SCREW, BIND | FOR CALIFORNIA
$7.35¢3 675
1
#45
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#46
2DF-2844B-00-00
LID 1
$40.70¢20 350
1
#47
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#48
90202-07015-00
WASHER, PLATE
$7.95¢3 975
1
#49
2DF-86176-00-00
Wire, Lead
$52.16¢26 081
1
#50
2DF-2845W-00-00
CAP,1
$30.51¢15 256
1
#51
2DF-W2849-10-00
LOCK ASSY
$445.10¢222 550
1
#52
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#53
90201-065G8-00
WASHER, PLATE
$7.34¢3 669
1
#54
90480-20447-00
GROMMET
$7.34¢3 669
1
#55
90387-08111-00
Collar
$3.94¢1 969
1
#56
92017-06035-00
BOLT, BUTTON HEAD
$2.82¢1 412
1
#57
2DF-2849V-00-00
PLATE, 11
$16.95¢8 475
1
#58
97702-50014-00
SCREW, TAPPING
$7.35¢3 675
1
#59
2DF-82176-00-00
Damper
$12.05¢6 025
1
#60
2DF-2849W-00-00
PLATE, 12
$15.06¢7 531
1
#61
97702-50014-00
SCREW, TAPPING
$7.35¢3 675
1
#62
4XY-28446-02-00
LABEL, CAUTION
$9.64¢4 819
1
#63
BL3-21668-A0-00
LABEL, TIRE
$14.01¢7 006
1
