REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

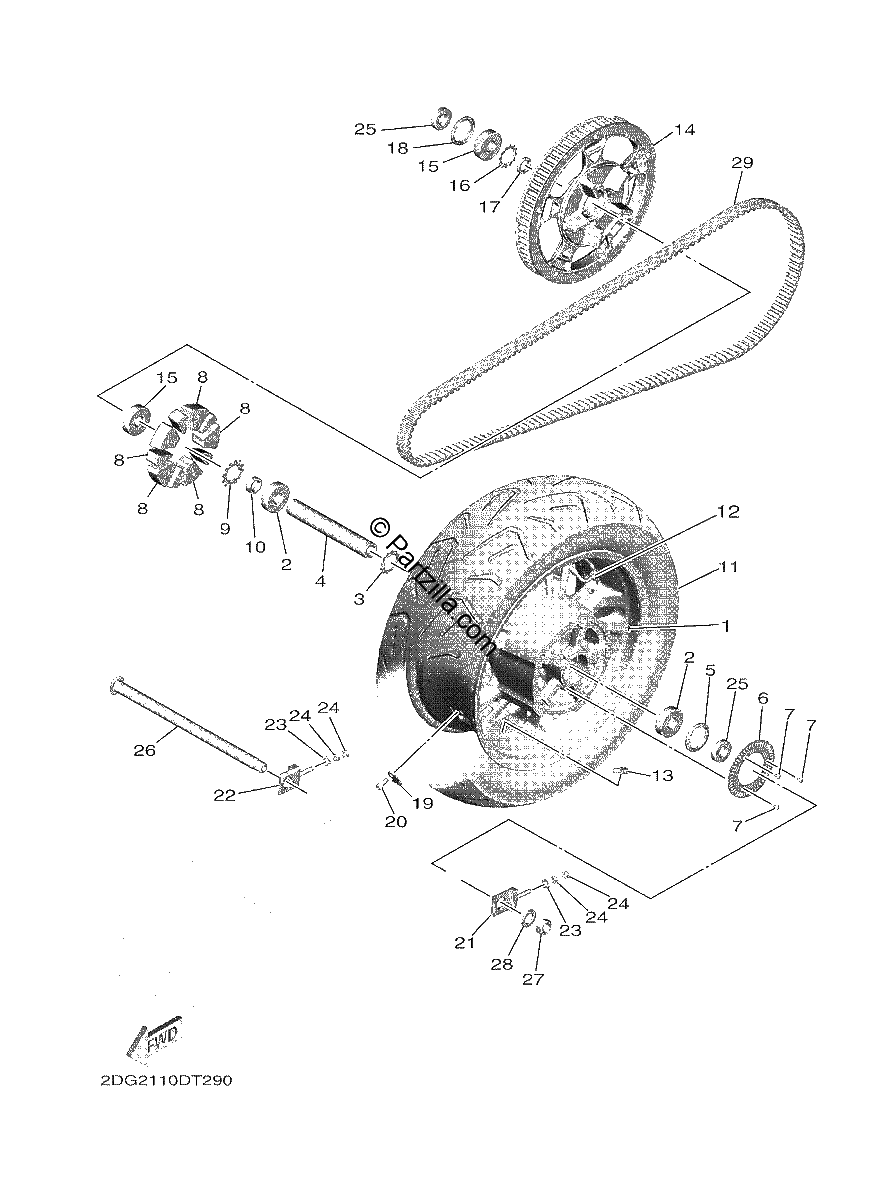

Diagrama de REAR WHEEL

Repuestos

#1
2DF-25338-10-98
CAST WHEEL, REAR
No Disponible
1
#2
93306-37219-00
BEARING
$29.45¢14 726
1
#3
2DF-25315-00-00
FLANGE, SPACER
$5.04¢2 519
1
#4
2DF-25317-00-00
SPACER, bearing
$52.15¢26 076
1
#5
93105-42024-00
OIL SEAL,SDD-TYPE
$14.34¢7 170
1
#6
1XC-2517G-00-00
ROTOR, SENSOR
$88.72¢44 361
1
#7
90149-05029-00
SCREW
$2.33¢1 167
1
#8
2DF-25364-00-00
Damper
$8.21¢4 105
1
#9
2DF-25316-00-00
FLANGE, SPACER 2
$7.14¢3 571
1
#10
2DF-25383-00-00
COLLAR, WHEEL
$13.90¢6 952
1
#11
94120-16008-00
TIRE (2.00-16)
$739.44¢369 719
1
#12
93900-00025-00
VALVE, RIM (PVR59A) | TAIHEIYO
$17.95¢8 976
1
#13
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#13
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#13
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#14
2DF-25470-00-00
SPROCKET, DRIVEN (70T)
$687.69¢343 844
1
#15
93306-37219-00
BEARING
$29.45¢14 726
1
#16
2DF-25315-00-00
FLANGE, SPACER
$5.04¢2 519
1
#17
2DF-25376-00-00
COLLAR, WHEEL
$11.29¢5 647
1
#18
93105-42024-00
OIL SEAL,SDD-TYPE
$14.34¢7 170
1
#19
2DG-25199-00-00
BALANCER, WHEEL
$3.66¢1 829
1
#20
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#21
2DF-25388-00-00
PULLER, CHAIN 1
$46.54¢23 270
1
#22
2DF-25389-00-00
PULLER, CHAIN 2
$46.26¢23 132
1
#23
92902-08200-00
WASHER
$0.25¢127
1
#24
95302-08600-00
NUT (6L2)
$7.44¢3 720
1
#25
90387-22034-00
Collar
$13.17¢6 584
1
#26
2DF-25381-00-00
AXLE, WHEEL
$59.83¢29 917
1
#27
90185-20002-00
NUT, SELF-LOCKING
$24.84¢12 420
1
#28
90201-20036-00
WASHER, plate
$6.42¢3 209
1
#29
2DF-46241-00-00
BELT
$560.04¢280 019
1
