COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

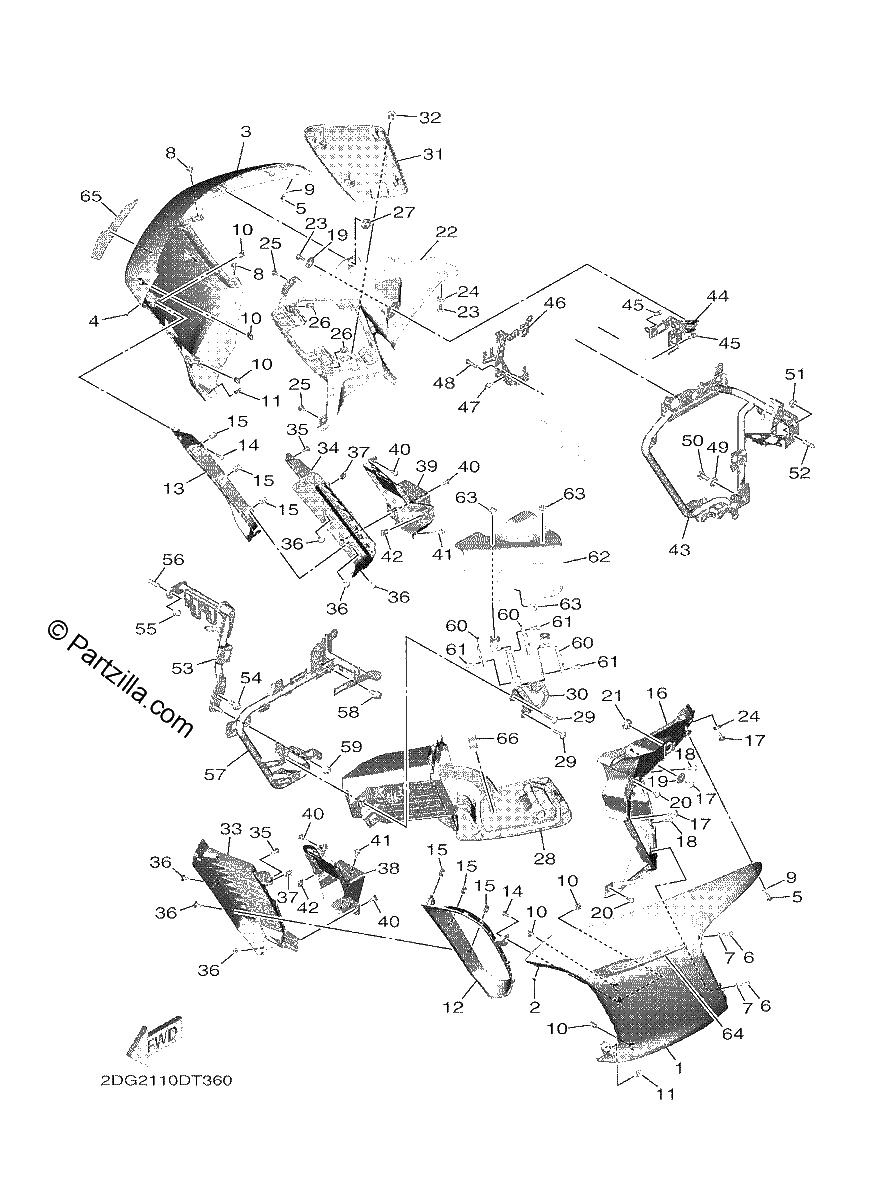

Diagrama de COWLING 2

Repuestos

#1
2DF-2835U-00-P3
PANEL 1 (VIVID PURPLISH BLUE COCKTAIL 5)
$129.04¢64 519
1
#2
1S4-2476U-00-00
PROTECTOR 1
$2.97¢1 487
1
#3
2DF-2835V-00-P3
PANEL 2 (VIVID PURPLISH BLUE COCKTAIL 5)
$144.71¢72 356
1
#4
1S4-2476U-00-00
PROTECTOR 1
$2.97¢1 487
1
#5
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
1
#6
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#7
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#8
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$5.19¢2 594
1
#9
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#10
90183-05042-00
NUT, SPRING
$1.25¢625
1
#11
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#12
2DF-2830L-00-00
MOLE COMP. 1
$114.13¢57 063
1
#13
2DF-2830M-00-00
MOLE COMP. 2
$68.45¢34 225
1
#14
97702-50014-00
SCREW, TAPPING
$7.35¢3 675
1
#15
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#16
2DF-2836K-00-00
PANEL, INNER 1
$76.69¢38 344
1
#17
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#18
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#19
90387-05064-00
Collar
$7.10¢3 550
1
#20
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#21
90480-13398-00
GROMMET
$8.16¢4 081
1
#22
2DF-2836L-00-00
PANEL, INNER 2
$80.25¢40 125
1
#23
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#24
90387-05063-00
Collar
$6.06¢3 031
1
#25
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#26
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#27
90480-13398-00
GROMMET
$8.16¢4 081
1
#28
2DF-2830N-00-00
BOX SUB ASSY
$314.74¢157 369
1
#29
90111-06052-00
BOLT,HEX. SOCKET BUTTON
$6.54¢3 269
1
#30
2DF-82171-00-00
STAY, FUSE BOX
$68.13¢34 063
1
#31
2DF-2839K-00-00
LID 1
$31.43¢15 713
1
#32
90269-08009-00
RIVET
$1.04¢519
1
#33
2DF-2838N-00-00
DUCT 1
$140.88¢70 438
1
#34
2DF-2838R-00-00
DUCT 2
$22.71¢11 356
1
#35
97702-50014-00
SCREW, TAPPING
$7.35¢3 675
1
#36
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#37
90183-05042-00
NUT, SPRING
$1.25¢625
1
#38
2DF-2838J-00-00
DUCT 5
$42.55¢21 275
1
#39
2DF-2838P-00-00
DUCT 6
$38.56¢19 281
1
#40
97702-50014-00
SCREW, TAPPING
$7.35¢3 675
1
#41
90269-06008-00
RIVET
$8.80¢4 400
1
#42
90183-05042-00
NUT, SPRING
$1.25¢625
1
#43
2DF-28357-00-00
STAY 2
$395.76¢197 881
1
#44
2DF-2833E-00-00
BRACKET 8
$46.99¢23 494
1
#45
90105-06105-00
Bolt, Flange
$7.52¢3 762
1
#46
2DF-2833F-00-00
BRACKET 9
$60.00¢30 000
1
#47
90105-06105-00
Bolt, Flange
$7.52¢3 762
1
#48
90105-06112-00
BOLT, FLANGE
$5.00¢2 500
1
#49
90201-08020-00
WASHER,PLATE
$5.84¢2 919
1
#50
90109-082F5-00
bolt
$1.95¢975
1
#51
95702-08500-00
NUT, FLANGE
$0.99¢494
1
#52
90116-08084-00
BOLT, stud
$3.49¢1 744
1
#53
2DF-2831T-00-00
STAY, SUPPORT 1
$104.00¢52 000
1
#54
90109-082F5-00
bolt
$1.95¢975
1
#55
95702-08500-00
NUT, FLANGE
$0.99¢494
1
#56
90116-08084-00
BOLT, stud
$3.49¢1 744
1
#57
2DF-28358-00-00
STAY 3
$234.09¢117 044
1
#58
95D32-08016-00
BOLT, FLANGE DEEP RECESS
$1.14¢569
1
#59
95702-08500-00
NUT, FLANGE
$0.99¢494
1
#60
JT1-83614-00-00
Bracket
$25.56¢12 781
1
#61
91312-06012-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#62
2DF-21621-00-00
Flap
$10.96¢5 481
1
#63
90269-07077-00
RIVET
$8.25¢4 125
1
#64
2DF-2834C-10-00
EMBLEM, 1
$108.10¢54 050
1
#65
2DF-2835C-10-00
EMBLEM 2
$108.10¢54 050
1
#66
4BR-24877-A0-00
LABEL, CAUTION
$16.32¢8 163
1
