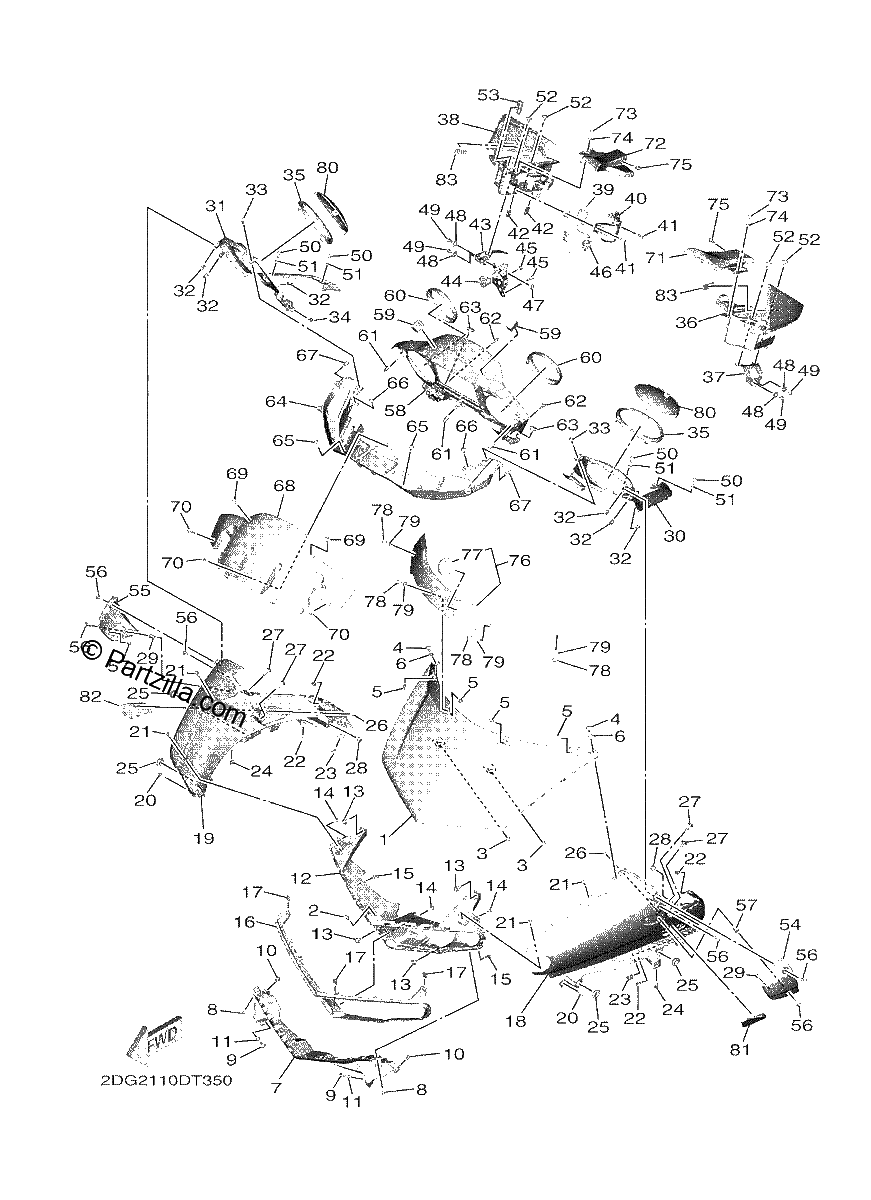

COWLING
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, COWLING (VIVID PURPLISH BLUE COCKTAIL 5)
$189.16¢94 581
#2
Clamp
$0.72¢363
#3
PLUG
$3.14¢1 569
#4
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#5
NUT, SPRING
$2.82¢1 412
#6
WASHER, PLATE
$7.66¢3 831
#7
BODY, COWLING 2 (VIVID PURPLISH BLUE COCKTAIL 5)
$162.56¢81 281
#8
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#9
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#10
NUT, SPRING
$1.25¢625
#11
WASHER, PLATE
$7.66¢3 831
#12
GRILL, AIR INTAKE 1
$127.50¢63 750
#13
BOLT, WITH WASHER
$7.34¢3 669
#14
SCREW, TAPPING
$3.85¢1 925
#15
NUT, SPRING
$1.25¢625
#16
MOLE 3
$194.15¢97 075
#17
NUT, SPRING
$1.25¢625
#18
COVER 1 (VIVID PURPLISH BLUE COCKTAIL 5)
$305.45¢152 725
#19
COVER 2 (VIVID PURPLISH BLUE COCKTAIL 5)
$388.16¢194 081
#20
SCREW, TAPPING
$3.63¢1 813
#21
RIVET
$8.80¢4 400
#22
NUT, SPRING
$2.82¢1 412
#23
NUT, SPRING
$7.94¢3 969
#24
NUT, SPRING
$1.25¢625
#25
Grommet
$5.72¢2 863
#26
NUT, SPRING
$0.50¢250
#27
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
#28
PLUG
$3.14¢1 569
#29
NUT
$6.78¢3 388
#30
PANEL, console 1
$83.52¢41 762
#31
PANEL, CONSOLE 2
$73.15¢36 575
#32
NUT, SPRING
$2.82¢1 412
#33
RIVET
$8.80¢4 400
#34
NUT, SPRING
$1.25¢625
#35
MOLE 5
$28.35¢14 175
#36
BOX SUB ASSY
$200.63¢100 313
#37
BRACKET 4
$8.81¢4 406
#38
BOX, SUB-ASSY., 3
$190.15¢95 075
#39
LOCK SET
$147.32¢73 663
#40
STOPPER PIN ASSY
$25.11¢12 556
#41
SCREW, BIND
$7.77¢3 887
#42
NUT, SPRING
$3.17¢1 588
#43
BRACKET 5
$7.03¢3 513
#44
BRACKET 10
$38.82¢19 412
#45
Bolt, Flange
$7.52¢3 762
#46
CLAMP
$1.96¢981
#47
Nut
$0.94¢469
#48
WASHER, PLATE
$6.52¢3 262
#49
Bolt, Flange
$7.52¢3 762
#50
BOLT,HEX. SOCKET BUTTON
$5.44¢2 719
#51
WASHER, plate
$0.93¢463
#52
BOLT, HEX. SOCKET BUTTON
$7.46¢3 731
#53
Grommet
$13.61¢6 806
#54
COVER, HANDLE UPPER 1
$40.25¢20 125
#55
COVER, HANDLE UPPER 2
$40.25¢20 125
#56
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#57
PLUG
$6.76¢3 381
#58
COVER, METER
$199.45¢99 725
#59
DAMPER, PLATE
$0.66¢331
#60
MOLE 4
$27.21¢13 606
#61
Clamp
$0.72¢363
#62
RIVET
$8.80¢4 400
#63
Grommet
$5.72¢2 863
#64
PANEL, INNER 5
$72.80¢36 400
#65
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#66
SCREW, TAPPING
$3.63¢1 813
#67
NUT, SPRING
$2.82¢1 412
#68
HOOD 1
$84.20¢42 100
#69
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#70
RIVET
$8.80¢4 400
#71
PROTECTOR 1
$23.94¢11 969
#72
PROTECTOR 2
$23.22¢11 612
#73
BOLT,HEX. SOCKET BUTTON
$5.44¢2 719
#74
WASHER, plate
$0.93¢463
#75
RIVET
$8.80¢4 400
#76
BODY, COWLING
$456.69¢228 344
#77
EMBLEM
$23.89¢11 944
#78
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
#79
WASHER, PLATE
$7.66¢3 831
#80
GRILLE, SPEAKER 1
$40.70¢20 350
#81
SEAL 1
$25.30¢12 650
#82
SEAL 2
$23.45¢11 725
#83
LABEL, CAUTION
$1.33¢663
