ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

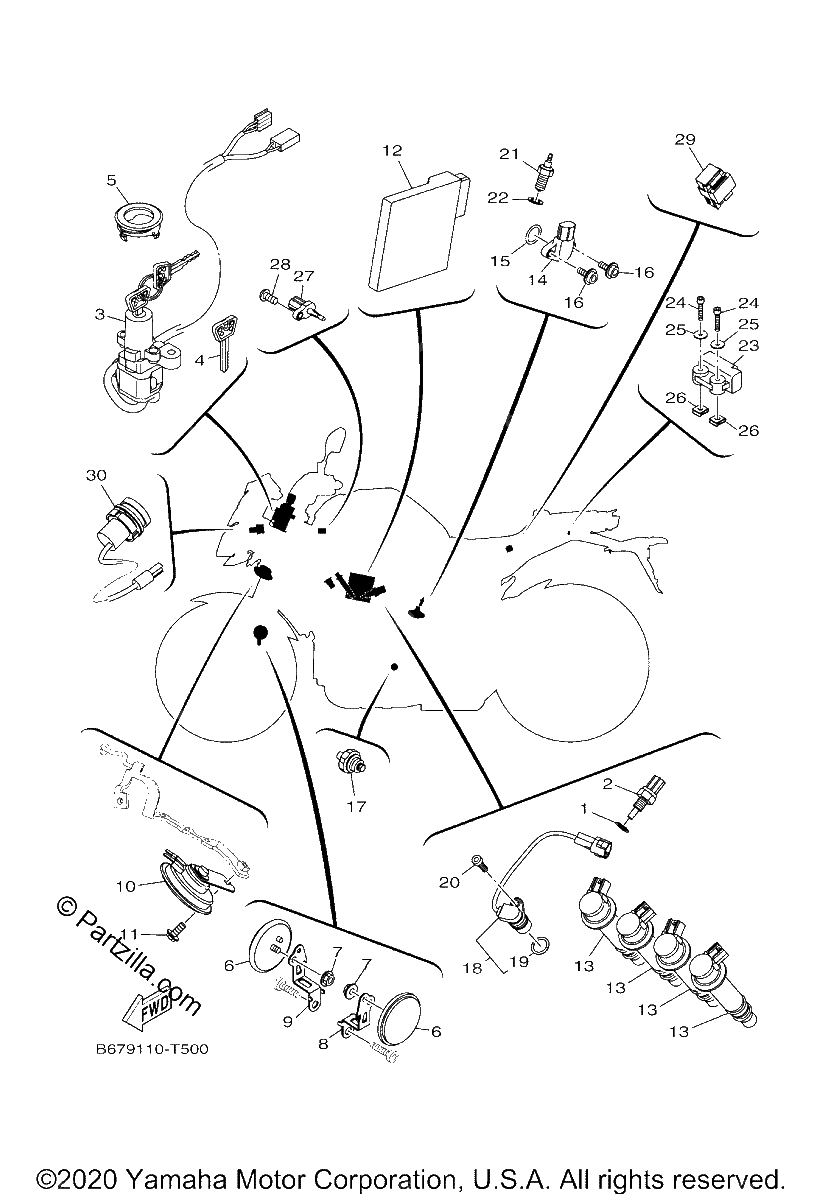

Diagrama de ELECTRICAL 1

Repuestos

#1
90430-10004-00
GASKET
$6.51¢3 254
1
#2
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$31.65¢15 824
1
#3
B67-82501-10-00
MAIN SWITCH STEERING LOCK
$152.26¢76 130
1
#4
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#5
36P-82552-00-00
CAP, SWITCH
$13.78¢6 889
1
#6
4AG-85111-00-00
REFLECTOR, FRONT 1
$14.03¢7 015
1
#7
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#8
2CR-85112-00-00
BRACKET, REFLECTOR 1
$23.07¢11 534
1
#9
2CR-85122-00-00
BRACKET, REFLECTOR 2
$26.99¢13 495
1
#10
B67-83371-00-00
HORN
$72.69¢36 346
1
#11
95812-06012-00
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
1
#12
B67-8591A-50-00
ENGINE CONTROL UNIT ASSY
$2277.55¢1 138 776
1
#13
B67-82310-00-00
IGNITION COIL ASSY
$141.90¢70 949
1
#14
2CR-85899-10-00
SENSOR, GEAR POSITION
$119.69¢59 846
1
#15
93210-17008-00
O-RING
$1.99¢995
1
#16
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#17
1WS-82504-00-00
OIL PRESSURE SWITC
$66.99¢33 494
1
#18
5VY-85896-02-00
SENSOR, CAM POSITION (replaces 5VY-85896-01-00)
$139.21¢69 604
1
#19
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#20
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#21
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#22
90430-10148-00
Gasket
$5.21¢2 605
1
#23
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#24
91312-04025-00
BOLT
$1.69¢845
1
#25
90201-04030-00
WASHER, PLATE
$1.66¢828
1
#26
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#27
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#28
97780-50116-00
SCREW, TAPPING
$1.61¢805
1
#29
5DM-81950-01-00
RELAY ASSY (replaces 5DM-81950-00-00)
$27.11¢13 553
1
#30
B67-8254B-01-00
TERMINAL COMP.
$66.26¢33 131
1
