STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

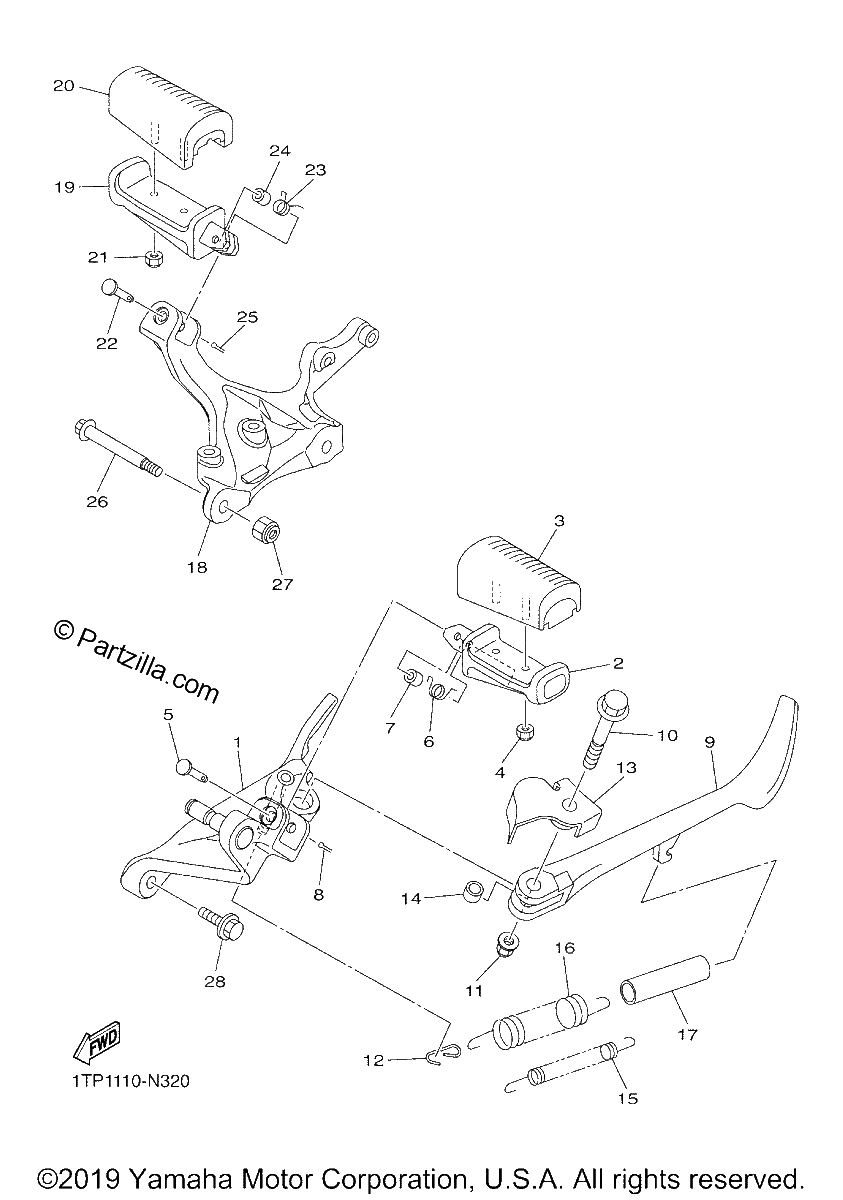

Diagrama de STAND FOOTREST

Repuestos

#1
1TP-27411-00-00
FOOTREST 1
$272.34¢136 171
1
#2
1TP-27451-00-00
FOOTREST
$54.81¢27 404
1
#3
4VR-27413-00-00
COVER, FOOTREST
$39.00¢19 498
1
#4
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#5
90240-08145-00
PIN, CLEVIS
$3.44¢1 719
1
#6
90508-18054-00
SPRING, TORSION
$5.90¢2 950
1
#7
90387-087K5-00
COLLAR
$8.16¢4 082
1
#8
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#9
1TP-27311-00-00
STAND, SIDE
$180.24¢90 120
1
#10
90105-10426-00
BOLT, FLANGE
$8.07¢4 036
1
#11
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
#12
1TP-27315-00-00
LINK, SIDE STAND
$7.60¢3 801
1
#13
1TP-27322-00-00
WASHER
$22.39¢11 195
1
#14
90387-10020-00
COLLAR
$17.96¢8 981
1
#15
90506-23490-00
SPRING, TENSION
$9.81¢4 905
1
#16
90506-29507-00
SPRING, TENSION
$14.11¢7 055
1
#17
90445-16641-00
HOSE (L60)
$6.69¢3 347
1
#18
1TP-27421-00-00
FOOTREST 2
$303.94¢151 973
1
#19
1TP-27461-00-00
FOOTREST
$57.42¢28 710
1
#20
4VR-27413-00-00
COVER, FOOTREST
$39.00¢19 498
1
#21
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#22
90240-08145-00
PIN, CLEVIS
$3.44¢1 719
1
#23
90508-18054-00
SPRING, TORSION
$5.90¢2 950
1
#24
90387-087K5-00
COLLAR
$8.16¢4 082
1
#25
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#26
90105-10323-00
BOLT, FLANGE
$4.55¢2 277
1
#27
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
#28
90105-10424-00
BOLT, FLANGE
$7.53¢3 766
1
