STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

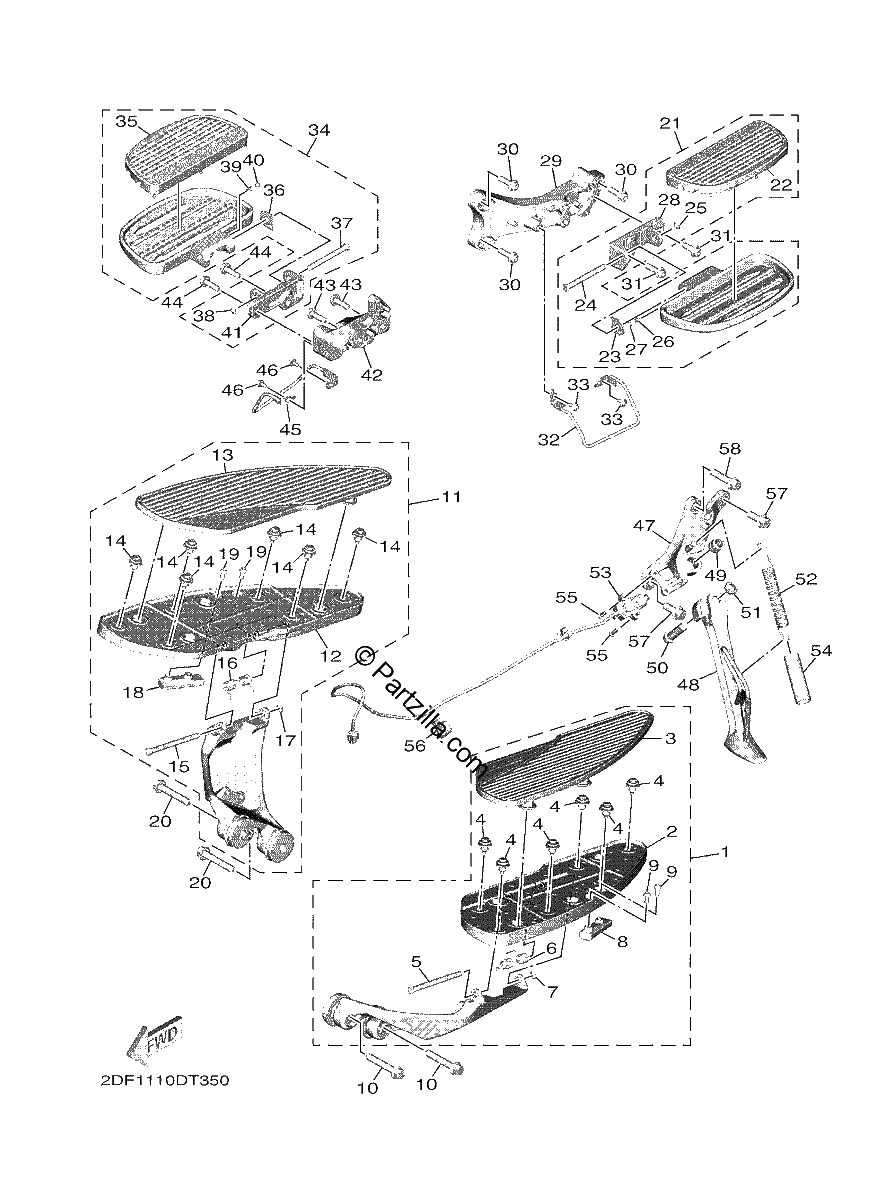

Diagrama de STAND FOOTREST

Repuestos

#1
2DF-27410-10-00
FRONT FOOTREST ASSY (LEFT)
$382.84¢191 419
1
#2
2DF-27451-10-00
Footrest
$103.24¢51 619
1
#3
2DF-27413-00-00
COVER, FOOTREST
$71.95¢35 975
1
#4
2DF-27414-00-00
DAMPER, FOOTREST
$3.23¢1 613
1
#5
1D7-27427-00-00
SHAFT
$8.50¢4 250
1
#6
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#7
99002-06600-00
CIRCLIP
$1.02¢513
1
#8
2DF-27496-00-00
MOLE 1
$31.95¢15 975
1
#9
90111-06102-00
. BOLT,HEX SOCKET BUTTON
$6.14¢3 069
1
#10
90105-10458-00
Bolt, Flange
$5.29¢2 644
1
#11
2DF-27420-10-00
FRONT FOOTREST ASSY (RIGHT)
$382.84¢191 419
1
#12
2DF-27461-10-00
Footrest
$102.33¢51 163
1
#13
2DF-27423-00-00
COVER, FOOTREST
$69.24¢34 619
1
#14
2DF-27414-00-00
DAMPER, FOOTREST
$3.23¢1 613
1
#15
1D7-27427-00-00
SHAFT
$8.50¢4 250
1
#16
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#17
99002-06600-00
CIRCLIP
$1.02¢513
1
#18
2DF-27496-00-00
MOLE 1
$31.95¢15 975
1
#19
90111-06102-00
. BOLT,HEX SOCKET BUTTON
$6.14¢3 069
1
#20
90105-10458-00
Bolt, Flange
$5.29¢2 644
1
#21
2DF-27430-10-00
REAR FOOTREST ASSY 1
$174.05¢87 025
1
#22
2DF-27433-00-00
COVER, REAR FOOTREST
$26.90¢13 450
1
#23
4YE-27437-01-00
WASHER, SPECIAL
$6.06¢3 031
1
#24
4YE-27427-10-00
SHAFT
$7.21¢3 606
1
#25
99001-06600-00
CIRCLIP
$1.02¢513
1
#26
90501-13720-00
SPRING, COMPRESSION
$7.94¢3 969
1
#27
93501-04011-00
BALL
$7.46¢3 731
1
#28
2DF-27452-00-00
BRACKET, FOOTREST 1
$43.49¢21 744
1
#29
2DF-27432-00-00
BRACKET 1
$67.06¢33 531
1
#30
90110-08006-00
BOLT, HEXAGON SOCKET HEAD
$7.52¢3 762
1
#31
90110-08006-00
BOLT, HEXAGON SOCKET HEAD
$7.52¢3 762
1
#32
2DF-27471-00-00
BAR, FOOTREST 1
$15.36¢7 681
1
#33
90110-05076-00
BOLT, HEXAGON SOCKET HEAD
$0.56¢281
1
#34
2DF-27430-10-00
REAR FOOTREST ASSY 1
$174.05¢87 025
1
#35
2DF-27433-00-00
COVER, REAR FOOTREST
$26.90¢13 450
1
#36
4YE-27437-01-00
WASHER, SPECIAL
$6.06¢3 031
1
#37
4YE-27427-10-00
SHAFT
$7.21¢3 606
1
#38
99001-06600-00
CIRCLIP
$1.02¢513
1
#39
90501-13720-00
SPRING, COMPRESSION
$7.94¢3 969
1
#40
93501-04011-00
BALL
$7.46¢3 731
1
#41
2DF-27452-00-00
BRACKET, FOOTREST 1
$43.49¢21 744
1
#42
2DF-27442-00-00
BRACKET 2
$67.56¢33 781
1
#43
90110-08006-00
BOLT, HEXAGON SOCKET HEAD
$7.52¢3 762
1
#44
90110-08006-00
BOLT, HEXAGON SOCKET HEAD
$7.52¢3 762
1
#45
2DF-27472-00-00
BAR, FOOTREST 2
$14.74¢7 369
1
#46
90110-05076-00
BOLT, HEXAGON SOCKET HEAD
$0.56¢281
1
#47
2DF-27321-00-00
BRACKET, side stand
$217.75¢108 875
1
#48
2DF-27311-00-00
STAND, SIDE
$187.91¢93 956
1
#49
90387-1215U-00
COLLAR
$17.71¢8 856
1
#50
90105-12018-00
BOLT, FLANGE
$11.95¢5 975
1
#51
90185-12119-00
NUT, SELF-LOCKING
$10.29¢5 144
1
#52
90506-23024-00
Spring, Tension
$11.23¢5 613
1
#53
2DF-82566-00-00
SWITCH, SIDE STAND
$82.31¢41 156
1
#54
90445-217G3-00
HOSE (L70)
$8.24¢4 119
1
#55
90157-05008-00
SCREW, PAN HEAD
$1.68¢838
1
#56
90464-25009-00
CLAMP
$7.56¢3 781
1
#57
90105-10236-00
Bolt, Flange
$8.30¢4 150
1
#58
90105-10464-00
Bolt, Flange
$6.55¢3 275
1
