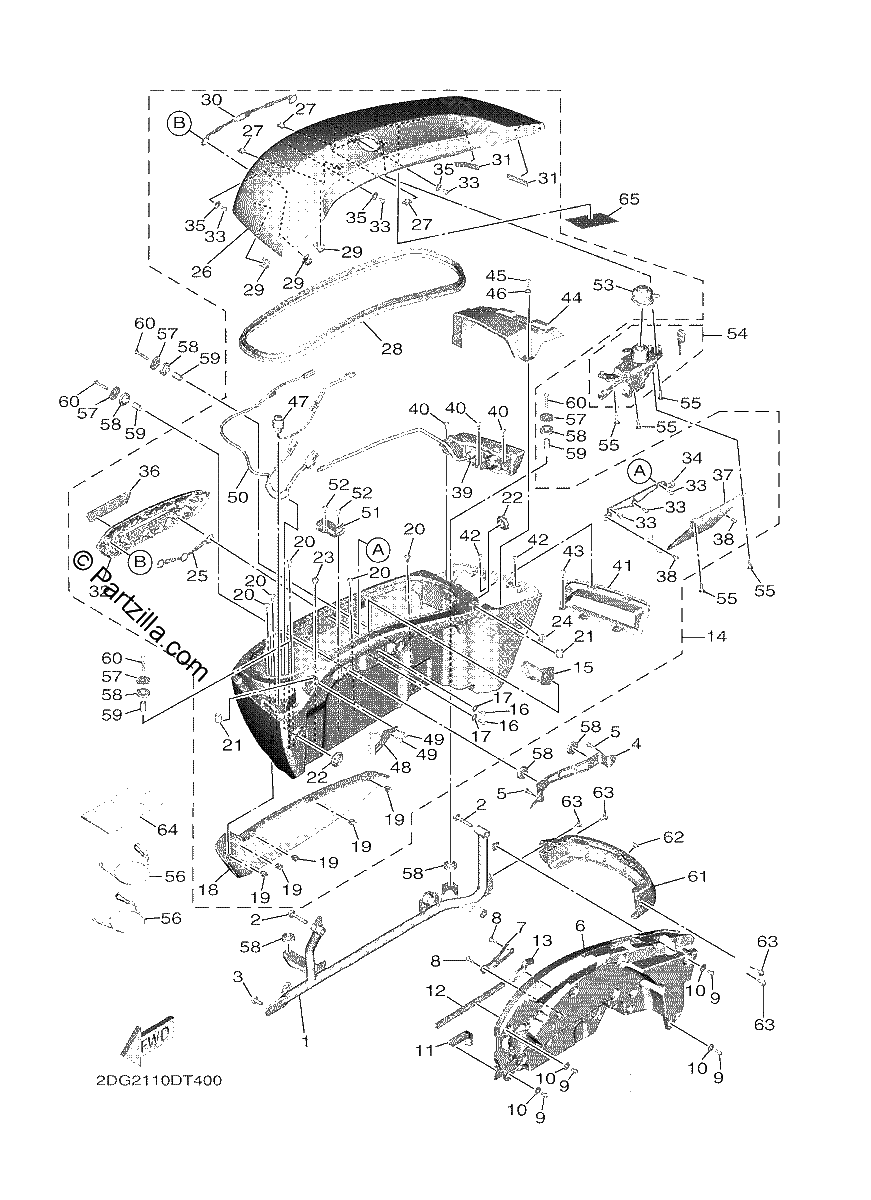

SADDLEBAG 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME, SADDLEBAG 2
$196.59¢98 294
#2
BOLT, FLANGE DEEP RECESS
$0.96¢481
#3
BOLT, FLANGE
$8.31¢4 156
#4
STAY, FRONT GUARD 2
$33.75¢16 875
#5
Bolt, Flange
$7.48¢3 738
#6
COVER, SIDE BOX 2
$87.56¢43 781
#7
BRACKET 2
$25.25¢12 625
#8
SCREW, TAPPING
$1.46¢731
#9
BOLT, FLANGE
$3.57¢1 787
#10
COLLAR
$8.24¢4 119
#11
DAMPER 8
$4.96¢2 481
#12
DAMPER, PLATE
$3.49¢1 744
#13
DAMPER 11
$3.49¢1 744
#14
SADDLEBAG ASSY., 2 (BLACK METALLIC X)
$2493.74¢1 246 869
#15
HOOK 3
$71.76¢35 881
#16
BOLT, BUTTON HEAD
$3.33¢1 663
#17
WASHER, PLATE
$3.50¢1 750
#18
COVER 4
$76.46¢38 231
#19
Nut, Spring
$12.75¢6 375
#20
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#21
DAMPER 1
$4.40¢2 200
#22
SEAL 5
$2.92¢1 463
#23
PLUG
$3.14¢1 569
#24
SEAL 4
$2.97¢1 487
#25
STAY, 7
$18.45¢9 225
#26
.. SADDLEBAG 4 (BLACK METALLIC X)
$314.04¢157 019
#27
Nut, Spring
$4.15¢2 075
#28
SEAL 2
$34.16¢17 081
#29
Clamp
$3.49¢1 744
#30
STAY, 10
$22.14¢11 069
#31
SEAL, 16
$2.35¢1 175
#32
HINGE SUB-ASSY., 2
$696.44¢348 219
#33
. BOLT,HEX SOCKET BUTTON
$6.14¢3 069
#34
BRACKET, HINGE 2
$17.36¢8 681
#35
WASHER, PLATE
$3.29¢1 644
#36
REAR REFLECTOR ASSY
$40.49¢20 244
#37
COVER, HINGE 2
$154.47¢77 238
#38
BOLT, BUTTON HEAD
$3.65¢1 825
#39
REAR FLASHER LIGHT ASSY 2
$222.65¢111 325
#40
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#41
GARNISH, FLASHER 2
No Disponible
#42
SCREW, BIND | FOR CALIFORNIA
$7.35¢3 675
#43
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#44
LID 2
$41.55¢20 775
#45
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#46
WASHER, PLATE
$7.95¢3 975
#47
SWITCH
$39.11¢19 556
#48
BRACKET 3
$13.43¢6 713
#49
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#50
WIRE, LEAD 8
$60.69¢30 344
#51
BAND, TOOL
$11.81¢5 906
#52
SCREW, TAPPING
$7.35¢3 675
#53
CAP,2
$33.15¢16 575
#54
LOCK ASSY
$445.10¢222 550
#55
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#56
HANGER, HELMET
$15.76¢7 881
#57
WASHER, PLATE
$7.34¢3 669
#58
GROMMET
$7.34¢3 669
#59
Collar
$3.94¢1 969
#60
BOLT, BUTTON HEAD
$2.82¢1 412
#61
STAY, SIDE BAG
$66.88¢33 438
#62
PLUG
$5.56¢2 781
#63
BOLT, FLANGE DEEP RECESS
$0.41¢206
#64
Tool Kit
$18.41¢9 206
#65
LABEL, CAUTION
$9.64¢4 819
