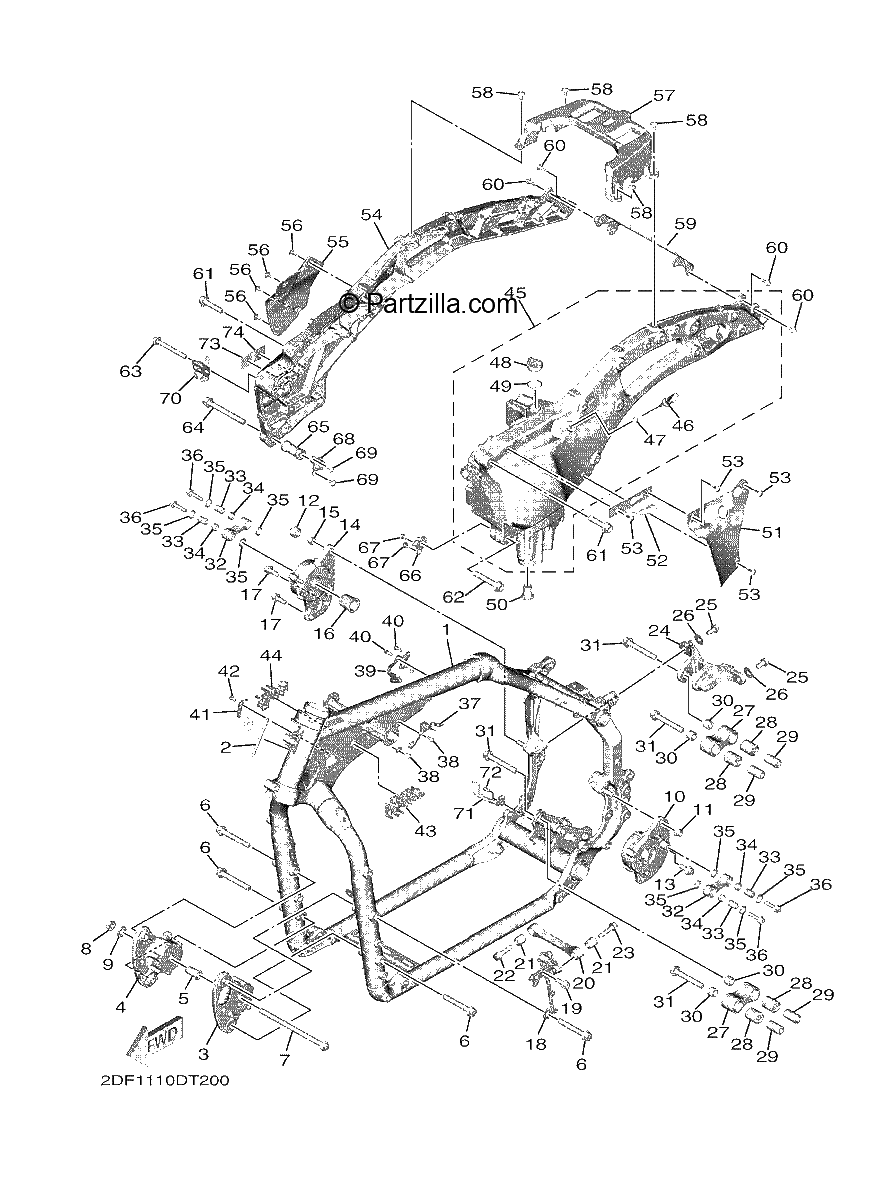

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$2787.49¢1 393 744
#2
PROTECTOR
$6.65¢3 325
#3
ENGINE BRACKET SUB-COMP. 1
$159.35¢79 675
#4
ENGINE BRACKET SUB-COMP. 2
$151.15¢75 575
#5
bolt
$17.94¢8 969
#6
Bolt, Flange
$8.06¢4 031
#7
Bolt, Flange
$16.54¢8 269
#8
NUT, SELF-LOCKING
$6.45¢3 225
#9
WASHER, PLATE
$7.48¢3 738
#10
ENGINE BRACKET COMP.
$154.00¢77 000
#11
NUT,SELF-LOCKING
$3.96¢1 981
#12
CAP
$5.55¢2 775
#13
Bolt, Flange
$8.30¢4 150
#14
ENGINE BRACKET COMP. 2
$151.69¢75 844
#15
NUT,SELF-LOCKING
$3.96¢1 981
#16
BOLT, ENGINE ADJUSTING
$25.65¢12 825
#17
Bolt, Flange
$8.30¢4 150
#18
PLATE, ENGINE MOUNT
$39.08¢19 538
#19
Bolt, Flange
$2.04¢1 019
#20
STAY, ENGINE 6
$33.26¢16 631
#21
Damper
$20.33¢10 163
#22
Bolt, Flange
$4.19¢2 094
#23
BOLT, FLANGE DEEP RECESS
$1.47¢737
#24
STAY, ENGINE 3
$46.88¢23 438
#25
BOLT, FLANGE This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#26
WASHER, PLATE
$2.56¢1 281
#27
STAY, ENGINE 7
$32.35¢16 175
#28
BEARING
$21.48¢10 738
#29
Collar
$11.61¢5 806
#30
Collar
$6.06¢3 031
#31
Bolt, Flange
$8.06¢4 031
#32
Stopper
$42.91¢21 456
#33
COLLAR
$8.73¢4 363
#34
BUSH, FORMED
$1.63¢813
#35
Oil Seal
$3.67¢1 838
#36
Bolt, Flange
$2.82¢1 412
#37
STAY
$15.48¢7 738
#38
BOLT, BUTTON HEAD
$2.44¢1 219
#39
BRACKET 7
$11.81¢5 906
#40
BOLT, BUTTON HEAD
$7.41¢3 706
#41
BRACKET 8
$4.97¢2 488
#42
BOLT, BUTTON HEAD
$2.44¢1 219
#43
COVER 4
$32.76¢16 381
#44
COVER 10
$29.30¢14 650
#45
BACK STAY COMP. , 1
$1069.99¢534 994
#46
PLUG, OIL LEVEL
$23.10¢11 550
#47
O-RING
$6.91¢3 456
#48
PLUG, OIL LEVEL
$22.93¢11 463
#49
O-RING
$8.21¢4 106
#50
STRAINER 2
$33.45¢16 725
#51
COVER 5
$49.97¢24 987
#52
COVER 3
$11.23¢5 613
#53
RIVET
$1.40¢700
#54
BRACKET, REAR FENDER 2
$609.77¢304 888
#55
COVER 6
$26.97¢13 487
#56
RIVET
$1.40¢700
#57
Bracket
$89.38¢44 688
#58
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
#59
BRACKET, MEMBER 1
$50.88¢25 438
#60
BOLT, HEXAGON SOCKET HEAD
$3.09¢1 544
#61
BOLT, FLANGE This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#62
BOLT, FLANGE This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#63
BOLT, HEXAGON SOCKET HEAD
$7.13¢3 563
#64
BOLT, FLANGE This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#65
Boss
$13.57¢6 788
#66
BRKT., LH.
$6.91¢3 456
#67
BOLT,HEX. SOCKET BUTTON
$1.89¢944
#68
Bracket
$7.18¢3 588
#69
BOLT,HEX. SOCKET BUTTON
$1.89¢944
#70
BRACKET 10
$16.59¢8 294
#71
HOLDER, CABLE
$14.40¢7 200
#72
BOLT, BUTTON HEAD
$2.44¢1 219
#73
PLATE, ROUTING 2
$1.99¢994
#74
PLATE, ROUTING | FOR CALIFORNIA
$7.95¢3 975
