REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

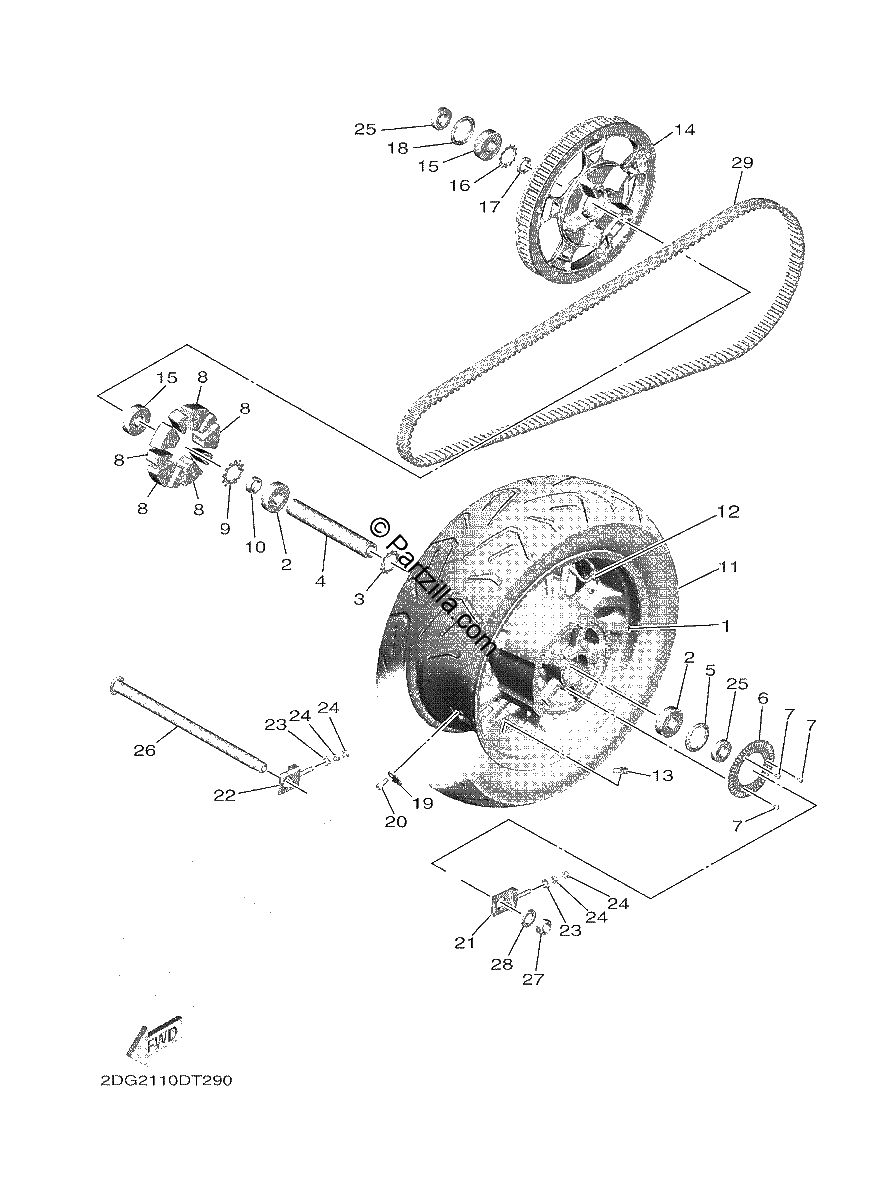

Diagrama de REAR WHEEL

Repuestos

#1
2DF-25338-10-0X
CAST WHEEL, REAR
$631.24¢315 619
1
#2
93306-37219-00
BEARING
$32.01¢16 006
1
#3
2DF-25315-00-00
FLANGE, SPACER
$5.47¢2 738
1
#4
2DF-25317-00-00
SPACER, bearing
$56.69¢28 344
1
#5
93105-42024-00
OIL SEAL,SDD-TYPE
$15.59¢7 794
1
#6
1XC-2517G-00-00
ROTOR, SENSOR
$96.44¢48 219
1
#7
90149-05029-00
SCREW
$2.54¢1 269
1
#8
2DF-25364-00-00
Damper
$8.92¢4 462
1
#9
2DF-25316-00-00
FLANGE, SPACER 2
$7.76¢3 881
1
#10
2DF-25383-00-00
COLLAR, WHEEL
$15.11¢7 556
1
#11
94120-16008-00
TIRE (2.00-16)
$803.74¢401 869
1
#12
93900-00025-00
VALVE, RIM (PVR59A) | TAIHEIYO
$19.51¢9 756
1
#13
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$47.05¢23 525
1
#13
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$18.31¢9 156
1
#13
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$18.51¢9 256
1
#14
2DF-25470-00-00
SPROCKET, DRIVEN (70T)
$747.49¢373 744
1
#15
93306-37219-00
BEARING
$32.01¢16 006
1
#16
2DF-25315-00-00
FLANGE, SPACER
$5.47¢2 738
1
#17
2DF-25376-00-00
COLLAR, WHEEL
$12.28¢6 138
1
#18
93105-42024-00
OIL SEAL,SDD-TYPE
$15.59¢7 794
1
#19
2DG-25199-00-00
BALANCER, WHEEL
$3.98¢1 988
1
#20
92012-08020-00
BOLT, BUTTON HEAD
$2.65¢1 325
1
#21
2DF-25388-00-00
PULLER, CHAIN 1
$50.59¢25 294
1
#22
2DF-25389-00-00
PULLER, CHAIN 2
$50.29¢25 144
1
#23
92902-08200-00
WASHER
$0.28¢138
1
#24
95302-08600-00
NUT (6L2)
$8.09¢4 044
1
#25
90387-22034-00
Collar
$14.31¢7 156
1
#26
2DF-25381-00-00
AXLE, WHEEL
$65.04¢32 519
1
#27
90185-20002-00
NUT, SELF-LOCKING
$27.00¢13 500
1
#28
90201-20036-00
WASHER, plate
$6.97¢3 488
1
#29
2DF-46241-00-00
BELT
$608.74¢304 369
1
