CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

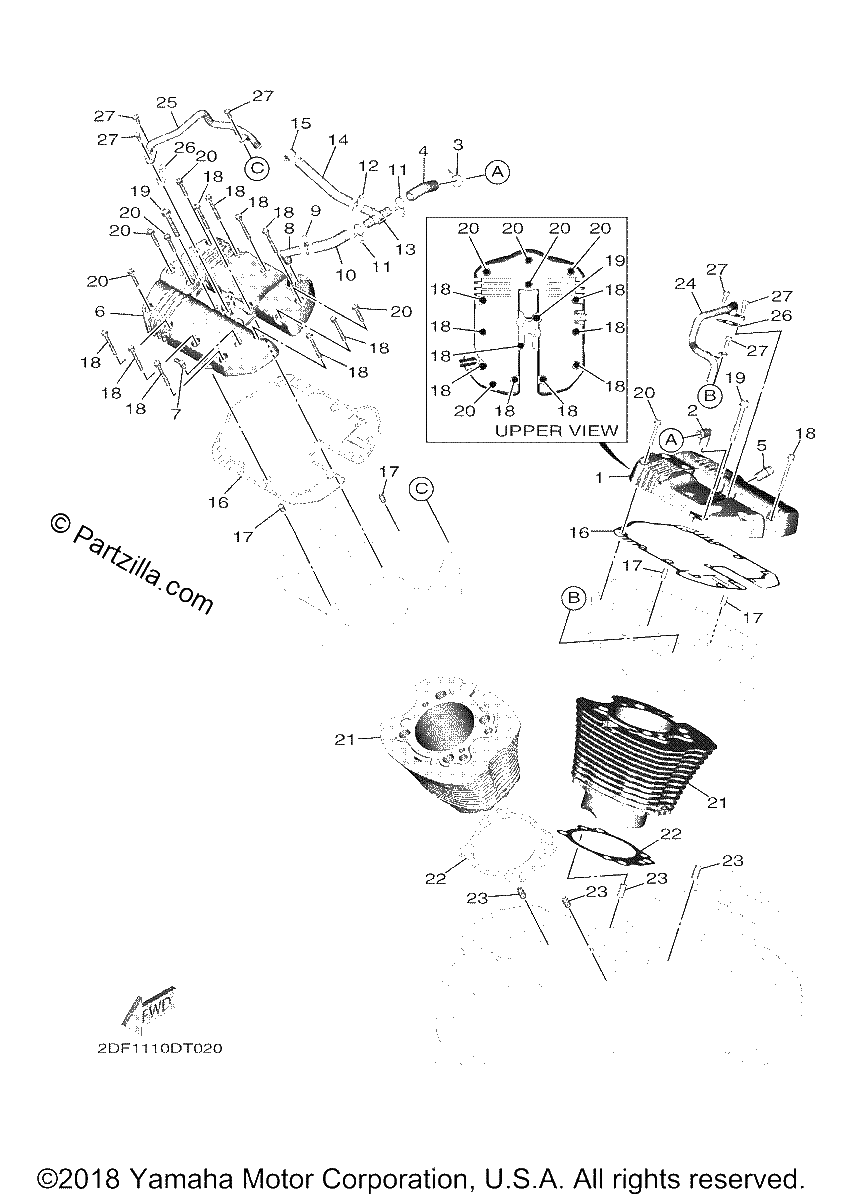

Diagrama de CYLINDER

Repuestos

#1
2DF-11191-10-00
COVER, CYLINDER HEAD 1
$395.25¢197 625
1
#2
4TR-11167-00-00
PIPE, BREATHER 2
$17.56¢8 781
1
#3
90467-18196-00
Clip
$6.91¢3 456
1
#4
2DF-11166-00-00
PIPE, BREATHER 1
$32.94¢16 469
1
#5
2DF-12463-00-00
Pipe, Breather
$6.29¢3 144
1
#6
2DF-11192-10-00
COVER, CYLINDER HEAD 2
$395.25¢197 625
1
#7
353-13115-01-00
CONNECTOR, SUCTION PIPE
$6.26¢3 131
1
#8
4TR-11167-00-00
PIPE, BREATHER 2
$17.56¢8 781
1
#9
90467-18196-00
Clip
$6.91¢3 456
1
#10
2DF-11167-00-00
PIPE, BREATHER 2
$32.94¢16 469
1
#11
90467-18196-00
Clip
$6.91¢3 456
1
#12
90467-16195-00
CLIP
$4.07¢2 037
1
#13
90413-14001-00
WAY 3
$19.48¢9 738
1
#14
2DF-11126-00-00
PIPE, BREATHER 3
$9.00¢4 500
1
#15
90467-15001-00
CLIP
$7.05¢3 525
1
#16
2DF-11193-00-00
GASKET, HEAD COVER 1
$38.31¢19 156
1
#17
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#18
90110-06422-00
BOLT, HEXAGON SOCKET HEAD
$3.73¢1 863
1
#19
90110-08118-00
BOLT, HEXAGON SOCKET HEAD
$7.21¢3 606
1
#20
90110-06421-00
BOLT, HEXAGON SOCKET HEAD
$4.91¢2 456
1
#21
2DF-11311-00-00
CYLINDER 1
$1183.45¢591 725
1
#22
2DF-11351-00-00
Gasket, Cylinder
$11.74¢5 869
1
#23
90387-062T5-00
COLLAR
$9.93¢4 963
1
#24
2DF-14871-00-00
PIPE 1
$56.42¢28 213
1
#25
2DF-14872-00-00
PIPE 2
$58.03¢29 013
1
#26
5PX-14815-00-00
GASKET
$10.21¢5 106
1
#27
91312-06014-00
bolt
$5.65¢2 825
1
