COWLING 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

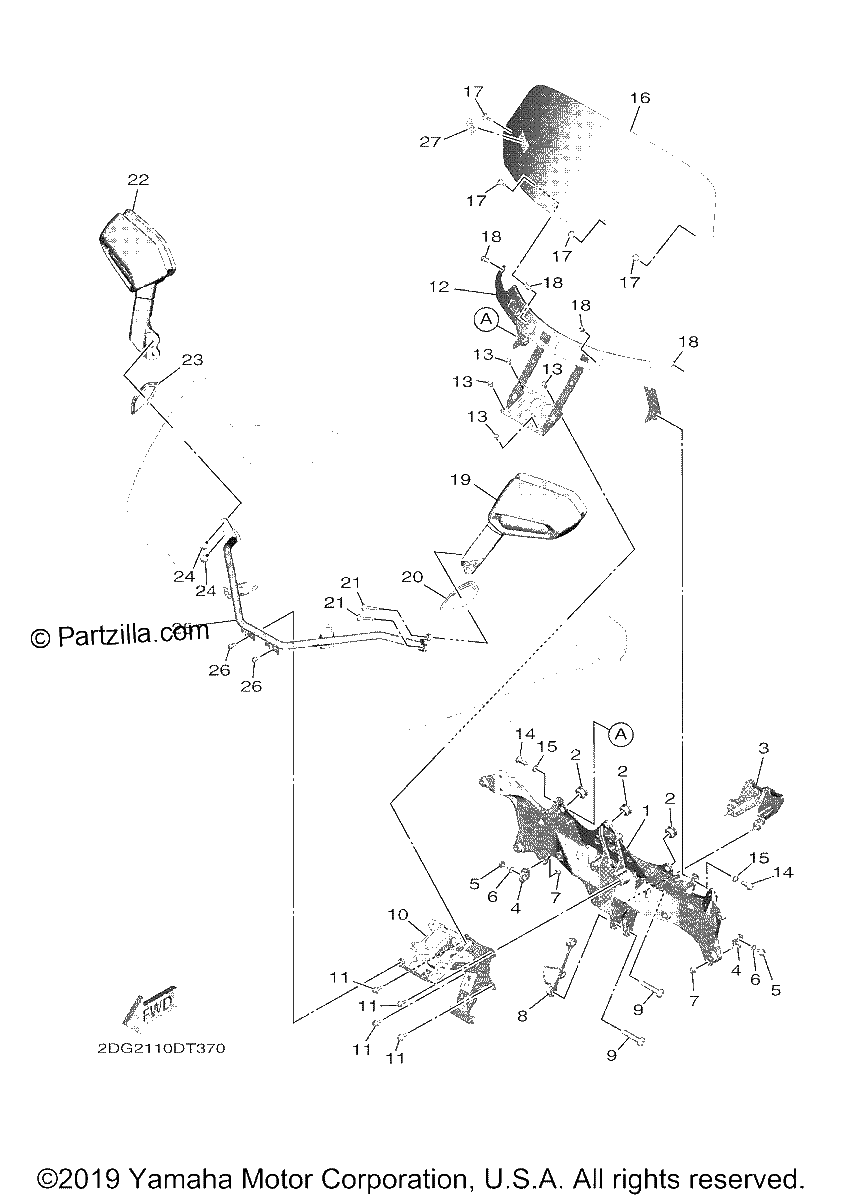

Diagrama de COWLING 3

Repuestos

#1
2DG-28356-00-00
STAY 1
$456.76¢228 378
1
#2
90480-09M21-00
Grommet
$5.96¢2 978
1
#3
2DF-28239-00-00
COVER 3
$25.24¢12 621
1
#4
2DF-2831U-00-00
STAY, SIDE 1
$4.66¢2 329
1
#5
90110-06107-00
BOLT, HEXAGON SOCKET HEAD
$2.84¢1 420
1
#6
90201-06045-00
WASHER, PLATE
$6.76¢3 381
1
#7
90179-06075-00
Nut
$0.86¢431
1
#8
2DF-28336-00-00
PLATE
$20.47¢10 235
1
#9
90111-10054-00
BOLT, HEX. SOCKET BUTTON
$5.65¢2 823
1
#10
2DF-28332-00-00
STAY, LEG SHIELD
$98.22¢49 111
1
#11
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.25¢127
1
#12
2DG-28322-00-00
STAY 2
$139.86¢69 932
1
#13
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#14
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#15
92902-08200-00
WASHER
$0.25¢127
1
#16
2DG-28381-00-00
Windshield
$280.54¢140 271
1
#17
90150-05024-00
SCREW, ROUND HEAD
$3.13¢1 564
1
#18
90179-05523-00
NUT
$6.23¢3 117
1
#19
2DF-26280-00-P2
REAR VIEW MIRROR ASSY (LEFT)
$271.66¢135 832
1
#20
2DF-2628N-00-00
BASE, MIRROR (LEFT)
$7.37¢3 686
1
#21
90109-06031-00
bolt
$2.10¢1 052
1
#22
2DF-26290-00-P2
REAR VIEW MIRROR ASSY (RIGHT)
$227.95¢113 976
1
#23
2DF-2628R-00-00
BASE, MIRROR (RIGHT)
$4.60¢2 300
1
#24
90109-06031-00
bolt
$2.10¢1 052
1
#25
2DF-2831W-00-00
STAY, MIRROR 1
$126.13¢63 066
1
#26
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#27
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
1
