ELECTRICAL 4

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

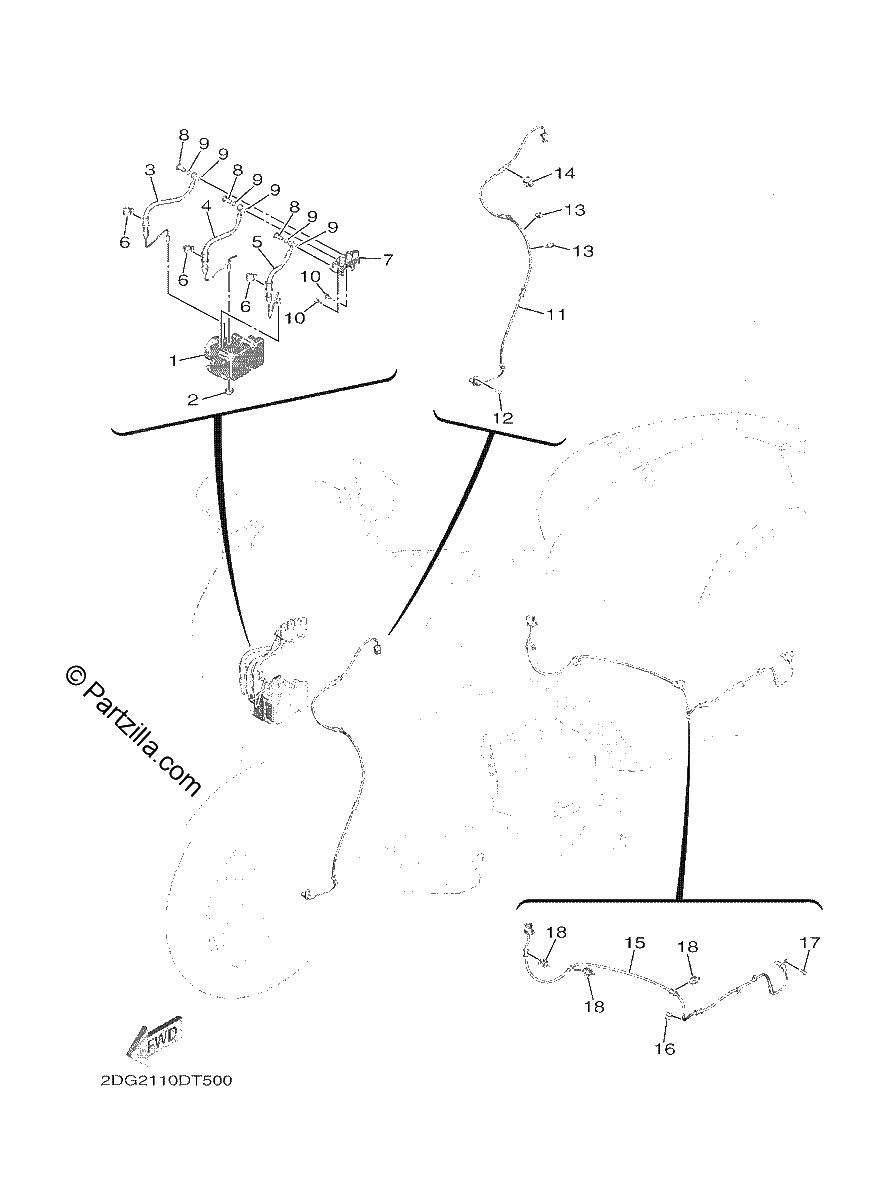

Diagrama de ELECTRICAL 4

Repuestos

#1
2DG-85930-09-00
HYDRAULIC UNIT ASSY
$1378.84¢689 419
1
#2
2CR-85916-00-00
CAP, DAMPER
$4.05¢2 024
1
#3
2DF-25882-00-00
PIPE, BRAKE 2
$54.50¢27 249
1
#4
2DF-2588A-00-00
PIPE, BRAKE 4
$54.18¢27 088
1
#5
2DF-25883-00-00
PIPE, BRAKE 3
$53.04¢26 519
1
#6
90464-16006-00
CLAMP
$9.12¢4 560
1
#7
2DF-25885-00-00
JOINT
$54.73¢27 364
1
#8
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#9
90430-10005-00
GASKET
$7.72¢3 858
1
#10
95D37-06014-00
BOLT, FLANGE DEEP RECESS
$0.38¢190
1
#11
2DF-85970-00-00
WHEEL SENSOR ASSY, FRONT
$147.26¢73 629
1
#12
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#13
90464-12013-00
Clamp
$7.21¢3 605
1
#14
90464-08011-00
CLAMP
$1.41¢707
1
#15
2DF-85980-00-00
WHEEL SENSOR ASSY, REAR
$215.83¢107 916
1
#16
90468-15139-00
Clip
$6.32¢3 162
1
#17
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#18
90464-10014-00
CLAMP
$2.02¢1 012
1
