COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

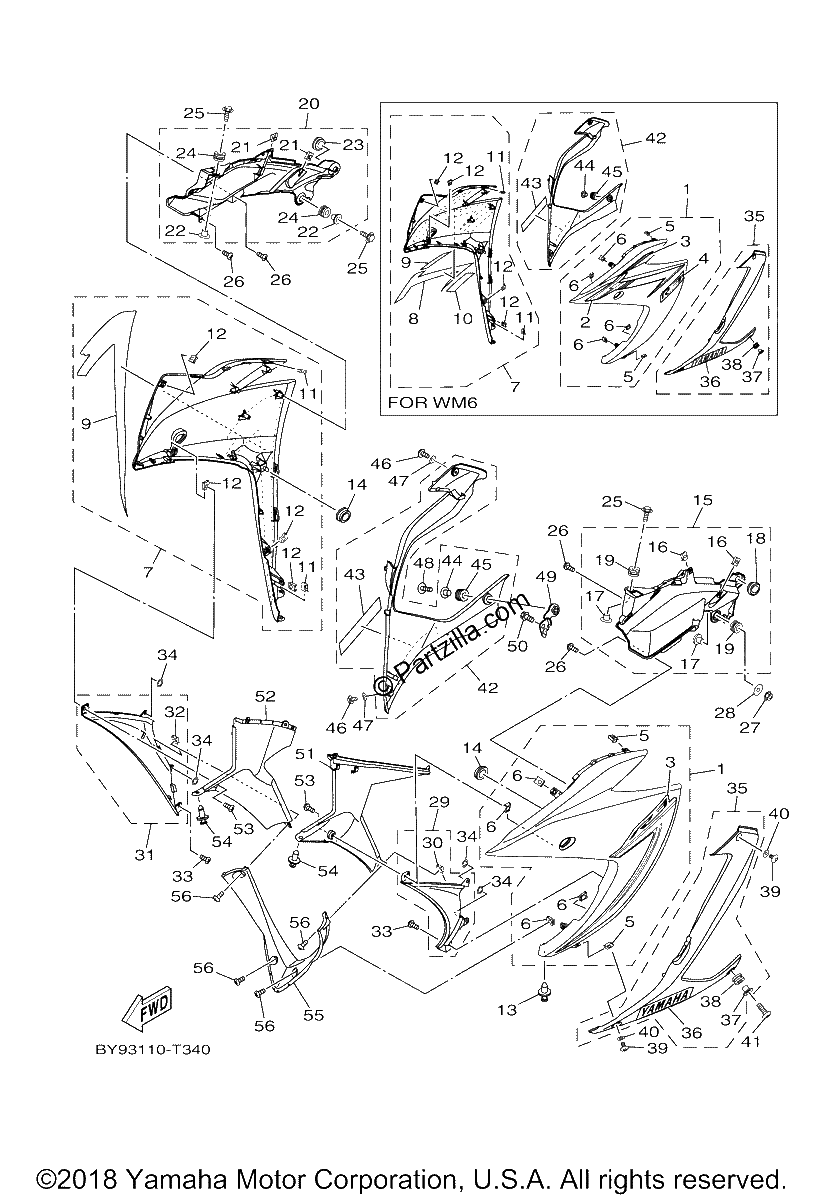

Diagrama de COWLING 1

Repuestos

#1
1WD-XF83L-D0-P2
BODY, FR. UNDER 1 SU
$112.47¢56 235
1
#1
1WD-XF83L-90-P0
BODY, FRONT UNDER 1 SUB ASSY
$199.80¢99 901
1
#2
1WD-F8393-F0-00
GRAPHIC 3
$11.56¢5 779
1
#3
BR5-F8398-00-00
. . GRAPHIC 5
$7.92¢3 962
1
#3
1WD-F8398-E0-00
GRAPHIC 5
$2.09¢1 047
1
#4
BR5-F83GA-00-00
GRAPHIC, 7
$2.30¢1 150
1
#5
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#6
90183-05042-00
NUT, SPRING
$1.15¢575
1
#7
1WD-XF83M-D0-P2
BODY, FR. UNDER 2 SU
$93.95¢46 978
1
#7
1WD-XF83M-90-P0
BODY, FRONT UNDER 2 SUB ASSY
$199.80¢99 901
1
#8
1WD-F8394-F0-00
GRAPHIC 4
$11.56¢5 779
1
#9
BR5-F8399-00-00
. GRAPHIC 6
$10.12¢5 060
1
#9
1WD-F8399-E0-00
GRAPHIC 6
$1.59¢793
1
#10
BR5-F83GA-00-00
GRAPHIC, 7
$2.30¢1 150
1
#11
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#12
90183-05042-00
NUT, SPRING
$1.15¢575
1
#13
90269-06081-00
RIVET
$6.23¢3 117
1
#14
90480-01558-00
Grommet
$4.31¢2 156
1
#15
1WD-XF11W-10-P0
COVER 7 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$40.76¢20 378
1
#16
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#17
90387-06899-00
COLLAR
$2.70¢1 351
1
#18
90480-01558-00
Grommet
$4.31¢2 156
1
#19
90480-12808-00
GROMMET
$2.71¢1 357
1
#20
1WD-XF11X-10-P0
COVER 8 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$44.98¢22 488
1
#21
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#22
90387-06899-00
COLLAR
$2.70¢1 351
1
#23
90480-01558-00
Grommet
$4.31¢2 156
1
#24
90480-12808-00
GROMMET
$2.71¢1 357
1
#25
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#26
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#27
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#28
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#29
1WD-XF835-00-P0
PANEL ASSY
$24.53¢12 265
1
#30
90183-05042-00
NUT, SPRING
$1.15¢575
1
#31
1WD-XF83B-00-P0
PANEL ASSY 2
$24.85¢12 426
1
#32
90183-05042-00
NUT, SPRING
$1.15¢575
1
#33
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#34
90183-06008-00
NUT,SPRING
$7.31¢3 657
1
#35
1WD-XF838-30-P0
UNDER COVER ASSY 1
$44.54¢22 270
1
#35
1WD-XF838-20-P0
UNDER COVER ASSY 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$44.54¢22 270
1
#36
1WD-F8328-70-00
EMBLEM
$3.07¢1 535
1
#36
1WD-F8328-30-00
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.01¢2 507
1
#37
90387-06899-00
COLLAR
$2.70¢1 351
1
#38
90480-12808-00
GROMMET
$2.71¢1 357
1
#39
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#40
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#41
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#42
1WD-XF839-30-P0
UNDER COVER ASSY 2
$45.33¢22 667
1
#42
1WD-XF839-20-P0
UNDER COVER ASSY 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$45.33¢22 667
1
#43
1WD-F8328-70-00
EMBLEM
$3.07¢1 535
1
#43
1WD-F8328-30-00
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.01¢2 507
1
#44
90387-06899-00
COLLAR
$2.70¢1 351
1
#45
90480-12808-00
GROMMET
$2.71¢1 357
1
#46
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#47
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#48
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#49
1WD-F833E-00-00
BRACKET 8
$12.55¢6 273
1
#50
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#51
1WD-F836K-00-00
PANEL, INNER 1
$6.55¢3 278
1
#52
1WD-F836L-00-00
PANEL, INNER 2
$6.69¢3 347
1
#53
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#54
90269-06081-00
RIVET
$6.23¢3 117
1
#55
1WD-F836M-00-00
PANEL, INNER 3
$41.00¢20 499
1
#56
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
