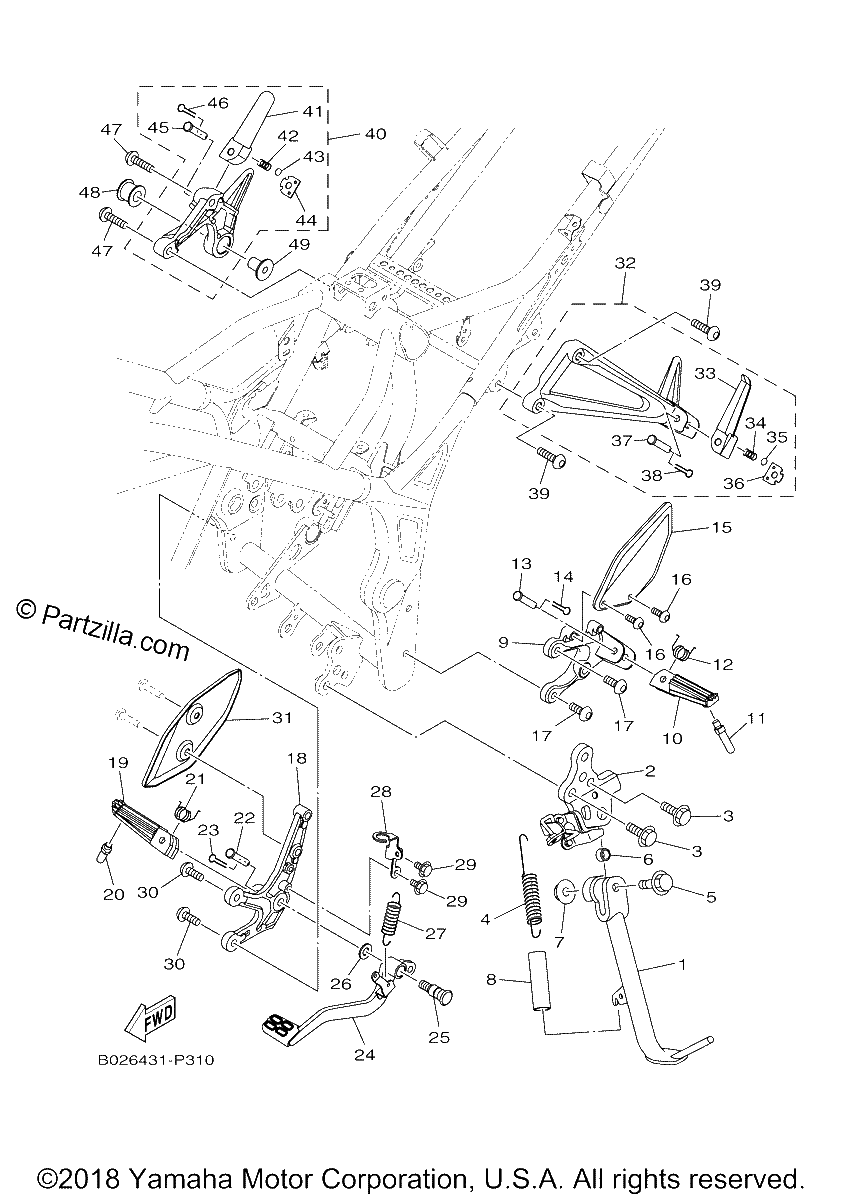

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$34.04¢17 019
#2
BRACKET, SIDE STAND
$101.24¢50 619
#3
BOLT, FLANGE
$7.34¢3 669
#4
SPRING, TENSION
$10.86¢5 431
#5
BOLT, FLANGE
$5.74¢2 869
#6
COLLAR
$5.69¢2 844
#7
NUT, U FLANGE
$2.73¢1 363
#8
HOSE (L95) (replaces 90445-217G3-00)
$8.24¢4 119
#9
BRACKET 2
$31.27¢15 638
#10
FOOTREST
$22.69¢11 344
#11
BOLT
$2.86¢1 431
#12
SPRING, TORSION
$3.30¢1 650
#13
PIN, CLEVIS
$3.74¢1 869
#14
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#15
PLATE 1
$61.46¢30 731
#16
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#17
BOLT
$2.26¢1 131
#18
BRACKET 3
$85.10¢42 550
#19
FOOTREST
$18.43¢9 213
#20
BOLT
$2.86¢1 431
#21
SPRING, TORSION
$3.30¢1 650
#22
PIN, CLEVIS
$3.74¢1 869
#23
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#24
PEDAL, BRAKE
$70.92¢35 463
#25
SHAFT
$14.50¢7 250
#26
WASHER, PLATE
$5.34¢2 669
#27
SPRING, TENSION
$4.63¢2 313
#28
STAY, STOP SWITCH
$3.79¢1 894
#29
BOLT,FLANGE (replaces 95802-06010-00)
$3.39¢1 694
#30
BOLT
$2.26¢1 131
#31
PLATE 2
$31.20¢15 600
#32
REAR FOOTREST ASSY 1
$68.99¢34 494
#33
. .FOOTREST, REAR 1
$22.14¢11 069
#34
SPRING, COMPRESSION
$3.81¢1 906
#35
BALL
$7.46¢3 731
#36
WASHER, SPECIAL
$1.10¢550
#37
PIN, CLEVIS
$3.74¢1 869
#38
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#39
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
#40
REAR FOOTREST ASSY 2
$89.53¢44 763
#41
. .FOOTREST, REAR 2
$14.06¢7 031
#42
SPRING, COMPRESSION
$3.81¢1 906
#43
BALL
$7.46¢3 731
#44
WASHER, SPECIAL
$1.10¢550
#45
PIN, CLEVIS
$3.74¢1 869
#46
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#47
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
#48
DAMPER, FOOTREST 2
$15.15¢7 575
#49
COLLAR
$6.59¢3 294
