FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

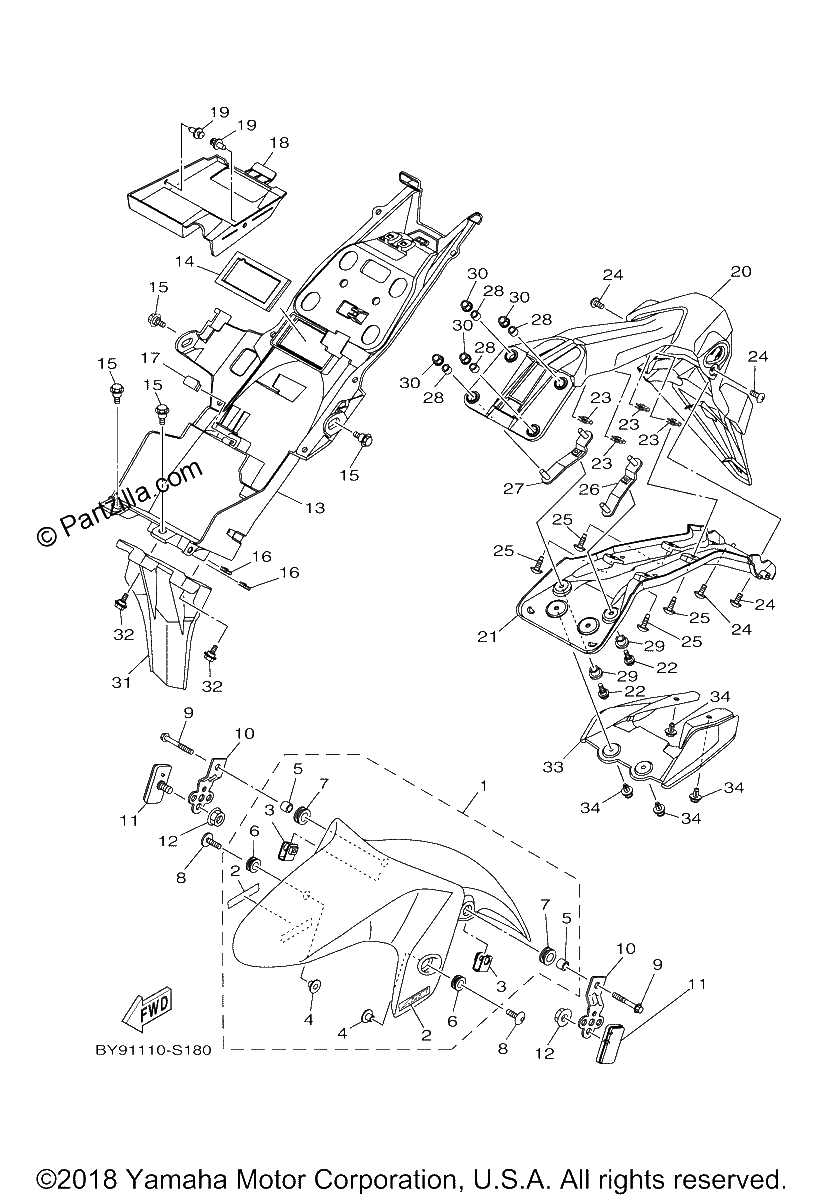

Diagrama de FENDER

Repuestos

#1
1WD-XF151-20-P4
FENDER, FRONT
$66.65¢33 325
1
#1
1WD-XF151-A0-P0
FENDER, FRONT
$26.06¢13 031
1
#2
2WD-F1569-90-00
GRAPHIC 1
$3.41¢1 706
1
#2
2WD-F1569-A0-00
GRAPHIC 1
$3.41¢1 706
1
#3
1WD-F1586-00-00
BRACKET
$1.29¢644
1
#4
90387-068C5-00
COLLAR
$2.71¢1 356
1
#5
90387-068L0-00
COLLAR
$2.60¢1 300
1
#6
90480-12815-00
GROMMET
$0.36¢181
1
#7
90480-15809-00
GROMMET
$2.03¢1 013
1
#8
90111-06137-00
BOLT,HEX. SOCKET BUTTON
$5.69¢2 844
1
#9
95027-06045-00
BOLT, SMALL FLANGE
$2.95¢1 475
1
#10
1WD-F113J-00-00
BRACKET, REFLECTOR 1
$4.55¢2 275
1
#11
8GM-85110-00-00
REFLECTOR ASSY
$14.18¢7 088
1
#12
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#13
1WD-F1611-02-00
FENDER, REAR (replaces 1WD-F1611-01-00)
$53.45¢26 725
1
#14
1WD-F1669-00-00
SEAL
$3.41¢1 706
1
#15
90109-063F1-00
BOLT
$2.74¢1 369
1
#16
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#17
1WD-F16A2-00-00
SEAL, 2
$1.29¢644
1
#18
1WD-F163E-00-00
COVER, REAR FENDER 2
$12.24¢6 119
1
#19
90269-06081-00
RIVET
$6.78¢3 388
1
#20
1WD-F1629-01-00
GUARD, MUD
$33.22¢16 612
1
#21
1WD-F1617-00-00
BRACKET, FENDER
$17.35¢8 675
1
#22
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#23
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#24
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#25
90111-05018-00
BOLT, HEX. SOCKET BUTTON
$7.03¢3 513
1
#26
1WD-F1688-00-00
BRACKET, REAR STAY
$7.95¢3 975
1
#27
1WD-F1689-00-00
BRACKET, REAR STAY 2
$28.75¢14 375
1
#28
90387-07573-00
COLLAR
$8.89¢4 444
1
#29
90387-068L9-00
COLLAR
$2.82¢1 412
1
#30
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#31
1WD-F1621-00-00
FLAP
$4.63¢2 313
1
#32
90109-05003-00
BOLT
$6.40¢3 200
1
#33
1WD-F163A-00-00
COVER, REAR FENDER 1
$5.00¢2 500
1
#34
90269-06081-00
RIVET
$6.78¢3 388
1
